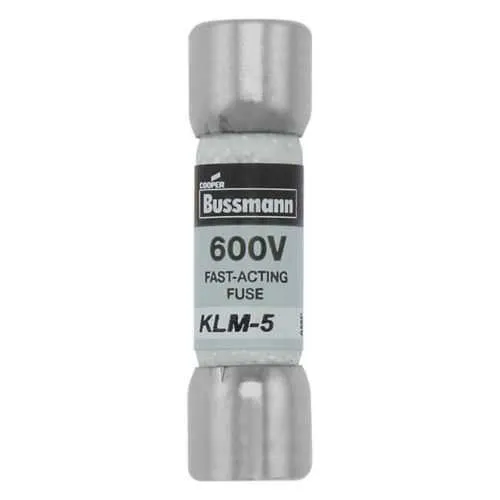

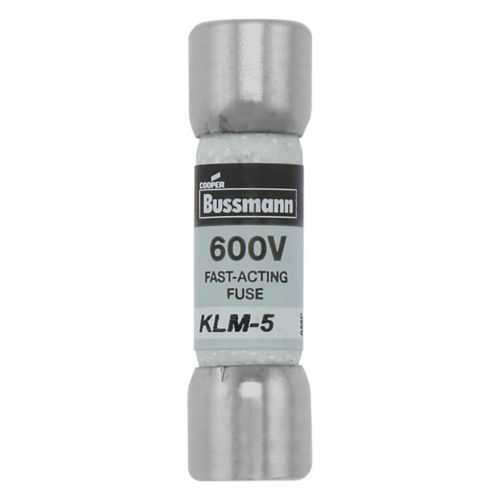

Eaton KLM-5 Fuse - 5 A, 100 kAIC @ 600 VAC
Part Number: KLM-5
Quick Summary
The Eaton KLM-5 fuse provides fast-acting overcurrent protection for low-voltage power distribution and control panels. Engineers often battle nuisance trips and misselection that stall line upgrades. This device is CE marked and RoHS compliant, ensuring regulatory alignment for European projects and green initiatives. With 600 Vac/600 Vdc ratings and a high interrupt capability, it supports reliable protection across control panels, motors, and feeders. Choosing KLM-5 can reduce downtime and simplify procurement thanks to ferrule-end connections and the trusted Bussmann legacy, delivering predictable performance, traceable quality, and a clear path to compliant automation in modern industrial environments.
Product Information
Extended Description
KLM-5 Eaton: Eaton Bussmann series KLM fuse, 5 A, Non-indicating, Ferrule end x ferrule end, 50 kAIC at 600 Vdc, 100 kAIC at 600 V, Melamine tube, Nickel-plated bronze endcap, 600 V, 600 Vdc
Product Name
Eaton Bussmann series KLM fuse
Catalog Number
KLM-5
UPC
051712695121
EAN
5027590445429
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
5 A
Interrupt rating
100 kAIC at 600 Vac 50 kAIC at 600 Vdc
Voltage rating
600 Vac, 600 Vdc
Material
Nickel-plated bronze endcap Melamine tube
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Indicating
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KLM-5
KLM-5~LIMITRON FAST ACTING FUSE
Datasheet - FNQ-30
Feature: 5 A fast-acting rating delivers precise overcurrent protection. This reduces circuit damage and downtime by swiftly isolating faults. Applications include control panels, PLCs, and motor starters where rapid response matters. Feature: 600 Vac/600 Vdc rating provides cross-environment compatibility, simplifying parts stocking and reducing design risk for mixed AC/DC systems in automated lines. Feature: Ferrule end x ferrule end connections enable secure terminations with standard terminal blocks, cutting field wiring time and minimizing connection errors. Feature: Nickel-plated bronze endcaps and a melamine tube offer rugged durability in vibration-prone environments, extending service life in manufacturing settings. Feature: CE Marked RoHS Compliant ensures regulatory alignment for European deployments and sustainability goals. Feature: Compact Bussmann series lineage supports consistent parts availability and predictable maintenance across plants.
Get a Quick Quote for a Eaton KLM-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KLM-5?
Enquire Now
FAQs
The KLM-5 uses ferrule-end x ferrule-end terminations, allowing direct mating with standard ferrule-style terminals. This simplifies panel wiring, reduces installation time, and minimizes the risk of loose connections that can cause arcing or nuisance trips in high-current circuits.
KLM-5 is rated 5 A with 600 Vac and 600 Vdc voltage ratings, and it provides 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc. These values define fault current handling, selective coordination, and safe disconnection in industrial power distribution and control circuits.
Yes, the KLM-5 carries CE marking and RoHS compliance, aligning with European directives for electrical safety and restricted substances. This supports regulatory approval, green manufacturing practices, and easy sourcing within compliant automation projects.
Ideal for control panels, motor starters, and power distribution blocks in automation lines. Its fast-acting 5 A fuse protects sensitive electronics while allowing rapid fault isolation, reducing downtime and facilitating predictable maintenance schedules.
Follow datasheet guidelines for ferrule-terminal wiring, ensure correct amperage rating for the circuit, and replace after a fault event. The device’s non-indicating design avoids false status signals, while the rugged nickel-plated endcaps and melamine tube endure industrial environments.
