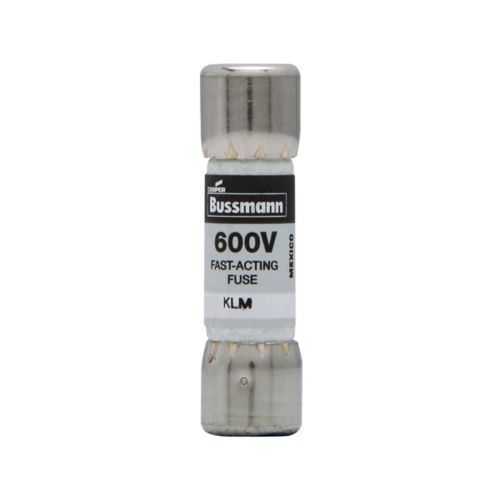

Eaton KLM-7 Fuse - 50 kAIC at 600 Vdc
Part Number: KLM-7
Quick Summary
KLM-7 fuse provides fast-acting DC protection for control circuits and photovoltaic installations. Engineers often struggle to protect DC control lines while meeting 600 V ratings without frequent nuisance trips. CE Marked and RoHS Compliant, this device supports regulatory alignment and streamlined supplier qualification. Its 7 A rating and high interrupt capability offer reliable protection in industrial power layouts, while durable construction—nickel-plated endcaps and a melamine tube—facilitates long-term service in harsh environments. For panel builders and OEMs, the KLM-7 simplifies sourcing across DC control and PV applications, delivering consistent performance and lower total cost of ownership.
Product Information
Extended Description
KLM-7 Eaton: Eaton Bussmann series KLM fuse, DC Control circuits, DC photovoltaic systems, 7 A, Non-indicating, 50 kAIC at 600 Vdc, 100 kAIC at 600 Vac, Nickel-plated bronze endcap, Melamine tube, Standard, 600 V, 600 Vdc
Product Name
Eaton Bussmann series KLM fuse
Catalog Number
KLM-7
UPC
051712403818
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
7 A
Interrupt rating
50 kAIC at 600 Vdc 100 kAIC at 600 Vac
Voltage rating
600 Vac, 600 Vdc
Material
Melamine tube Nickel-plated bronze endcap
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KLM-7
Feature: 7 A amperage rating and dual voltage capability (600 Vdc / 600 Vac) -> Business Impact: Provides targeted protection for DC control circuits and AC interfaces with a single device, reducing nuisance trips and enabling stable equipment operation; Application: DC control panels and PV system wiring. Feature: High interrupt ratings of 50 kAIC at 600 Vdc and 100 kAIC at 600 Vac -> Business Impact: Superior fault current handling preserves drives and inverters, lowering risk of cascading failures; Application: inverters, power distribution and ESS interfaces. Feature: Melamine tube with nickel-plated bronze endcaps -> Business Impact: Robust, corrosion-resistant termination supports reliable connections and long panel life; Application: industrial control panels subjected to vibration and contamination. Feature: Non-indicating, standard-packaged fuse -> Business Impact: Simplifies maintenance and replacement in high-availability environments; Application: field service and OEM panel builds. Feature: CE Marking and RoHS compliance -> Business Impact: Regulatory compliance and easier procurement across EU markets; Application: multinational deployments and compliant equipment fleets. Feature: Compact, standard form factor with standard packaging -> Business Impact: Fast installation, compatibility with existing panel cutouts and busbar layouts; Application: retrofit projects and new builds alike.
Get a Quick Quote for a Eaton KLM-7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KLM-7?
Enquire Now
FAQs
The KLM-7 is a 7 A fuse rated for 600 V in both DC and AC applications, making it suitable for DC control circuits and PV string protection. Its high interrupt rating ensures robust fault current handling, while its non-indicating design simplifies replacement in standard control panels.
KLM-7 provides 50 kAIC at 600 Vdc and 100 kAIC at 600 Vac, enabling effective interruption of high-energy faults in DC control lines and AC interfaces. This protects transformers, inverters, and drives from catastrophic damage and reduces downstream downtime.
Yes. The KLM-7 carries CE marking and RoHS compliance, ensuring regulatory alignment for EU markets and support for eco-friendly, restricted-substance policies in industrial procurement.
Install in standard panel cutouts using the melamine tube with nickel-plated bronze endcaps for robust terminations. The fuse is non-indicating and ships in standard packaging, enabling quick replacement during maintenance without special tools.
Choosing the KLM-7 enables reliable protection of DC control circuits with high fault current tolerance, regulatory compliance, and simplified sourcing. This translates to reduced mean time to repair, lower risk of inverter damage, and a lower total cost of ownership in PV and industrial automation deployments.
