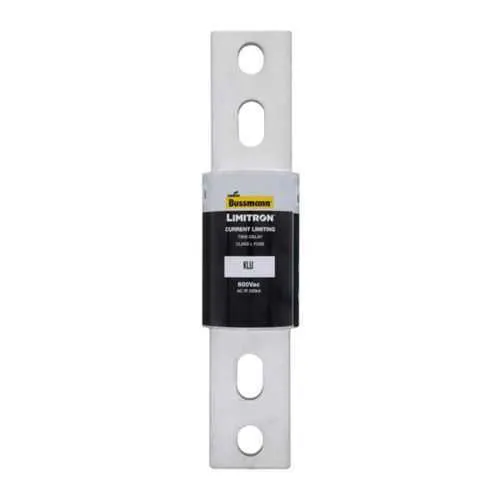

Eaton KLU-1200 Fuse - Class L, 200 kAIC at 600 V
Part Number: KLU-1200
Quick Summary
The Eaton KLU-1200 fuse provides fast-acting overcurrent protection for industrial power circuits. Designers often struggle to balance rapid fault isolation with system selectivity, risking nuisance trips in complex electrical networks. This Class L fuse is RoHS compliant and CE marked, with a 200 kAIC interrupt rating at 600 V, supporting worldwide deployment. With bolt-on mounting and bolted blade-end connections, it enables fast, secure installations and reliable protection. In addition to safeguarding critical equipment, it helps reduce downtime while meeting regulatory and safety requirements for motor feeders and power distribution panels.
Product Information
Extended Description
KLU-1200 Eaton: Eaton Bussmann Series Class L fuse, KLU, fast-acting, current limiting fuse, 1200 A, bladable fuse, interrupting rating of 200 kA, 600 Vac
Product Name
Eaton Bussmann series KLU fuse
Catalog Number
KLU-1200
UPC
051712135078
Product Length/Depth
10.75 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
4.25 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Amperage Rating
1200 A
Interrupt rating
200 kAIC at 600 Vac
Response time
5 sec at 500%
Voltage rating
600 V
Packaging type
Standard
Class
Class L
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Mounting method
Bolt
Quantity
1
Special features
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KLU Class L fuse data sheet No. 1013
Feature Fast-acting Class L current-limiting design delivers rapid fault isolation, capping fault energy and protecting downstream equipment. The business impact is reduced arc damage, extended component life, and smoother coordination with upstream protective devices. Typical applications include motor feeders, power distribution panels, and large-capacity loads in industrial facilities, where fast clearing is essential for uptime. Feature 200 kAIC interrupt rating at 600 V provides robust fault clearance for high-current events. The impact is less equipment damage and improved safety margins in DC and AC circuits, enabling tighter protection coordination. Applications include large drives and feeders that require high fault current withstand while limiting downstream disruption. Feature Bolted blade-end connections with bolt mounting simplify installation and ensure secure, vibration-resistant terminations. The business impact is reduced labor time and fewer mis-wiring incidents during replacements. It fits standard Bussmann KLU devices and is compatible with bolted blade end assemblies typical in panel boards. Feature RoHS compliance and CE marking support global deployment and regulatory alignment. The impact: fewer compliance bottlenecks in multinational projects and easier supplier qualification. The fuse is designed as Class L, current-limiting, and matches datasheet No. 1013 for reference. Feature Comprehensive documentation and compatibility resources, including catalogs and the Bussmann data sheet and UPC, support efficient specification and procurement. It ships as a standard-pack item with dimensions 10.75 in length, 2.5 in width, 2.5 in height and weight of 4.25 lb, delivering predictable lead times and easy stock management.
Get a Quick Quote for a Eaton KLU-1200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KLU-1200?
Enquire Now
FAQs
Install using the bolt mounting method and ensure the blade-end terminations align with the corresponding bus bars in the panel. Tighten to the manufacturer’s torque specification, verify clean contact surfaces, and secure the fuse to prevent loosening due to vibration. The bolted blade-end design supports robust, high-current connections and simplifies replacement without rewiring.
The KLU-1200 is rated for 1200 A with a 600 V voltage rating and provides a 200 kAIC interrupt rating. It is a fast-acting, current-limiting Class L fuse with a response time of 5 seconds at 500% overload, offering rapid fault clearance and protection for sensitive downstream equipment.
Yes. Designed for motor feeders and power distribution panels, the KLU-1200 combines fast-acting protection with high fault-current withstand. Its current-limiting behavior helps prevent downstream damage and supports selective coordination with upstream protection devices, improving uptime in motor-driven applications.
The KLU-1200 is RoHS Compliant and CE Marked, facilitating global deployment and regulatory compliance across manufacturing sites. For detailed documentation and standards mapping, refer to the Bussmann catalogs and the RoHS search tools provided by Eaton.
Refer to the Bussmann Full Line Catalog and the Bussmann series KLU data sheet No. 1013 for authoritative specifications. The UPC is 051712135078, and the catalog numbers and technical data are also available in the Eaton/Fuseology resources and on the product page linked with the model KLU-1200.
