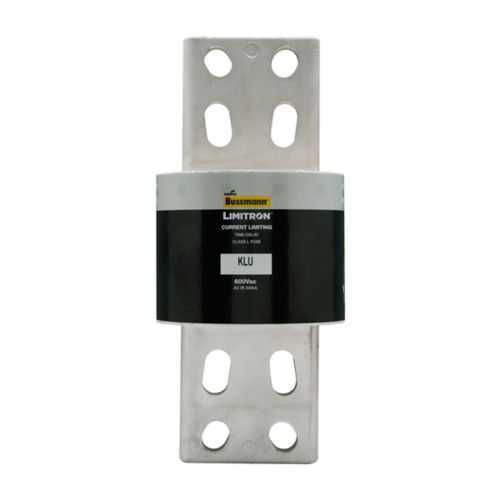

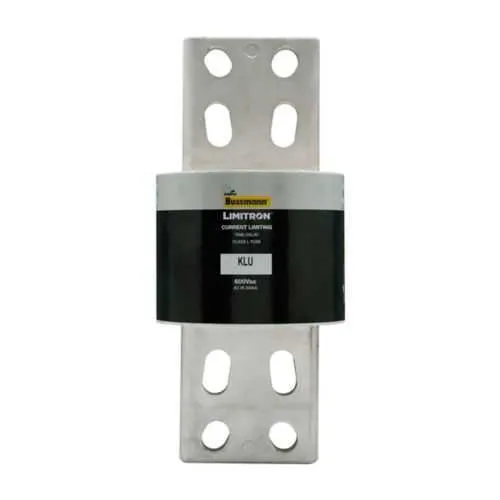

Eaton KLU-2500 Fuse - Class L, 200 kAIC @ 600 Vac
Part Number: KLU-2500
Quick Summary
Eaton KLU-2500 fuse delivers fast-acting, current-limiting protection for large motor feeders and power distribution panels. Engineers often contend with nuisance trips and slow fault isolation that drive downtime; this fuse minimizes that risk with rapid interruption and reliable performance. It carries CE marking and RoHS compliance, and its Class L design enables selective coordination in high-current systems, reducing equipment stress and unplanned outages. Designed for 600 V and 2500 A, with an interrupt rating of 200 kAIC, bolted blade ends, and a compact 5 in length, it aligns with Bussmann standards for easy installation and lifecycle protection. This combination supports safe, compliant protection across industrial applications while helping lower total cost of ownership.
Product Information
Extended Description
KLU-2500 Eaton: Eaton Bussmann Series Class L fuse, KLU, fast-acting, current limiting fuse, 2500 A, bladable fuse, interrupting rating of 200 kA, 600 Vac
Product Name
Eaton Bussmann series KLU fuse
Catalog Number
KLU-2500
UPC
051712497022
Product Length/Depth
5 in
Product Height
1.75 in
Product Width
5 in
Product Weight
15.95 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
2500 A
Interrupt rating
200 kAIC at 600 Vac
Response time
5 sec at 500%
Voltage rating
600 V
Packaging type
Standard
Class
Class L
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Mounting method
Bolt
Quantity
1
Special features
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KLU Class L fuse data sheet No. 1013
Feature: High amperage rating of 2500 A with a 200 kAIC interrupt rating at 600 V. Business impact: Enables protection of high‑fault-current circuits without nuisance blowing or nuisance tripping, reducing equipment damage and downtime. Application: Large motor feeders and power distribution panels in manufacturing and processing facilities. Feature: Fast-acting, current-limiting Class L design. Business impact: Limits arc energy and fuse response time, improving safety and safeguarding surrounding equipment. Application: Switchgear and control panels where selective coordination is critical. Feature: Bolted blade end x bolted blade end connections. Business impact: Secure mounting and reliable electrical contact, simplifying installation and reducing maintenance time. Application: Industrial enclosures and panel boards, where robust mechanical stability is essential. Feature: Compact 5 in length with 1.75 in height and 5 in width. Business impact: Fits standard fuse blocks with minimal space impact, enabling easy retrofits and streamlined wiring. Application: Retrofit projects and new installations in compact control architectures. Feature: CE Marked and RoHS compliant. Business impact: Ensures regulatory compliance for global deployments and supply chain reliability. Application: Export-ready protection across EU/RoHS-constrained environments. Feature: Non-indicating fuse indicator. Business impact: Reduces visual maintenance requirements; encourages integration with remote monitoring solutions. Application: Systems using condition monitoring or digital dashboards for fuse status. Feature: Bolt mounting method for secure installation. Business impact: Fast, vibration-resistant mounting with predictable torque and long-term reliability. Application: High-vibration environments such as conveyors and packaging lines.
Get a Quick Quote for a Eaton KLU-2500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KLU-2500?
Enquire Now
FAQs
The KLU-2500 uses bolted blade end connections, requiring secure mounting in a compatible fuse block or switchgear. Verify Service Voltage is 600 V, ensure the panel supports Class L fuses, and tighten connections to the manufacturer’s torque recommendations. Use proper PPE and follow lockout/tagout procedures before servicing.
Yes. The KLU-2500 features bolted blade end connections and a 5 in body designed to integrate with typical Bussmann series protection schemes. It is suited for high-current motor feeders and power distribution panels, enabling straightforward substitution in compatible Class L fuse blocks without extensive rewiring.
A 200 kAIC interrupt rating means the fuse can safely interrupt high fault currents without catastrophic failure, protecting downstream equipment and reducing arc energy exposure. This is crucial for large motors and high‑current feeders, where fault currents can exceed standard protective devices and downtime costs rise quickly.
Yes. The KLU-2500 is CE marked and RoHS compliant, ensuring conformity with European regulatory standards and restricted substance requirements. This makes it suitable for global installations, lowering compliance risk and supporting international procurement strategies.
Since the KLU-2500 is non-indicating, plan for periodic status checks or integrate it with remote condition monitoring to track fuse health. Pairing with a sensor-enabled panel, log analytics can alert maintenance teams to fault events, enabling proactive replacements and minimizing unplanned downtime.
