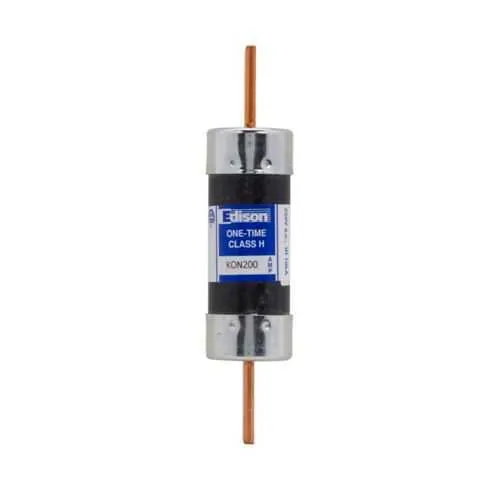

Eaton KON200 Fuse - Class K5, 10 kAIC
Part Number: KON200
Quick Summary
KON200 fuse from Eaton Edison provides reliable overcurrent protection for electrical panels and motor circuits. In demanding environments, engineers often struggle to balance fast fault clearing with nuisance tripping. This device offers CE Marked compliance and CSA Certification, built as a Class K5 non-indicating fuse with a 10 kAIC interrupt rating to ensure safe, selective protection. With a robust 200 A rating and standard packaging, KON200 simplifies procurement, installation, and long-term maintenance for industrial protection needs, delivering both safety and cost efficiency while supporting scalable panel designs and easier stocking of replacement parts.
Product Information
Extended Description
KON200 Eaton: Eaton Edison KON fuse, Knife blade, 200 A, Class K5, Non-indicating, 10 kAIC, Standard, 1, 250 V
Product Name
Eaton Edison KON fuse
Catalog Number
KON200
UPC
782634362005
Product Length/Depth
7 in
Product Height
1 in
Product Width
1 in
Product Weight
0.72 lb
Warranty
No warranty
Compliances
CE Marked
Certifications
Not Applicable CSA Certified
Amperage Rating
200 A
Interrupt rating
10 kAIC
Voltage rating
250 V
Packaging type
Standard
Class
Class K5
Fuse indicator
Non-indicating
Quantity
1
Special features
Non-indicating
Feature → Business Impact → Application: The KON200 provides 200 A current handling with a 10 kAIC interrupt rating and a 250 V rating, delivering robust protection for feeders and motors while minimizing fault duration. This translates to reduced arc exposure, lower downtime, and improved panel reliability in industrial environments where uptime is critical and demand surges are common. Application-wise, it suits main line protection in electrical panels and motor control centers, ensuring fast isolation of faults without compromising system availability. Feature → Business Impact → Application: Knife blade fuse design enables quick, secure installation and reliable contact with minimal recalibration or tool requirements, reducing commissioning time and maintenance Labor Costs. This is ideal for retrofit projects and OEM panel builds where ease of replacement is a priority. Feature → Business Impact → Application: Class K5 with non-indicating behavior provides selective coordination without the need for visual indication, lowering maintenance complexity and reducing nuisance alerts. It’s well-suited for control panels where fault history is monitored elsewhere, enabling lean operations and faster diagnostics. Feature → Business Impact → Application: Standard packaging and quantity of one unit per package streamline procurement and inventory control, improving lead times for spares and simplifying cross-site replacement strategies in global manufacturing networks. Feature → Business Impact → Application: Compliance with CE Marked and CSA Certified standards supports cross-regional installations and regulatory adherence, aiding procurement teams to meet regional electrical safety requirements while maintaining consistent protection characteristics across sites.
Get a Quick Quote for a Eaton KON200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KON200?
Enquire Now
FAQs
The KON200 is a 200 A knife blade fuse designed for standard panel protection in industrial control environments. It installs as a plug-in device with a knife blade contact, enabling straightforward field replacements and quick retrofits. For compatibility, verify panel clearance, bus bar spacing, and the 250 V rating to ensure safe insertion, and follow Eaton’s specification sheet for torque values and proper seating to avoid contact resistance.
Key specs include a 200 A amperage rating, 10 kAIC interrupt rating, and a 250 V voltage rating. This combination provides fast fault clearing for high-load circuits while tolerating brief overcurrents typical in motor starts. The 10 kAIC rating minimizes arcing damage at the point of isolation, supporting reliable protection for feeders and heavy-duty loads in industrial environments.
Yes. The KON200’s Class K5 design and high interrupt rating make it suitable for motor protection in panels where short-circuit events must be isolated quickly without unnecessary interruptions. Its non-indicating design reduces maintenance channels, while its compact knife blade form simplifies retrofits in existing motor control centers and panel boards.
KON200 carries CE Marked compliance and CSA Certification, aligning with European and North American safety and performance requirements. This supports regulatory approvals for cross-border installations and helps procurement teams meet regional compliance mandates while maintaining consistent protection characteristics across sites.
With a 200 A rating and a robust 10 kAIC interrupt level, KON200 offers reliable protection with reduced maintenance intervals compared to lower-rated devices. The non-indicating design minimizes visual checks, while standard packaging and one-unit quantity per package simplify stocking and replacements. Overall, this can lower total cost of ownership by reducing downtime and spare parts complexity.
