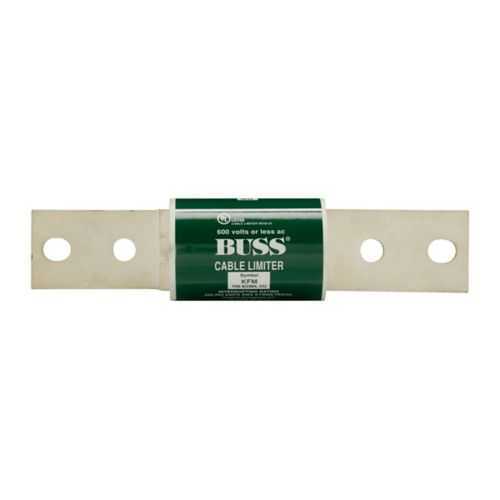

Eaton KPF cable limiter - 200 kAIC
Part Number: KPF
Quick Summary
KPF cable limiter from Eaton protects bus bars in high-energy electrical systems by interrupting fault currents. Engineers often struggle with reliable fault isolation that avoids nuisance trips while keeping downtime to a minimum. This RoHS compliant device delivers confidence through a robust 200 kAIC interrupt rating at 600 V, aligning with safety and regulatory expectations. By design, the KPF integrates with copper or aluminum cables and fits standard panel footprints, supporting streamlined procurement and consistent protection across distributed power architectures. The result is a dependable, scalable solution for modern electrical installations that require fast fault clearance and cost-effective maintenance.
Product Information
Extended Description
KPF Eaton: Eaton Bussmann series KPF cable limiter, 200 kAIC at 600 Vac, Center bolt end X offset bolted end, Cable: copper or aluminum, 1.44 inch, 4/0 AWG, Non indicating
Product Name
Eaton Bussmann series KPF cable limiter
Catalog Number
KPF
UPC
051712178266
Product Length/Depth
2.5 in
Product Height
1.75 in
Product Width
2.75 in
Product Weight
4.25 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Material
Cable: Copper or Aluminum
Wire size
#4/0 AWG
Connection
Center bolt end x offset bolted end
Fuse indicator
Non-indicating
KPF~BUSS CABLE LIMITER
KPF~BUSS CABLE LIMITER
Bussmann series Fuseology
Eaton Specification Sheet - KPF
Feature: High interrupt rating of 200 kAIC at 600 Vac provides strong fault current limiting. Business impact: Protects downstream equipment, reduces damage risk, and minimizes downtime during faults. Application: Suitable for high-energy feeders and switchgear in industrial facilities. Feature: Cable compatibility with copper or aluminum conductors and wire size #4/0 AWG offers installation flexibility. Business impact: Supports diverse supply configurations and simplifies stocking with a single limiter across multiple circuits. Application: Panel builds and service entrances with mixed conductor types. Feature: Compact dimensions (2.5 in depth, 2.75 in width, 1.75 in height) and 4.25 lb weight enable easy panel integration. Business impact: Maximizes usable space and reduces installation time in crowded electrical enclosures. Application: Retrofit and new-build control panels in manufacturing environments. Feature: Center bolt end x offset bolted end connection provides versatile mounting options. Business impact: Improves alignment with existing busbar assemblies and reduces field modification costs. Application: Stationary installations where physical layout dictates connector geometry. Feature: Non-indicating fuse indicator reduces visual maintenance tasks and panel wiring complexity. Business impact: Lowers ongoing monitoring requirements and enhances reliability in quiet or remote installations. Application: Control rooms and remote substations where centralized status monitoring is preferred.
Get a Quick Quote for a Eaton KPF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KPF?
Enquire Now
FAQs
The KPF cable limiter is a high-current protection device designed to limit fault currents in medium-to-large power distribution circuits. It accommodates Cu or Al conductors up to #4/0 AWG, rated at 600 V with a 200 kAIC interrupt capacity, making it suitable for switchgear, panels, and feeder protection in industrial settings.
The KPF supports copper or aluminum cables with a maximum size of #4/0 AWG. This flexibility allows engineers to standardize on a single protection device across mixed conductor types in a facility, reducing stocking requirements and simplifying installation in existing panels.
The KPF is rated for 600 V and provides a 200 kAIC interrupt rating. These ratings ensure rapid fault clearance for high-energy circuits while maintaining compatible protection within typical industrial switchgear and panel assemblies.
Yes, the KPF is RoHS compliant, aligning with environmental and regulatory standards. This helps ensure safer material usage and easier compliance in regulated facilities without sacrificing performance in high-energy applications.
Install using the center bolt end and offset bolted end configuration to match your busbar geometry. The device features a compact footprint (2.5 in depth x 2.75 in width x 1.75 in height) and a non-indicating status, which simplifies mounting in crowded enclosures and allows status monitoring to remain centralized elsewhere.
