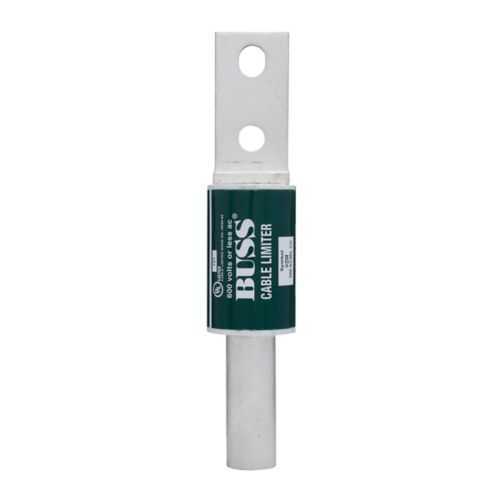

Eaton KQV Cable Limiter - 200 kAIC at 600 Vac
Part Number: KQV
Quick Summary
Eaton KQV cable limiter provides reliable fault-current protection for 600 V electrical feeders and power distribution panels. Engineers frequently contend with high fault currents that can damage equipment and trigger costly downtime; the KQV helps mitigate these risks with a robust 200 kAIC interrupt rating. RoHS compliant design, copper 12 AWG conductors, and a tubular end x offset bolted end configuration support fast, secure installations. Its compact footprint and predictable performance simplify cabinet planning and scale protection across multiple feeders. As part of Eaton’s Bussmann series, KQV delivers proven compatibility with existing protection schemes and streamlined procurement for industrial facilities.
Product Information
Extended Description
KQV Eaton: Eaton Bussmann series KQV cable limiter, 200 kAIC at 600 Vac, Tubular end X offset bolted end, Cable: copper, 12 AWG, Non indicating
Product Name
Eaton Bussmann series KQV cable limiter
Catalog Number
KQV
UPC
051712178303
Product Length/Depth
1.63 in
Product Height
9.25 in
Product Width
2.21 in
Product Weight
1.9 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Material
Cable: Copper
Wire size
#12 AWG
Connection
Tubular end x offset bolted end
Fuse indicator
Non-indicating
KQV~BUSS CABLE LIMITER
KQV~BUSS CABLE LIMITER
Bussmann series Fuseology
Eaton Specification Sheet - KQV
Feature: 200 kAIC interrupt rating at 600 Vac. Business Impact: Enables rapid fault-current interruption, protecting feeders and transformers from catastrophic damage, reducing downtime and replacement costs. Application: Suitable for 600 V distribution panels and switchgear assemblies in industrial plants. Feature: Copper conductors sized #12 AWG. Business Impact: Ensures low resistance and durable current carrying capacity, delivering consistent protection across standard copper wiring runs. Application: Ideal for copper feeders in control cabinets and power distribution enclosures. Feature: Tubular end x offset bolted end connection. Business Impact: Simple mounting with secure fastening, minimizing installation time and wiring errors. Application: Facilitates field retrofits and clean integration with existing Bussmann protection devices. Feature: RoHS Compliant. Business Impact: Supports global regulatory compliance and easier cross-border sourcing. Application: Suitable for facilities with stringent material restrictions. Feature: Non-indicating fuse indicator. Business Impact: Reduces field maintenance and visual clutter while relying on upstream protection indicators. Application: Fits systems with centralized monitoring and clear protection coordination. Feature: Compact footprint (1.63 in depth × 2.21 in width) and weight (1.9 lb). Business Impact: Enables efficient cabinet layout and scalable deployment without space penalties. Application: Ideal for dense switchgear and panelboard installations.
Get a Quick Quote for a Eaton KQV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KQV?
Enquire Now
FAQs
To install the KQV, verify the system voltage is 600 V and the conductor is 12 AWG copper. Attach the tubular end to the corresponding terminal and secure the offset bolted end with the appropriate hardware. Ensure alignment and tighten fittings per the manufacturer datasheet to maintain the 200 kAIC protection rating during fault conditions.
Key specs include a 200 kAIC interrupt rating at 600 Vac, voltage rating of 600 V, and copper conductors #12 AWG. Dimensions are 1.63 in depth, 9.25 in height, 2.21 in width, with a weight of 1.9 lb. It is RoHS compliant and non-indicating, aligning with Bussmann protection standards.
Yes. The KQV cable limiter is designed for 600 V distribution panels, switchgear, and feeders. Its high interrupt rating, copper wiring, and secure end connections support reliable protection in control cabinets and power distribution enclosures typical of industrial facilities.
The KQV is RoHS compliant, which helps meet global restricted-substance requirements. The data provided does not list additional certifications, so users should consult Eaton documentation or contact a representative to confirm any region-specific standards beyond RoHS for their application.
The KQV’s non-indicating design reduces field maintenance while delivering high fault-current protection, minimizing downtime costs. Its robust 200 kAIC rating lowers risk of equipment damage and extends component life. Standardization within the Bussmann family simplifies spares, procurement, and maintenance planning across multiple enclosures.
