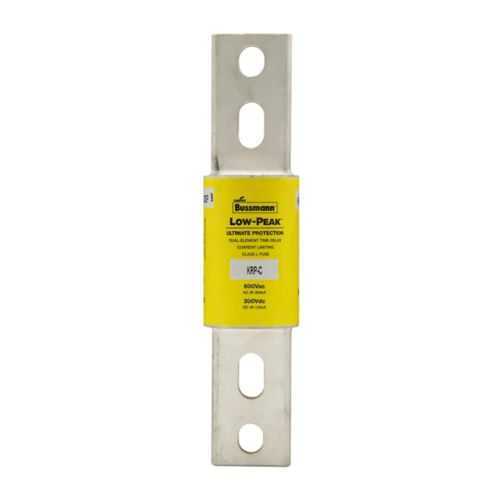

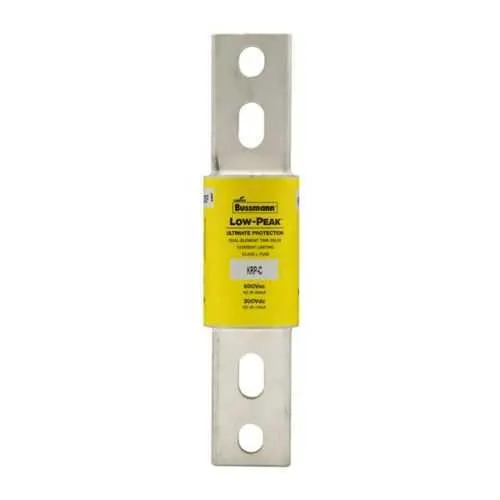

Eaton KRP-C-1100SP Fuse - 300 kAIC at 600 Vac
Part Number: KRP-C-1100SP
Quick Summary
The KRP-C-1100SP fuse from Eaton Bussmann protects industrial power circuits with time-delay, current-limiting performance. Engineers often wrestle with nuisance trips during inrush events or undersized interrupt ratings that threaten machine uptime. This Class L device is CE marked and RoHS compliant, designed for bolted blade end installations and broad AC/DC compatibility. Its compact form and Bussmann series pedigree translate into easier panel assembly, faster commissioning, and lower total cost of ownership across feeders and motor drives. In short, you get reliable protection, regulatory compliance, and a predictable protection strategy for demanding industrial environments. Designed for industrial automation configurations, it pairs well with standard fuse blocks and power distribution panels.
Product Information
Extended Description
KRP-C-1100SP Eaton: Eaton Bussmann Series Class L fuse, KRP-C, time-delay, current limiting fuse, 1100 A, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series KRP-C fuse
Catalog Number
KRP-C-1100SP
UPC
051712178396
Product Length/Depth
10.75 in
Product Height
2.78 in
Product Width
2.78 in
Product Weight
0.001 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
1100 A
Interrupt rating
300 kAIC at 600 Vac 100 kAIC Vdc
Response time
4 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Packaging type
Standard
Class
Class L
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KRP-C 601 to 2000A Class L fuse data sheet No. 1008
Feature → Time-delay, current-limiting Class L fuse; Business Impact → Controls inrush while limiting fault current, reducing nuisance trips and protecting downstream equipment; Application → Motor feeders and power distribution panels. Feature → High amperage rating of 1100 A; Business Impact → Supports heavy-load feeders without nuisance outages, enabling safer panel layout; Application → Main feeders in industrial plants. Feature → Interrupt rating of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc; Business Impact → Upper-bound fault protection for high short-circuit currents, improving system resilience; Application → Large electrical rooms and distributed power systems. Feature → Bolted blade end x bolted blade end connection; Business Impact → Simplifies field installation, ensures robust mechanical contact, and reduces commissioning time; Application → Standard Bussmann KRP-C installation in panels. Feature → Regulatory compliance with CE Mark and RoHS; Business Impact → Streamlines regulatory approvals and international deployment; Application → European and RoHS-focused environments. Feature → Non-indicating fuse indicator; Business Impact → Less maintenance interference in tight spaces, with clear protection strategy; Application → Concealed fuse blocks in crowded control panels.
Get a Quick Quote for a Eaton KRP-C-1100SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KRP-C-1100SP?
Enquire Now
FAQs
The KRP-C-1100SP uses bolted blade end connections and follows the Bussmann KRP-C form factor, enabling straightforward installation in standard fuse blocks and power distribution panels. Its compact dimensions (10.75 in L, 2.78 in W and H) fit tightly packed electrical assemblies commonly used in industrial control cabinets.
Key specs include 1100 A amperage rating, 600 Vac voltage rating, 300 kAIC interrupt rating at 600 Vac, and 100 kAIC at 300 Vdc. The fuse is time-delay (slow-blow) Class L, designed to handle inrush without nuisance tripping while maintaining strong fault protection.
Yes. It is CE marked and RoHS compliant, ensuring regulatory alignment for many European and global applications. The fuse’s non-indicating indicator supports maintenance planning in dense panel environments.
Ideal for motor feeders, process control circuits, and high-inrush power distribution, where reliable protection plus inrush tolerance minimizes downtime. The 4-second response at 500% load supports coordinated protection without sacrificing startup safety.
Install with standard Bussmann KRP-C blocks using bolted blade ends, confirm correct amperage and voltage ratings, and plan for RoHS/CE compliance checks. The non-indicating design reduces ongoing monitoring needs, while the robust interrupt ratings safeguard downstream equipment.
