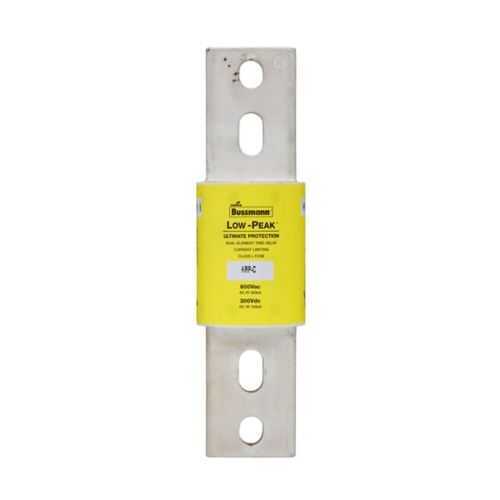

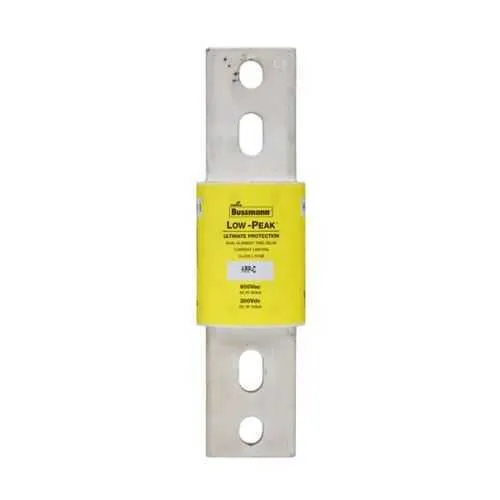

Eaton KRP-C-1350SP Fuse - Class L Time-Delay, CE RoHS
Part Number: KRP-C-1350SP
Quick Summary
The Eaton KRP-C-1350SP fuse is a high-capacity Class L time-delay device designed for power distribution and motor control applications. It addresses nuisance trips and the need for reliable current limiting in high-load feeders, helping keep critical processes online. This fuse carries CE marking and RoHS compliance, signaling readiness for European markets and safer environmental design. For panel builders and OEMs, the Class L time-delay performance translates into safer coordination, reduced downtime, and fewer disruptive trips. With a 1350 A rating and capability for 600 Vac / 300 Vdc systems, it supports scalable, compliant protection across modern electrical installations.
Product Information
Extended Description
KRP-C-1350SP Eaton: Eaton Bussmann Series Class L fuse, KRP-C, time-delay, current limiting fuse, 1350 A, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series KRP-C fuse
Catalog Number
KRP-C-1350SP
UPC
051712605137
Product Length/Depth
10.75 in
Product Height
3.03 in
Product Width
3.03 in
Product Weight
0.001 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
1350 A
Interrupt rating
300 kAIC at 600 Vac 100 kAIC Vdc
Response time
4 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Packaging type
Standard
Class
Class L
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KRP-C 601 to 2000A Class L fuse data sheet No. 1008
High current capability and robust interrupt performance: The 1350 A amperage rating provides direct protection at the source for large feeders, reducing conductor damage and downstream faults. Business impact is improved uptime and simplified coordination with upstream protective devices, enabling designs that scale with future load growth. Applications include motor-control centers and high-load distribution panels where reliability is non-negotiable and downtime costs are measurable. Time-delay operation minimizes nuisance tripping during inrush events, delivering smoother motor starts and energy management benefits. The business result is lower maintenance costs and fewer unplanned outages on critical lines. Class L designation with current-limiting action reduces arc energy and enhances personnel safety during disconnection, a feature that aligns with strict industrial safety programs in manufacturing and process industries. Installation is straightforward thanks to bolted blade end connections and standard packaging, which reduces commissioning time and ensures consistent electrical connections. RoHS and CE compliance underpin cross-market applicability, helping integrators meet regulatory requirements without redesigns. The fuse’s dimensions (10.75 in length) and bolted-end configuration support a wide range of enclosure layouts, delivering compatibility with legacy and new builds alike. These attributes collectively translate into lower total cost of ownership through longer intervals between replacements and easier proactive maintenance planning.
Get a Quick Quote for a Eaton KRP-C-1350SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KRP-C-1350SP?
Enquire Now
FAQs
Install the KRP-C-1350SP using its bolted blade end connections to ensure a secure electrical interface. Verify enclosure space for the 10.75 in length and 3.03 in width/height, and align with the panel’s bus bars. Use appropriate torque values per your enclosure spec and follow standard electrical safety procedures. Refer to the datasheet 1008 for mounting guidance and clearances around the fuse for heat dissipation and service access.
Key specs include a 1350 A amperage rating with an interrupt rating of 300 kAIC at 600 VAC and 100 kAIC at 300 VDC, plus a 4-second response time at 500% overload. The 600 VAC and 300 VDC voltage ratings define operating limits, while the Class L designation indicates time-delay protection suitable for inrush conditions in motors and feeders.
Yes. The high current rating, Class L time-delay characteristic, and bolted end connections make it ideal for motor control centers and high-load feeders. Its current-limiting capability helps manage arc energy during faults, while the 600 VAC / 300 VDC ratings support common industrial distribution scenarios. It also aligns with RoHS and CE requirements for European and global installations.
Yes. The KRP-C-1350SP is CE marked and RoHS compliant, ensuring regulatory approval across many international markets and supporting environmentally responsible design practices. This compliance simplifies procurement for global projects and reduces risk during audits and supplier assessments.
The combination of a high interrupt rating, current-limiting action, and time-delay protection reduces unplanned outages and arc energy during faults, leading to lower maintenance costs and higher uptime. Although the provided data sheet lists no warranty, the device’s durability and regulatory compliance contribute to a favorable total cost of ownership in high-demand electrical systems.
