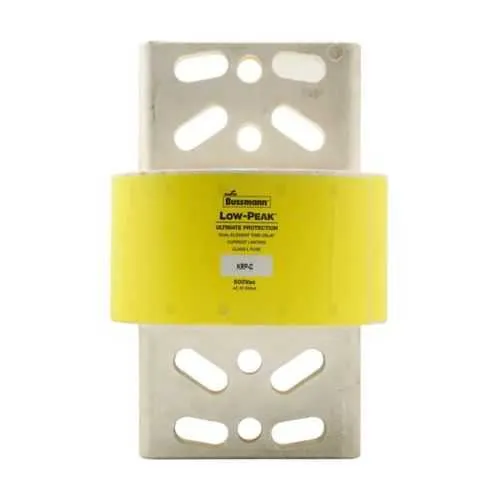

Eaton KRP-C-5000SP Fuse - 300 kAIC at 600 Vac
Part Number: KRP-C-6000SP
Quick Summary
The Eaton Bussmann KRP-C fuse protects high-current circuits in industrial power distribution and control panels. Many users struggle with nuisance fuse blows, miscoordination, and costly downtime when protection is undersized or poorly specified. RoHS compliant and CE marked, this Class L time-delay, current-limiting fuse delivers precise coordination with an interrupt rating of 300 kAIC at 600 Vac. Designed for installations that demand robust, bolted connections and 600 V operation, it reduces spare-part inventories while improving overall system reliability. With a 5000 A amperage rating, 10.75 in length and bolted blade ends, the KRP-C-5000SP simplifies panel design and maintenance for OEMs and service teams.
Product Information
Extended Description
KRP-C-6000SP Eaton: Eaton Bussmann Series Class L fuse, KRP-C, time-delay, current limiting fuse, 6000 A, interrupting rating of 300 kA at 600 Vac
Product Name
Eaton Bussmann series KRP-C fuse
Catalog Number
KRP-C-6000SP
UPC
051712605601
Product Length/Depth
10.75 in
Product Height
7.17 in
Product Width
7.17 in
Product Weight
33.6 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
6000 A
Interrupt rating
300 kAIC at 600 Vac
Response time
4 sec at 500%
Voltage rating
600 V
Packaging type
Standard
Class
Class L
Fuse indicator
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KRP-C 2001 to 6000A Class L fuse data sheet No. 1009
Feature: High current capability at 5000 A. Benefit: Enables protection of large feeders and motors without sacrificing selectivity or reliability. Application: Industrial power distribution sections and main control panels. Feature: Time-delay, current-limiting Class L fuse. Benefit: Smooth motor starting and reduced nuisance trips, lowering downtime and maintenance costs. Application: Starters and drive circuits in manufacturing lines. Feature: 300 kAIC interrupt rating at 600 Vac. Benefit: Superior fault clearance and safety for high-energy circuits, reducing arcing risk. Application: Large machine tools and process equipment in heavy industry. Feature: Bolted blade end x bolted blade end connection. Benefit: Faster, secure installation with proven vibration resistance and easy replacement in field retrofits. Application: OEM panel fabrication and serviceable field installations. Feature: RoHS compliant and CE marked. Benefit: Regulatory compliance and market readiness across global facilities. Application: Export-ready assemblies and regulated markets. Feature: Dimensions and weight (10.75 in L, 7.17 in W/H, 26.92 lb). Benefit: Clear fitment guidance for cabinet spaces and freight planning. Application: Cabinet sizing and logistics planning for system integrators.
Get a Quick Quote for a Eaton KRP-C-6000SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KRP-C-6000SP?
Enquire Now
FAQs
The KRP-C-5000SP utilizes bolted blade end x bolted blade end connections, enabling a secure, vibration-resistant installation in control panels. This design supports straightforward field replacement and reliable contact integrity in demanding environments.
Key specs include a 5000 A amperage rating, 300 kAIC interrupt rating at 600 Vac, and a 600 V voltage rating. It is a Class L time-delay fuse with a 4-second response at 500% overload, delivering controlled protection for startup surges and fault events.
Yes. The fuse is RoHS compliant and CE marked, ensuring regulatory compliance for European and other RoHS-regulated markets. This supports ease of procurement and risk mitigation in multinational manufacturing environments.
Ideal for industrial power distribution, motor control centers, and large equipment feeders where high-current protection, selective coordination, and rapid fault interruption are essential for uptime and safety.
Plan for periodic inspection of fuse indicators and panel wiring to ensure proper contact integrity. Use matching Class L, 5000 A devices for replacements to maintain coordination and protection characteristics, and reference the Bussmann data sheet No. 1009 for application guidance.
