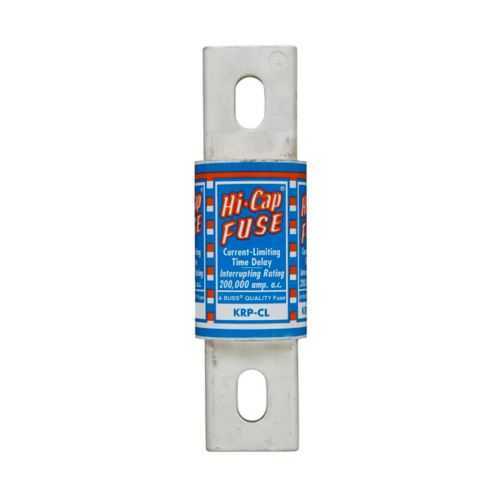

Eaton KRP-CL-350 Fuse Class L
Part Number: KRP-CL-350
Quick Summary
Eaton KRP-CL-350 Fuse Class L delivers reliable time-delay protection for industrial power circuits and motor feeders. Manufacturers often grapple with nuisance outages from inrush currents and transient faults, driving costly downtime and increased maintenance. This RoHS-compliant Class L fuse features a 350 A rating with a 200 kAIC interrupt capability at 600 Vac, aligning with common electrical protection requirements. With blade-end x blade-end connections and a compact 8.63 in length, it integrates cleanly into standard enclosures while improving panel reliability and ease of maintenance. Applied within ongoing power distribution schemes, it supports efficient protection, reduces total ownership costs, and minimizes unwarranted downtime across electrical protection and circuit control systems.
Product Information
Extended Description
KRP-CL-350 Eaton: Eaton Bussmann Series Class L fuse, KRP-CL, time-delay, current limiting fuse, 350 A, Interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series KRP-CL fuse
Catalog Number
KRP-CL-350
UPC
051712605717
Product Length/Depth
8.63 in
Product Height
2.78 in
Product Width
2.78 in
Product Weight
3.26 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Amperage Rating
350 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Packaging type
Standard
Class
Class L
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KRP-CL Class L fuse data sheet no.1016
Feature: Time-delay Class L fuse with current-limiting characteristics. Business Impact: Enables coordinated protection with motor start-up, minimizing nuisance trips during inrush and reducing downtime. Application: Ideal for motor feeders, HVAC drives, and other high-inrush industrial circuits. Feature: Amperage rating of 350 A and interrupt rating of 200 kAIC at 600 Vac. Business Impact: Provides robust short-circuit protection on heavy feeders, safeguarding equipment and reducing repair costs. Application: Heavy industry feeders and large motor circuits in distribution panels. Feature: RoHS Compliance. Business Impact: Supports regulatory compliance and sustainable manufacturing programs, decreasing supply-chain risk in global installations. Application: Global facilities and OEM panel builds requiring RoHS materials. Feature: Blade-end x blade-end connections; 8.63 in length; compact form factor. Business Impact: Simplifies retrofit and field installation while ensuring reliable electrical contact. Application: Panelboards, switchgear housings, and modular enclosures in tight spaces. Feature: Standard packaging and non-indicating fuse indicator. Business Impact: Improves part availability and maintenance planning while reducing visual clutter in dense switchgear. Application: Stocked in typical industrial procurement channels for quick replacement.
Get a Quick Quote for a Eaton KRP-CL-350
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KRP-CL-350?
Enquire Now
FAQs
The KRP-CL-350 uses blade-end x blade-end connections and measures 8.63 inches in length, designed for straightforward integration into standard panelboards and switchgear. Verify compatible bus bars and ensure the panel provides 600 V rating; remove power, insert fuse with clean contact seating, and re-energize. This approach minimizes contact wear and ensures consistent current interruption performance.
Key ratings include a 350 A amperage rating and a 200 kAIC interrupt rating at 600 Vac, making it suitable for protecting heavy motor feeders and high-energy circuits. The voltage rating of 600 V supports typical industrial distribution environments, while RoHS compliance ensures material safety and environmental responsibility.
Yes. The time-delay characteristics of the Class L fuse, combined with current-limiting behavior, help mitigate inrush during motor start-up and reduce nuisance trips. Its 350 A rating supports sizeable motor feeders, and the 200 kAIC interrupt capability provides robust protection against short circuits in demanding industrial environments.
The KRP-CL-350 is RoHS Compliant, aligning with environmental and regulatory expectations for electronics and electrical components. No additional certifications are listed in the provided data, so confirm regional requirements (UL/CE approvals if needed) with the datasheet and local compliance teams for specific deployments.
The fuse’s non-indicating design reduces nuisance alarms in crowded assemblies, while its robust Class L time-delay and current-limiting performance help extend equipment life by preventing arcing and transient damage. Its compact, blade-end configuration simplifies stocking and replacement, supporting lower maintenance labor and faster service turnover in industrial facilities.
