Eaton KSCC-808A-02-90VO24 KwikSplice Covers - UL Listed
Part Number: KSCC-808A-02-90VO24
Quick Summary
Eaton KSCC-808A-02-90VO24 KwikSplice cable channel covers manage cables in industrial panels and electrical installations. When space is tight and installation speed matters, improper cable routing can cause heat buildup and service interruptions. These covers meet NEMA Compliant and UL Listed certification, providing safety and reliability in demanding environments. Designed for aluminum KwikSplice channels and 2-inch wide, 90-degree vertical runs, they streamline installation, simplify maintenance, and support scalable wire management across facilities. By standardizing on a single cover solution, procurement gains consistency, while engineering reduces change orders and field customization.
Product Information
Extended Description

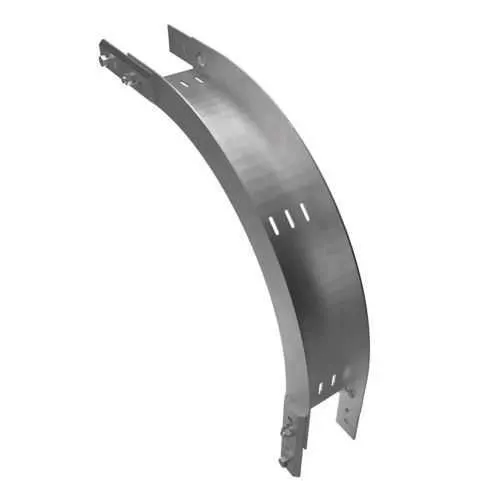

KSCC-808A-02-90VO24 Eaton: Eaton B-Line series KwikSplice cable channel covers, KwikSplice cable channel cover for 2" wide 90-degree vertical outside, 24" radius
Product Name
Eaton B-Line series KwikSplice cable channel covers
Catalog Number
KSCC-808A-02-90VO24
UPC
799038826606
Product Length/Depth
2.52 in
Product Height
29.03 in
Product Width
29.03 in
Product Weight
0.13 lb
Compliances
NEMA Compliant
Certifications
UL Listed
Material
Aluminum
Type
Cover 2" 90 Degree Vertical Out 24
Angle
90°
Radius
24 in
Support span - min
10 ft
KwikSplice cable channel Brochure
KwikSplice cable channel Instruction manual
Eaton Specification Sheet - KSCC-808A-02-90VO24
Eaton Specification Sheet - KSCC-808A-02-90VO24
Feature → Business Impact → Application: Aluminum construction delivers corrosion resistance and lightweight handling, translating to longer service life and easier field installation across varied environments. This reduces maintenance cycles and material fatigue, enabling technicians to deploy covers quickly along large channel runs for improved reliability. Feature → Business Impact → Application: KwikSplice compatible design for 2-inch wide, 90-degree vertical out layout facilitates rapid retrofits and channel expansions, cutting installation time and minimizing downtime in new builds and upgrades. Application: suitable for motor control centers and electrical closets needing compact, clean cable management without compromising access. Feature → Business Impact → Application: 24-inch radius geometry supports smoother cable bending and reduced wear on conductors, extending cable life and reducing replacement costs in high-density wiring environments. Application: ideal for long, curved runs in manufacturing lines and process equipment. Feature → Business Impact → Application: NEMA Compliant and UL Listed certification provides regulatory assurance and safety margins, lowering risk of noncompliance penalties and accelerating procurement approvals. Application: essential in regulated facilities such as food & beverage, pharma, and energy sectors. Feature → Business Impact → Application: Lightweight aluminum weight (0.13 lb) minimizes added load on the channel system while maintaining rigidity, improving overall system performance and reducing structural reinforcement needs. Application: beneficial for retrofit projects and multi-tier cable management installations.
Get a Quick Quote for a Eaton KSCC-808A-02-90VO24
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KSCC-808A-02-90VO24?
Enquire Now
FAQs
KSCC-808A-02-90VO24 is designed specifically for 2-inch wide KwikSplice cable channels and offers a 90-degree vertical-out configuration with a 24-inch radius. For best results, verify channel alignment, ensure clean mounting surfaces, and follow Eaton installation instructions to minimize bending stress on cables and maximize longevity of the cover system.
The cover is UL Listed and NEMA Compliant, signaling adherence to recognized safety and performance standards for electrical assemblies. This helps ensure proper protection of conductors, reduces regulatory risk, and supports procurement and inspection processes in industrial facilities, warehouses, and manufacturing plants.
Yes. The KSCC-808A-02-90VO24 is purpose-built for 2" wide KwikSplice channels and 90-degree vertical outside runs. Its aluminum construction and precise geometry enable seamless integration with standard KwikSplice components, enabling quick upgrades, channel extensions, and clean, consistent cable management across multiple bays.
Key specs include a product length/depth of 2.52 in, product height and width of 29.03 in, a 24 in radius, and a lightweight 0.13 lb weight. These dimensions support compact installations while maintaining structural integrity. The combination enables longer span support (min 10 ft) and ease of handling during installation and maintenance.
The cover provides fast installation, improved cable protection, and regulatory compliance, reducing downtime and labor costs. Its compatibility with a 2-inch KwikSplice channel and 90-degree outs supports scalable wiring layouts, facilitating future expansions and reducing change orders, which translates into lower total cost of ownership over the system’s life cycle.
