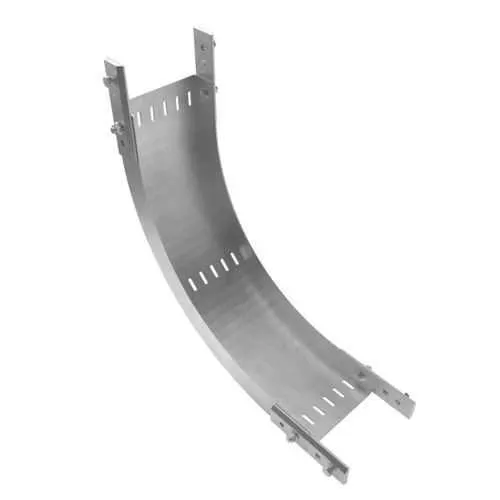

Eaton KSCC-808A-04-90VI24 KwikSplice Cable Channel UL Listed
Part Number: KSCC-808A-04-90VI24
Quick Summary
Eaton KSCC-808A-04-90VI24 KwikSplice cable channel covers streamline cable routing for panels and enclosures across industrial facilities, delivering a clean, safe installation. Facing tangled harnesses, limited space, and retrofit downtime, engineers need a reliable, fast-fit solution that minimizes disruption. UL Listed certification safeguards electrical safety, NEMA compliance ensures performance within standard enclosures, and the aluminum construction provides rugged durability in harsh environments. Designed for 4-inch-wide KwikSplice channels, the 90-degree vertical inside with a 24-inch radius aligns with common layouts, while easy mounting reduces installation cycles. Beyond compliance, this cover supports scalable cable management, improves maintenance visibility, and lowers total installed cost across automation projects.
Product Information
Extended Description
KSCC-808A-04-90VI24 Eaton: Eaton B-Line series KwikSplice cable channel covers, KwikSplice cable channel cover for 4" wide 90-degree vertical inside, 24" radius
Product Name
Eaton B-Line series KwikSplice cable channel covers
Catalog Number
KSCC-808A-04-90VI24
UPC
799038826446
Product Length/Depth
4.52 in
Product Height
27.4 in
Product Width
27.4 in
Product Weight
0.23 lb
Compliances
NEMA Compliant
Certifications
UL Listed
Material
Aluminum
Type
Cover 4" 90 Vertical Inside 24
Angle
90°
Radius
24 in
Support span - min
10 ft
KwikSplice cable channel Brochure
KwikSplice cable channel Instruction manual
Eaton Specification Sheet - KSCC-808A-04-90VI24
Eaton Specification Sheet - KSCC-808A-04-90VI24
Feature → Aluminum construction reduces overall weight while maintaining strength; Business Impact → Easier handling during installation, lower transportation and mounting costs; Application → Suitable for panel enclosures and wall-mounted cable management locations. Feature → NEMA Compliant design supports standard enclosure environments; Business Impact → Ensures reliable performance across industrial settings, reducing rework and audit findings; Application → Ideal for electrical rooms and controlled environments with strict standards. Feature → 4 in wide KwikSplice compatibility with 90° vertical inside 24 radius; Business Impact → Streamlines routing in tight spaces and aligns with common layout patterns, minimizing custom fabrication; Application → Perfect for retrofit projects and new builds in automation facilities. Feature → UL Listed certification and aluminum material; Business Impact → Enhances safety, longevity, and total cost of ownership; Application → Fits within regulatory expectations for critical wiring configurations. Feature → Provides quick, tool-friendly installation instructions and compatibility with Eaton B-Line series channels; Business Impact → Shortens commissioning time and reduces labor costs; Application → Widely applicable to data centers, manufacturing floors, and control panels. This combination of material, geometry, and certification delivers measurable efficiency gains, improved compliance, and a resilient solution for evolving cable management needs.
Get a Quick Quote for a Eaton KSCC-808A-04-90VI24
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KSCC-808A-04-90VI24?
Enquire Now
FAQs
KSCC-808A-04-90VI24 is designed to fit 4" wide KwikSplice cable channels and aligns with a 90° vertical inside geometry and a 24" radius. Refer to the installation manual for step-by-step mounting, fastener recommendations, and clearance guidelines to ensure a secure, code-compliant fit on standard Eaton B-Line systems.
Key specs include aluminum construction, 90° angle, 24 in radius, and a 4.52 in depth with overall 27.4 in width/height. It carries UL Listed certification and meets NEMA Compliant requirements, making it suitable for regulated electrical environments and ensuring safe, durable cable management.
Yes. The 4 in wide KwikSplice channel cover, with a 90° vertical inside and 24 in radius, is designed to cap existing channels cleanly. Its aluminum construction reduces weight during retrofits, while UL Listed and NEMA compliance help maintain regulatory alignment and minimize downtime during installation.
Industries include automotive, data centers, and general industrial automation where reliable cable routing, fast installation, and regulatory compliance matter. The product supports control panels, electrical enclosures, and retrofit wiring projects, delivering improved wire organization and maintenance visibility with minimal space impact.
Expected benefits include reduced installation time, fewer reworks due to improved fit, and better cable management that speeds inspections and maintenance. The UL Listed and NEMA-compliant design also contributes to long-term reliability, lowering total cost of ownership in regulated environments.
