Eaton KSCC-808A-04-90VO24 KwikSplice Channel Covers - UL
Part Number: KSCC-808A-04-90VO24
Quick Summary
KwikSplice cable channel covers from Eaton provide durable, lightweight cable routing for industrial enclosures and panel wiring. Engineers often struggle with fast, clean installations in tight spaces where cables must be organized for reliability. These covers are UL Listed, NEMA Compliant, and constructed from aluminum, delivering corrosion resistance and long service life. By simplifying installation and reducing maintenance, they help you meet enclosure wiring codes while keeping pathways accessible for future changes and expansion. In short, this solution combines safety, efficiency, and value for repetitive, high-volume installations in manufacturing and automation environments.
Product Information
Extended Description

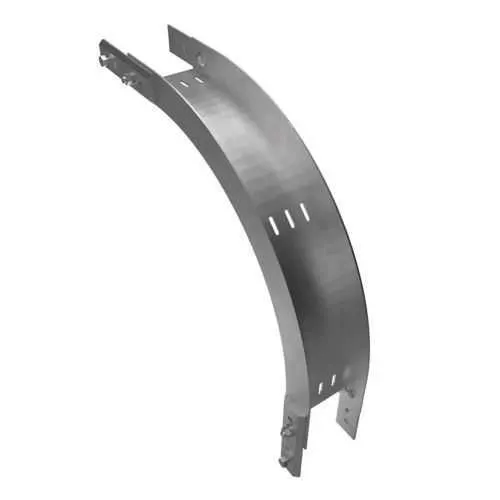

KSCC-808A-04-90VO24 Eaton: Eaton B-Line series KwikSplice cable channel covers, KwikSplice cable channel cover for 4" wide 90-degree vertical outside, 24" radius
Product Name
Eaton B-Line series KwikSplice cable channel covers
Catalog Number
KSCC-808A-04-90VO24
UPC
799038826569
Product Length/Depth
4.52 in
Product Height
29.03 in
Product Width
29.03 in
Product Weight
0.24 lb
Compliances
NEMA Compliant
Certifications
UL Listed
Material
Aluminum
Type
Cover 4" 90 Degree Vertical Out 24
Angle
90°
Radius
24 in
Support span - min
10 ft
KwikSplice cable channel Brochure
KwikSplice cable channel Instruction manual
Eaton Specification Sheet - KSCC-808A-04-90VO24
Eaton Specification Sheet - KSCC-808A-04-90VO24
Feature: Aluminum construction provides inherent corrosion resistance and durability. Business Impact: Reduces maintenance costs and extends service life in harsh environments. Application: Ideal for indoor and outdoor industrial enclosures where exposure to moisture or dust is a concern. Feature: 4" width with 90-degree vertical outside angle improves routing around corners. Business Impact: Enables faster, less error-prone installations and cleaner cable runs. Application: Suitable for right-angle transitions in B-Line KwikSplice channel systems. Feature: Radius 24 in supports smooth bends, minimizing cable bend stress. Business Impact: Protects wire integrity and reduces failure risk, lowering warranty issues. Application: Long, curved cable routes in control panels. Feature: Catalog KSCC-808A-04-90VO24 and UL Listed certification ensure traceability and compliance. Business Impact: Streamlines procurement and regulatory alignment, reducing audit findings. Application: Procurement-ready for regulated facilities. Feature: Support span minimum of 10 ft enables extended spans between supports. Business Impact: Fewer supports mean faster installation and lower hardware costs. Application: Large-panel installations with minimal cross-run supports.
Get a Quick Quote for a Eaton KSCC-808A-04-90VO24
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KSCC-808A-04-90VO24?
Enquire Now
FAQs
KSCC-808A-04-90VO24 is designed for use with 4 inch wide KwikSplice cable channels. It features a 90 degree vertical outside angle and a 24 inch radius, supporting clean right-angle transitions. When installing, ensure proper mounting onto compatible channel profiles, use appropriate fasteners, and align the cover with the cable path to maintain the rated bend radius and minimize stress on conductors. The UL Listed and NEMA Compliant construction ensures compliance once securely mounted in approved enclosures.
Key specs include aluminum construction, 4 inch width, 90-degree vertical outside angle, 24 inch radius, 4.52 inch depth, and overall height and width of 29.03 inches. The catalog number is KSCC-808A-04-90VO24, with a weight of 0.24 lb, and it carries UL Listed and NEMA Compliant certifications. Its span capability lists a minimum of 10 feet between supports, aiding long runs in panels and enclosures.
Yes. The 4" wide, 90° vertical outside cover is tailored for KwikSplice cable channels used in automation and industrial control panels. Its aluminum construction offers corrosion resistance, while UL Listed and NEMA compliance provide regulatory assurance. The 24" radius supports gentle bends for multiple cables, and the 10 ft minimum span reduces structural hardware, accelerating install timelines across multiple enclosures.
The KSCC-808A-04-90VO24 is UL Listed and NEMA Compliant, with aluminum construction. UL listing confirms electrical safety compliance, while NEMA compliance ensures compatibility with NEMA enclosure systems. Together, they support code adherence, risk mitigation, and smoother procurement and inspection processes in regulated industries like manufacturing, energy, and data centers.
The aluminum, UL Listed covers reduce maintenance through corrosion resistance and extended service life, cutting replacement costs. Easier installation and longer spans between supports speed up commissioning, lowering labor hours. Clear traceability via catalog KSCC-808A-04-90VO24 simplifies procurement and audits, while reliable cable management minimizes relocation and rework during system updates.
