Eaton KSCC-808A-06-90HB24 KwikSplice Cable Covers - UL Listed
Part Number: KSCC-808A-06-90HB24
Quick Summary
Eaton KSCC-808A-06-90HB24 KwikSplice cable channel covers provide protected cable routing for 6-inch wide channels in electrical rooms and similar installations. This design helps technicians avoid loose cables, tangles, and safety hazards during maintenance by keeping pathways clear and accessible. The solution carries UL Listed certification and NEMA Compliant status, supporting safe operation and regulatory compliance in commercial and industrial environments. By pairing durable aluminum with precise bends, it also reduces installation time and long-term lifecycle costs. With compatibility to KwikSplice cable channel systems, it enables scalable, modular wiring paths while improving serviceability for facilities teams.
Product Information
Extended Description

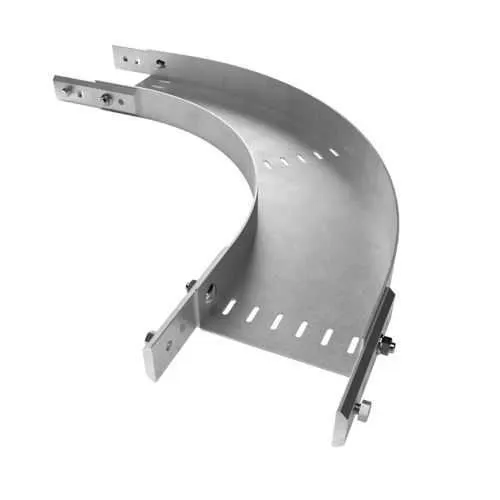

KSCC-808A-06-90HB24 Eaton: Eaton B-Line series KwikSplice cable channel covers, KwikSplice cable channel cover for 6" wide, 90-degree horizontal bend, 24" radius
Product Name
Eaton B-Line series KwikSplice cable channel covers
Catalog Number
KSCC-808A-06-90HB24
UPC
799038826644
Product Length/Depth
33.26 in
Product Height
0.5 in
Product Width
33.26 in
Product Weight
0.36 lb
Compliances
NEMA Compliant
Certifications
UL Listed
Material
Aluminum
Type
Cover 6" 90 degree Horizontal Bend 24
Angle
90°
Radius
24 in
Support span - min
10 ft
KwikSplice cable channel Brochure
KwikSplice cable channel Instruction manual
Eaton Specification Sheet - KSCC-808A-06-90HB24
Eaton Specification Sheet - KSCC-808A-06-90HB24
Feature: 6-inch wide KwikSplice cable channel cover provides a dedicated pathway for organized cabling. Business Impact: Enhances routing reliability and reduces cable damage in busy electrical rooms, lowering maintenance time. Application: Ideal for data centers and manufacturing facilities needing clean, code-compliant cable management. Feature: 90-degree horizontal bend with a 24-inch radius. Business Impact: Enables smooth, protected corners that prevent cable snagging and wear, improving long-term performance. Application: Used at channel junctions and turn locations in routing plans. Feature: Aluminum construction. Business Impact: Lightweight yet durable, simplifying site handling and reducing labor costs during installation. Application: Suitable for overhead or wall-mounted KwikSplice installations in industrial environments. Feature: UL Listed and NEMA Compliant. Business Impact: Ensures regulatory compliance and safety accreditation, easing procurement and audits. Application: Meets electrical standards for commercial and industrial facilities. Feature: Precise dimensions (33.26 in length/depth, 33.26 in width, 0.5 in height). Business Impact: Predictable fit with KwikSplice channels, reducing field trimming and rework. Application: Fits standard 6-inch channel configurations and installation footprints.
Get a Quick Quote for a Eaton KSCC-808A-06-90HB24
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KSCC-808A-06-90HB24?
Enquire Now
FAQs
Follow the installation manual CTIS-27 IL302018EN for installation steps. Ensure channel alignment at the 90-degree bend, secure with compatible fasteners, and verify proper clearance around the 24-inch radius to prevent cable snagging.
The cover is UL Listed and NEMA Compliant, ensuring regulatory safety and compatibility with standard commercial and industrial electrical installations.
Product Length/Depth is 33.26 in, Product Width is 33.26 in, Product Height is 0.5 in, and Product Weight is 0.36 lb, with aluminum construction for easy handling.
Designed for 6-inch KwikSplice cable channels, including applications in electrical rooms, data centers, and service corridors that require a 90-degree bend with a 24-inch radius.
Download the KwikSplice brochure, installation manual, and specification sheets from Eaton’s site: KwikSplice brochure, CTIS-27 IL302018EN manual, and KSCC-808A-06-90HB24 PDFs.
