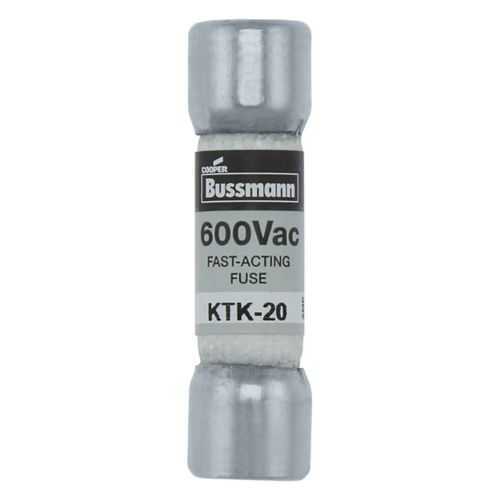

Eaton KTK-20 Fuse - 100 kAIC at 600 V CE RoHS
Part Number: KTK-20
Quick Summary
KTK-20 fuse from Eaton Bussmann series provides reliable protection for control, lighting, and metering circuits. Engineers often wrestle with nuisance trips and crowded panel layouts that slow maintenance. It carries CE marking and RoHS compliance, and its 100 kAIC interrupt rating at 600 V strengthens safety for demanding applications. This compact ferrule-end design saves panel space and wiring time, reducing total cost of ownership while staying compatible with 600 V control and metering circuits. Designed for rapid replacement and minimal panel heat, the KTK-20 supports standard ferrule terminations and industry-best response times in protection schemes. Its rugged construction aligns with CE RoHS, enabling fast deployment across plant-wide safety programs.
Product Information
Extended Description
KTK-20 Eaton: Eaton Bussmann series KTK fuse, Control circuits, Lighting circuit protection, Meter circuits, 20 A, Non-indicating, Ferrule end x ferrule end, 100 kAIC at 600 V, Melamine tube, Nickel-plated bronze endcap, 600 V
Product Name
Eaton Bussmann series KTK fuse
Catalog Number
KTK-20
UPC
051712420204
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
20 A
Interrupt rating
100 kAIC at 600 Vac
Voltage rating
600 V
Material
Nickel-plated bronze endcap Melamine tube
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Small footprint
Bussmann series full line catalog 1007, section 01- low voltage branch circuit fuses
Bussmann series full line catalog 1007, section 01- low voltage branch circuit fuses
Bussmann series Fuseology
Eaton Specification Sheet - KTK-20
KTK-20~LIMITRON FAST ACTING FUSE
Datasheet - FNQ-30
The KTK-20’s small footprint translates to real panel-space savings in crowded control cabinets, enabling more circuits per enclosure and simplifying enclosure wiring. With a 1.5 in length and 0.41 in diameter, it fits neatly alongside other protection devices while maintaining robust current handling for 20 A circuits. In practice, this means faster panel assembly and easier field retrofits for machine modernization projects in manufacturing lines. Its electrical performance includes a 20 A rating and a 600 V operating voltage with a 100 kAIC interrupt capability, allowing quick fault clearance and minimizing unplanned downtime. The ferrule-end x ferrule-end connections, paired with nickel-plated bronze endcaps and a melamine tube, deliver durable, high-reliability contacts and heat resistance in harsh environments. The non-indicating design reduces panel clutter, expediting inspections and replacements. CE Marked and RoHS compliant construction ensures regulatory readiness, while the small footprint supports modular, scalable protection schemes across multiple machines. Designed for ease of installation, the fuse accommodates standard ferrule terminations, helping technicians reduce wiring time and errors during panel wiring. Industry experience shows that compact, compliant protection devices translate directly into lower total cost of ownership and improved first-pass assembly success in energy-efficient automation projects.
Get a Quick Quote for a Eaton KTK-20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTK-20?
Enquire Now
FAQs
Yes. The KTK-20 uses ferrule end x ferrule end connections and is designed for standard ferrule-terminals. Its 1.5 in length and 0.41 in diameter fit common control panels, easing replacement and retrofit projects while maintaining reliable, low-impedance connections for 20 A circuits.
The KTK-20 is a 20 A, 600 V fuse with a 100 kAIC interrupt rating at 600 V. This combination supports fast fault clearance for control circuits, lighting circuits, and meter circuits, reducing downtime and protecting connected equipment in industrial environments.
Ideal for control panels, lighting circuit protection, and meter circuit protection in manufacturing and process environments, the KTK-20 offers a small footprint with robust interrupt capability. Its ferrule-term connections simplify integration into existing panel architectures and bus bar assemblies.
The KTK-20 is CE Marked and RoHS Compliant, ensuring compliance with common European regulatory requirements and restricting hazardous substances. This makes it suitable for global installations where regulatory adherence is essential for safety and sustainability programs.
Its non-indicating, compact design reduces panel clutter and speeds replacement, while documented datasheets support fast commissioning. The small footprint, high interrupt rating, and standard ferrule terminations translate to lower wiring time, easier training, and reduced total cost of ownership across a plant’s protection strategy.
