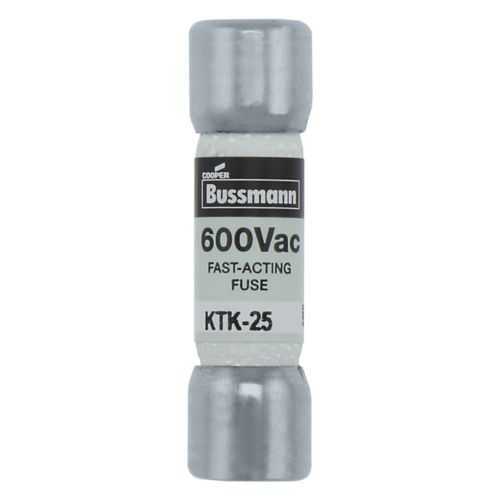

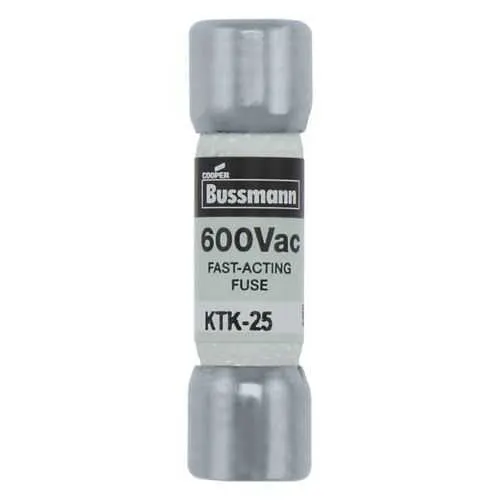

Eaton KTK-25 Fuse - 100 kAIC at 600 Vac
Part Number: KTK-25-G1
Quick Summary
KTK-25 Fuse provides reliable overcurrent protection for control circuits and lighting in electrical panels, enabling safe, uninterrupted operation in industrial environments. When fuses fail to clear faults quickly, downtime and equipment damage escalate, driving maintenance costs higher. This unit is RoHS compliant and rated for 600 V with a 100 kAIC interrupt rating, aligning with essential safety practices for modern facilities. Designed for Bussmann series compatibility, it delivers a compact ferrule-end solution ideal for control panels and metering circuits, supporting efficient, compliant protection with a small footprint and easy installation.
Product Information
Extended Description
KTK-25-G1 Eaton: Eaton Bussmann series KTK fuse, Control circuits, Lighting circuit protection, Meter circuits, 25 A, Non-indicating, Ferrule end x ferrule end, 100 kAIC at 600 V, Melamine tube, Nickel-plated bronze endcap, 600 V
Product Name
Eaton Bussmann series KTK fuse
Catalog Number
KTK-25
UPC
051712420259
EAN
5027590063531
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.19 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Amperage Rating
25 A
Interrupt rating
100 kAIC at 600 Vac
Voltage rating
600 V
Material
Nickel-plated bronze endcap Melamine tube
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Small footprint
Feature: 25 A amperage rating; Business impact: precise protection of low-to-mid current devices while minimizing nuisance blows; Application: control circuits and lighting circuits where consistent protection improves uptime. Feature: 100 kAIC interrupt rating at 600 Vac; Business impact: rapid fault clearing reduces equipment damage and busbar wear; Application: high-energy fault scenarios in industrial controls. Feature: Ferrule end x ferrule end connection; Business impact: secure, repeatable terminations that simplify field wiring; Application: panel installations with standard ferrule wiring. Feature: Nickel-plated bronze endcaps; Business impact: durable, corrosion-resistant ends extend fuse life in harsh environments; Application: electrical enclosures exposed to moisture or contaminants. Feature: Melamine tube; Business impact: heat resistance and mechanical stability for long service life; Application: compact fuse assemblies in dense control panels. Feature: Small footprint; Business impact: enables higher packing density in crowded panels; Application: metering and control circuits in compact electrical cabinets. Feature: Non-indicating fuse; Business impact: reduces maintenance complexity by not requiring indicator status; Application: standard protection roles in control and lighting circuits. Feature: RoHS Compliant; Business impact: supports regulatory compliance and sustainability goals; Application: equipment destined for markets with strict material restrictions. Feature: 25 A at 600 V; Business impact: aligns with common industrial panel specs for reliable protection; Application: general purpose protection in Bussmann KTK family.
Get a Quick Quote for a Eaton KTK-25-G1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTK-25-G1?
Enquire Now
FAQs
The KTK-25 uses ferrule-end terminations on both ends, designed for standard ferrule wiring in electrical panels. It pairs with Eaton Bussmann KTK family holders and fits typical panel layouts, offering straightforward replacement and secure, repeatable connections in tight spaces thanks to its ferrule-end design and compact dimensions (0.41 in width/depth).
KT KTK-25 is rated for 25 A, 600 V, with an interrupt rating of 100 kAIC at 600 Vac. It is intended for control circuits, lighting circuits, and metering circuits in electrical panels, delivering controlled protection for critical loads while supporting safe clearance of faults in industrial environments.
Yes. The KTK-25 is designed as a compact Bussmann series fuse with non-indicating status, suitable for control and lighting circuits in industrial panels. Its small footprint and ferrule-end connections simplify installation in crowded switchgear, while the 25 A, 600 V rating covers common panel protection needs with reliable fault interruption.
The KTK-25 is RoHS compliant, aligning with material restrictions and environmental regulations. While its primary certifications are embedded in the Bussmann series design, the RoHS conformity supports regulatory requirements across many manufacturing regions and helps with sustainability and waste reduction in industrial deployments.
The KTK-25 offers long-term reliability with a non-indicating design that reduces maintenance checks while delivering consistent protection. Its robust 100 kAIC interrupt rating and 600 V capability minimize downtime from fault events, lowering total cost of ownership through fewer failed components, quicker replacements, and predictable panel performance.
