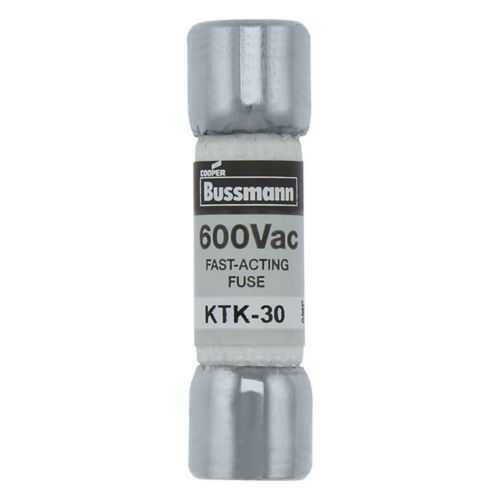

Eaton KTK-30 Fuse - 100 kAIC at 600 V CE RoHS
Part Number: KTK-30
Quick Summary
The Eaton KTK-30 fuse is a compact, fast-acting protection device for control circuits, lighting circuits, and metering panels. In tight panels, space and reliability are common pain points, and the KTK-30 helps by delivering robust protection without extraneous indicators. RoHS compliant and CE marked, it aligns with global standards while keeping installation straightforward. With a 30 A rating, 600 V rating, and 100 kAIC interrupt capacity, it supports efficient, safe operation. Its small footprint and Bussmann heritage translate to lower lifecycle costs and easier stocking for spare parts and replacements.
Product Information
Extended Description
KTK-30 Eaton: Eaton Bussmann series KTK fuse, Control circuits, Lighting circuit protection, Meter circuits, 30 A, Non-indicating, Ferrule end x ferrule end, 100 kAIC at 600 V, Nickel-plated bronze endcap, Melamine tube, 600 V
Product Name
Eaton Bussmann series KTK fuse
Catalog Number
KTK-30
UPC
051712420303
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Amperage Rating
30 A
Interrupt rating
100 kAIC at 600 Vac
Voltage rating
600 V
Material
Melamine tube Nickel-plated bronze endcap
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Small footprint
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KTK-30
KTK-30~LIMITRON FAST ACTING FUSE
Datasheet - FNQ-30
Feature → 30 A amperage rating. Business Impact → Protects circuits reliably from overloads, reducing unscheduled downtime and component damage. Application → Control circuits in industrial panels and meter circuits. Feature → 100 kAIC interrupt rating at 600 V. Business Impact → High fault current tolerance improves system safety and compliance in high-energy environments. Application → Main protection in lighting and control subpanels. Feature → Ferrule end x ferrule end termination. Business Impact → Easy, standardized installation with compatible wire ferrules, minimizing mis-wiring risk. Application → Replacement in existing Bussmann/fuse blocks. Feature → Melamine tube with nickel-plated bronze endcaps. Business Impact → High temperature and chemical resistance for harsh industrial environments. Application → Heavy-duty service in process automation. Feature → Small footprint and standard packaging. Business Impact → Enables dense panel layouts and simplify inventory. Application → Compact control cabinets where space is at a premium.
Get a Quick Quote for a Eaton KTK-30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTK-30?
Enquire Now
FAQs
Install the KTK-30 using ferrule-end terminations that match common ferrule sizes. Slide into a Bussmann-series fuse holder, align with the circuit protection requirements, and ensure proper seating for reliable electrical contact. Verify clearance and secure the endcaps to prevent movement in operation.
KTK-30 is rated for 30 A with an interrupt rating of 100 kAIC at 600 V. It operates at a nominal voltage of up to 600 V, suitable for control circuits, lighting circuits, and metering applications while maintaining fast response to overloads.
Yes. The KTK-30 is designed for control circuits, lighting circuit protection, and meter circuits, providing robust overcurrent protection in industrial panels with a small footprint and compatible Bussmann form factor.
The KTK-30 is RoHS compliant and CE marked, ensuring regulatory compliance for European markets and restricted hazardous substances control in line with EU directives.
Its small footprint enables dense panel packing, reducing enclosure size and wiring complexity. The 100 kAIC rating lowers downtime risk from high-energy faults, and standard ferrule-term connections simplify stocking and replacements, delivering lower total cost of ownership.
