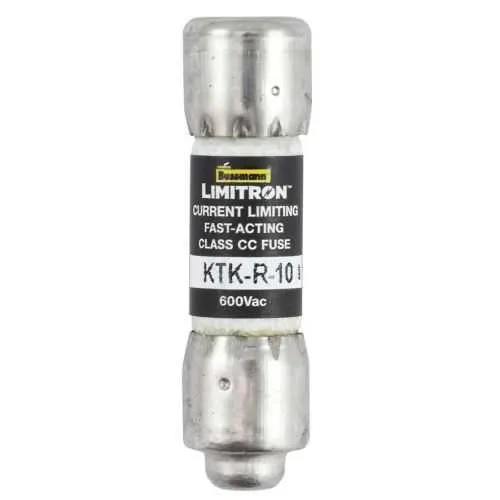

Eaton KTK-R-10 Fuse - Class CC, UL Listed
Part Number: KTK-R-10
Quick Summary
KTK-R-10 fuse is a fast-acting current-limiting device for industrial control panels. It delivers reliable protection where space is limited and high fault currents are possible. Engineers frequently contend with nuisance trips and limited interrupt ratings; the KTK-R-10 helps by combining a dual-element design with a rugged rejection-style construction. This fuse carries UL Listed, CSA Certified, CE Marked and RoHS Compliant certifications, supporting global compliance. In practice, it enables safer, more efficient power distribution while simplifying spare-part inventories and maintenance planning for lighting, motors, and capacitive loads.
Product Information
Extended Description
KTK-R-10 Eaton: Eaton Bussmann Series Class CC fuse, KTK-R, fast-acting, dual-element current limiting fuse, 10 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series KTK-R fuse
Catalog Number
KTK-R-10
UPC
051712420686
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting fast-acting fuse
Special features
Rejection style
Application
Industrial controls panels and machinery, street lighting, general lighting, capacitors and distribution
Amperage Rating
10 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end Ferrule
Response time
See time current curve
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 V
Bussmann Full Line Catalog
Bussmann Full Line Catalog
Bussmann Full Line Catalog
Bussmann series Fuseology
Eaton Specification Sheet - KTK-R-10
KTK-R Spec Sheet
KTK-R Spec Sheet
Feature: Current-limiting, dual-element design provides fast fault interruption with high surge tolerance → Business Impact: reduces damage to conductors and equipment, minimizes arc-flash energy, and lowers downtime during fault events → Application: industrial controls panels and machinery with moderate to high inrush. Feature: 200 kAIC interrupt rating at 600 VAC ensures reliable clearing of severe faults → Business Impact: protects power distribution networks from catastrophic failures, improving system reliability and uptime → Application: street lighting, general lighting, and capacitive distribution in industrial facilities. Feature: Rejection-style construction prevents incorrect fuse insertion and cross-part interchange → Business Impact: lowers maintenance errors and replacement costs, streamlining spares management → Application: modular fuse blocks in control panels and machine wiring. Feature: Ferrule-end connections provide robust, quick-terminals for easy installation → Business Impact: reduces assembly time and improves vibration resistance in harsh environments → Application: panel assemblies subject to vibration or frequent servicing. Feature: 10 A rating with Class CC designation suits controlled loads while maintaining fast-acting protection → Business Impact: aligns with typical motor and control circuits, reducing nuisance trips without compromising safety → Application: low- to mid-range industrial loads. Feature: Certifications including UL Listed, CSA Certified, CE Marked, and RoHS Compliant ensure regulatory readiness across markets → Business Impact: accelerates global deployment and audit readiness while supporting sustainability goals → Application: multinational manufacturing and facilities with stringent compliance needs. Feature: Time-current characteristics are defined by Eaton’s specification curves → Business Impact: engineers can precisely model protection coordination and minimize downtime → Application: coordination studies for complex electrical distributions.
Get a Quick Quote for a Eaton KTK-R-10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTK-R-10?
Enquire Now
FAQs
The KTK-R-10 is a current-limiting, fast-acting Class CC fuse from Eaton’s Bussmann series. It is designed for industrial control panels, street lighting, general lighting, and distribution equipment. Its 10 A rating, dual-element design, and 200 kAIC interrupt rating support reliable protection in high-current environments while maintaining compact form factors and easy installation with ferrule ends.
Key specifications include a 10 A amperage rating, 600 V voltage rating, 200 kAIC interrupt rating, dual-element current-limiting design, Class CC classification, and non-indicating fuse indicators. It uses ferrule-end connections, has a 1.5 in length, 0.41 in width and height, and a weight of 0.18 lb. It is UL Listed, CSA Certified, CE Marked, and RoHS compliant.
KTK-R-10 offers reliable short-circuit protection with fast-acting current limitation, reducing conductor and component damage during faults. The rejection-style design minimizes wrong replacements, while ferrule-end connections speed installation. Its compact Class CC form factor fits crowded enclosures, and the 200 kAIC rating provides robust protection in high-inrush applications common to controls panels and distributed loads.
The KTK-R-10 is UL Listed, CSA Certified, and CE Marked, with RoHS compliance. These certifications verify safety, performance, and environmental compliance across North American and European markets, enabling global deployment in industrial facilities, lighting projects, and equipment with strict regulatory requirements.
By combining high interrupt capability with a compact, easy-to-install ferrule-end design, the KTK-R-10 reduces downtime during faults and simplifies maintenance logistics due to standardized spares. Its long-term reliability and regulatory compliance minimize troubleshooting time, extend device life, and lower total cost of ownership in manufacturing environments and power-distribution networks.
