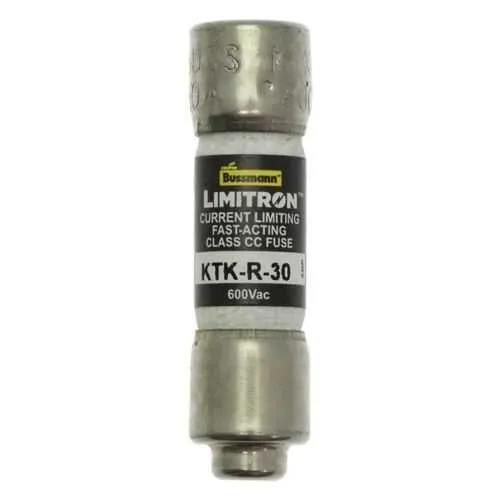

Eaton KTK-R-30 Fuse - Class CC, 200 kAIC Interruption Rating
Part Number: KTK-R-30
Quick Summary
The Eaton KTK-R-30 fuse is a fast-acting Class CC protection device designed for industrial control panels and machinery. Design teams often struggle with nuisance trips and inadequate protection in compact enclosures, risking equipment damage and downtime. UL Listed and CSA Certified, with CE marking RoHS compliant, these fuses meet major global safety and environmental standards. Suitable for industrial controls, street lighting, capacitors, and distribution panels, the KTK-R-30 helps minimize unplanned outages while supporting regulatory compliance. With a 30 A rating and 600 V capability, it integrates into a broad range of control circuits. Its dual-element design offers reliable current limiting during faults, reducing arc energy and downstream damage.
Product Information
Extended Description
KTK-R-30 Eaton: Eaton Bussmann Series Class CC fuse, KTK-R, fast-acting, dual-element current limiting fuse, 30 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series KTK-R fuse
Catalog Number
KTK-R-30
UPC
051712420747
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting fast-acting fuse
Special features
Rejection style
Application
Industrial controls panels and machinery, street lighting, general lighting, capacitors and distribution
Amperage Rating
30 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end Ferrule
Response time
See time current curve
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 V
Bussmann Full Line Catalog
Bussmann Full Line Catalog
Bussmann Full Line Catalog
Bussmann Full Line Catalog
Bussmann series Fuseology
Eaton Specification Sheet - KTK-R-30
KTK-R Spec Sheet
KTK-R Spec Sheet
Current-limiting fast-acting operation reduces fault energy quickly, protecting wiring and downstream components. This minimizes downtime and repair costs during short circuits. Ideal for industrial control panels, street lighting, and distribution networks. Dual-element design improves surge resistance and reliability, delivering higher uptime in demanding environments. 30 A amperage rating aligns with common control circuits, reducing nuisance trips while maintaining protective headroom. The 200 kAIC interrupt rating supports high fault currents typical in switchgear and feeders, enhancing system safety. Rejection-style ferrule-end connections prevent incorrect replacements and simplify field wiring, improving installation reliability. Rated for 600 V and RoHS/CE/UL certifications, the KTK-R-30 provides broad compatibility and global compliance for modern electrical installations. Compatible with Bussmann series components, it streamlines stocking and maintenance across sites.
Get a Quick Quote for a Eaton KTK-R-30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTK-R-30?
Enquire Now
FAQs
KTK-R-30 uses ferrule end connections (Ferrule end x ferrule end) designed for quick, reliable field wiring. The standard ferrule-terminals ensure a secure termination with Bussmann-series compatible components, reducing installation errors. This design also facilitates straightforward field replacement and minimizes rework in control panels and distribution cabinets.
KTK-R-30 provides a 200 kAIC interrupt rating, meaning it can safely interrupt high-energy fault currents. As a current-limiting fast-acting fuse, it sharply reduces peak fault energy, limiting damage to conductors and neighboring devices. This behavior translates to shorter downtime and easier upstream protection coordination in 600 V systems.
Yes. With a 30 A rating and 600 V capability, it is well-suited for machine control, industrial controls panels, street lighting, general lighting, capacitors, and distribution circuits. The rejection-style design helps prevent mis-matching during maintenance, while dual-element construction bolsters reliability in fluctuating loads typical of outdoor lighting and panel assemblies.
KTK-R-30 is UL Listed, CSA Certified, and CE Marked RoHS Compliant. These certifications verify safety, performance, and environmental compliance, enabling global deployments across North America and Europe. Meeting these standards helps streamline procurement, reduces compliance risk, and supports regulatory approvals in industrial facilities.
The fuse is designed for long life with minimal maintenance, reducing preventive service cycles. Its high interrupt rating and robust current-limiting protection lower the likelihood of collateral damage during faults, translating to lower repair costs and downtime. Standardized packaging and compatibility with Bussmann-series components also improve spare part availability and overall return on investment for multi-site deployments.
