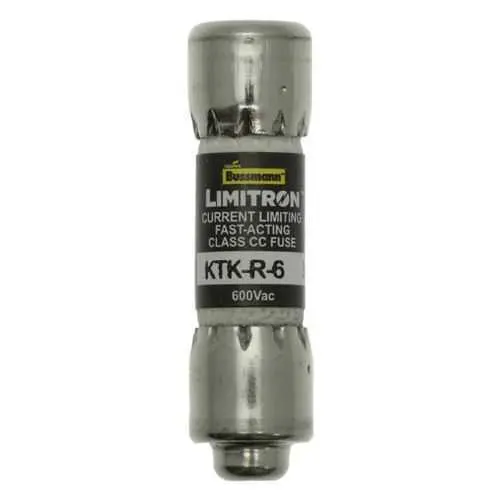

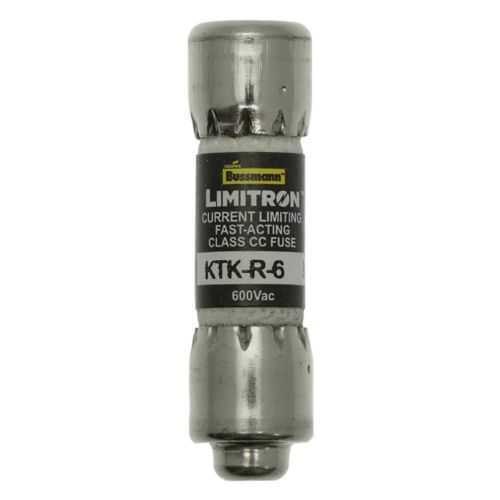

Eaton KTK-R-6 Fuse - Class CC 200 kAIC UL Listed
Part Number: KTK-R-6
Quick Summary
Eaton KTK-R-6 fuse is a current-limiting fast-acting device designed for industrial controls panels and machinery. Engineers struggle with nuisance trips and limited panel space, and the KTK-R-6 addresses these by combining dual-element protection with a compact ferrule-end design and a high 200 kAIC interrupt rating. It carries CE Marked, RoHS compliant, UL Listed, and CSA Certified credentials, supporting global deployments and regulatory compliance. This fuse aligns with maintenance and procurement workflows, offering standard 1.5 inch length and 0.41 inch dimensions, and a 6 A rating in a 10-pack packaging for easy stocking and inventory control. In short, it delivers reliable protection, compatibility with Bussmann-series components, and value across industrial applications.
Product Information
Extended Description
KTK-R-6 Eaton: Eaton Bussmann Series Class CC fuse, KTK-R, fast-acting, dual-element current limiting fuse, 6 Amp rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series KTK-R fuse
Catalog Number
KTK-R-6
UPC
051712420655
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting fast-acting fuse
Special features
Rejection style
Application
Industrial controls panels and machinery, street lighting, general lighting, capacitors and distribution
Amperage Rating
6 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end Ferrule
Response time
See time current curve
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 V
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
Bussmann series Fuseology
Eaton Specification Sheet - KTK-R-6
KTK-R Spec Sheet
KTK-R Spec Sheet
Feature: Current-limiting fast-acting Class CC fuse rated at 6 A with 600 V and 200 kAIC interrupt rating. Benefit: Quickly clamps fault currents to protect downstream equipment, minimizing downtime and extending component life in harsh industrial environments. Application: Ideal for industrial control panels, machinery, street lighting, capacitors, and distribution networks, delivering measurable uptime improvements while meeting stringent spec requirements. Feature: Dual-element design and rejection-style construction. Benefit: Enhanced reliability under short-circuit conditions and reduced risk of improper replacement, lowering maintenance costs. Application: Supports safe, compliant operation in diverse installations with minimal wrong-part risk. Feature: Ferrule end connections and compact form. Benefit: Easy retrofit and installation in standard Bussmann housings, conserving panel space with a 1.5 in length and 0.41 in cross-section. Application: Fits common panel footprints and supports quick maintenance cycles. Feature: 600 V rating and 0.18 lb weight. Benefit: Safe operation across mid- to high-voltage systems while minimizing weight load in compact assemblies. Application: Widely used in power distribution, lighting and control circuits. Feature: Packaging of 10 units and non-indicating status. Benefit: Streamlined stocking, predictable lead times, and reduced maintenance complexity in high-velocity environments. Application: Facilitates procurement for OEMs and maintenance teams seeking standardized Fuseology components.
Get a Quick Quote for a Eaton KTK-R-6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTK-R-6?
Enquire Now
FAQs
The KTK-R-6 uses ferrule-end connections and a compact 1.5 inch overall length with 0.41 inch width and height, designed for standard Bussmann Class CC holders. It operates at 600 V and 6 A, and ships in packs of 10, making it straightforward to fit into common panel layouts and maintenance inventories.
KTK-R-6 is a current-limiting fast-acting fuse, so fault currents are interrupted quickly to minimize arc energy and downstream damage. Its 200 kAIC interrupt rating provides strong short-circuit protection, with response governed by the defined time-current curve, ensuring reliable protection at and near the 6 A rating.
Yes. With a 600 V rating, 6 A current rating, and 200 kAIC interrupt capability, the KTK-R-6 is well-suited for industrial control panels, street lighting, capacitors, and distribution networks, delivering robust protection in diverse environments while meeting regulatory expectations.
The KTK-R-6 is UL Listed, CSA Certified, CE Marked, and RoHS Compliant. These certifications support regulatory compliance in North America and Europe, simplify supplier qualification, and bolster confidence in safety and reliability across multinational installations.
Stocking is simplified by standard packaging of 10 units, while the non-indicating, rejection-style design reduces the risk of incorrect replacements. Its robust ratings and compatibility with Bussmann series components help lower downtime and streamline procurement for maintenance teams and OEM projects.
