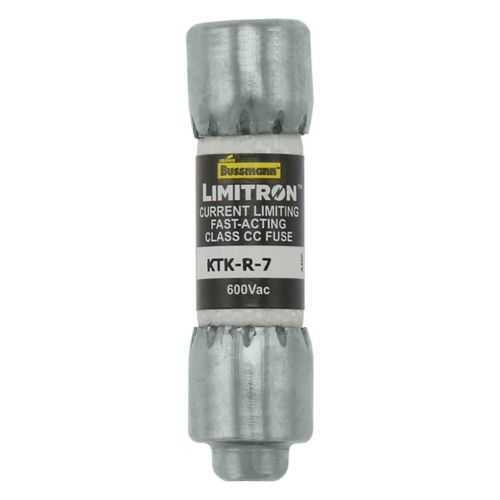

Eaton KTK-R-7 Fuse - 200 kAIC Class CC UL Listed
Part Number: KTK-R-7
Quick Summary
The Eaton KTK-R-7 fuse provides fast-acting protection for industrial controls and machinery, safeguarding critical loads in control panels. In demanding panels, nuisance trips and undersized interrupt ratings can stall production and drive maintenance costs. UL Listed, CSA Certified, and RoHS Compliant certifications provide regulatory confidence for global deployments. With ferrule-end connections and a robust 600 V rating, it fits standard Bussmann components and helps streamline panel assembly. This combination translates to improved uptime, easier procurement, and lower total cost of ownership for industrial facilities. For engineers and procurement teams, the KTK-R-7 delivers a reliable, regulator-friendly solution across lighting, motor control, and distribution applications.
Product Information
Extended Description
KTK-R-7 Eaton: Eaton Bussmann Series Class CC fuse, KTK-R, fast-acting, dual-element current limiting fuse, 7 Amp rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series KTK-R fuse
Catalog Number
KTK-R-7
UPC
051712420662
EAN
5027590445719
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.02 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
UL Listed CSA Certified
Type
Current-limiting fast-acting fuse
Special features
Rejection style
Application
Industrial controls panels and machinery, street lighting, general lighting, capacitors and distribution
Amperage Rating
7 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end Ferrule
Response time
See time current curve
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 V
Bussmann Full Line Catalog
Bussmann Full Line Catalog
Bussmann Full Line Catalog
Bussmann Full Line Catalog
Bussmann series Fuseology
Eaton Specification Sheet - KTK-R-7
KTK-R Spec Sheet
KTK-R Spec Sheet
Feature → Fast-acting, current-limiting design reduces fault energy and arc exposure, resulting in lower conductor damage and shorter downtime. Business impact → Improves equipment longevity and panel reliability, supporting safer, more predictable maintenance windows. Application → Ideal for industrial control panels and distribution blocks where rapid fault clearance is critical. Feature → Class CC dual-element architecture provides consistent performance under surge and transient events. Business impact → Enhances selective coordination and reduces nuisance trips, yielding lower operational costs. Application → Suitable for machines with mixed fault profiles in manufacturing lines and process equipment. Feature → 7 A, 600 V rating with 200 kAIC interrupt capacity delivers robust protection on common control circuits. Business impact → minimizes fire and arc risk while supporting compliant short-circuit handling. Application → panel mains, lighting drivers, capacitive networks, and distribution feeders. Feature → Rejection-style ferrule-end termination ensures reliable, foolproof wiring and faster field replacement. Business impact → Reduces mis-wiring risk and installation time, improving maintenance efficiency. Application → Field service and OEM panel builds using ferrule-term connections. Feature → RoHS Compliant, CE Marked, UL Listed, CSA Certified with documented time-current performance. Business impact → Simplifies multi-region compliance and procurement with trusted, predictable protection. Application → Global manufacturing facilities, street lighting, industrial controls, and high-energy distribution systems.
Get a Quick Quote for a Eaton KTK-R-7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTK-R-7?
Enquire Now
FAQs
Yes. The KTK-R-7 uses ferrule-end x ferrule-end connections designed for Bussmann Series Class CC devices, simplifying installation in standard control panels and distribution gear. Its 1.5 in length and compact 0.41 in dimensions align with common DIN-rail and cabinet layouts, enabling quick retrofits and consistent terminations in new builds.
The dual-element current-limiting design rapidly interrupts fault currents, limiting peak let-through energy and reducing conductor heating and arc duration. With a 200 kAIC rating, it maintains dependable protection during high-energy faults, while providing selective coordination with upstream devices to minimize collateral outages in complex 600 V distribution networks.
KTK-R-7 is well-suited for industrial controls panels, street and general lighting, capacitors, and distribution networks in manufacturing plants and infrastructure projects. Its 7 A rating and 600 V capability cover small control circuits and auxiliary loads, while UL Listed and CSA Certified status supports compliance in multinational facilities and safety programs.
KTK-R-7 meets RoHS compliance, CE marking, UL Listed, and CSA certification. These approvals support regulatory compliance, facilitate cross-border procurement, and help simplify vendor qualification processes, especially in environments with strict safety, environmental, and reliability requirements.
Leverage the time-current curve guidance from Eaton datasheets to optimize replacement timing and avoid nuisance trips. Stock ferrule-end fuses in standard packs (10 per package) for rapid field swaps, perform periodic inspections of panel wiring, and document fault events to tune protection settings. These steps reduce downtime and extend equipment life, improving total cost of ownership.
