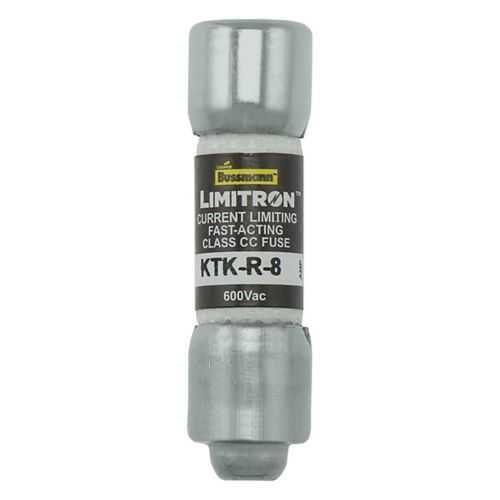

Eaton KTK-R-8 Fuse - Class CC, 200 kAIC, UL Listed
Part Number: KTK-R-8
Quick Summary
KTK-R-8 fuse is a current-limiting fast-acting device designed for protecting industrial controls panels and machinery. In harsh plant environments, nuisance trips and frequent part replacements drive downtime and operating costs. UL Listed and CSA Certified provide safety assurance, while CE marking and RoHS compliance support worldwide deployments. The rugged melamine tube construction and dual-element design improve surge handling and minimise collateral damage. Designed for industrial protection, these fuses integrate easily with Bussmann series accessories, improving panel reliability. They also enable faster maintenance and lower total cost of ownership, delivering measurable value for engineers and procurement teams. Its 8 A rating suits common protective schemes in control cabinets and lighting ballast circuits.
Product Information
Extended Description
KTK-R-8 Eaton: Eaton Bussmann Series Class CC fuse, KTK-R, fast-acting, dual-element current limiting fuse, 8 Amp rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series KTK-R fuse
Catalog Number
KTK-R-8
UPC
051712420679
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting fast-acting fuse
Special features
Rejection style
Application
Industrial controls panels and machinery, street lighting, general lighting, capacitors and distribution
Amperage Rating
8 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end Ferrule
Response time
See time current curve
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 V
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
Bussmann series Fuseology
Eaton Specification Sheet - KTK-R-8
KTK-R Spec Sheet
KTK-R Spec Sheet
Feature: Current-limiting fast-acting design with dual elements. Benefit: Quickly limits fault current to protect transformers, capacitors, and drive electronics, reducing damage and downtime. Application: Industrial controls panels and distribution networks, where rapid clearance minimizes collateral damage and maintenance costs. Feature: Rejection style construction. Benefit: Prevents improper fuse replacement, ensuring correct protection and simplifying field servicing. Application: Panel builds and retrofit projects in manufacturing and street lighting. Feature: High interruption rating of 200 kAIC. Benefit: Safe interruption of high fault currents, increasing system safety and allowing upstream protection coordination. Application: Large control panels and high-power distribution where fault currents can spike. Feature: 600 V voltage rating with ferrule-end connections. Benefit: Robust, reliable connections that resist arcing and ease installation. Application: Motor control centers and general distribution tasks. Feature: Compact form factor (1.5 in length) and standard packaging (10 per pack) with melamine tube. Benefit: Space-efficient installation in crowded enclosures and streamlined procurement. Application: New builds and retrofits in compact electrical cabinets. Feature: Compliance suite (UL Listed, CSA Certified, CE RoHS). Benefit: Global deployment readiness and regulatory assurance, reducing regional variance in approvals. Application: International projects and multinational equipment deployments.
Get a Quick Quote for a Eaton KTK-R-8
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTK-R-8?
Enquire Now
FAQs
KTK-R-8 installs like other Bussmann series Class CC fuses with ferrule-end terminations. Ensure the panel fuse holder is rated for 600 V and 8 A, and that ferrule-end conductors are properly crimped to the end caps. Maintain proper clearance and the time-current curve for selectivity and fuse coordination. This design supports straightforward replacement during maintenance, reducing downtime.
The KTK-R-8 is a current-limiting fast-acting fuse whose time-current characteristics are documented in Eaton’s datasheets. In motor drives and capacitive circuits, the fuse clears fast on short circuits yet tolerates temporary inrush, protecting downstream equipment without nuisance trips. Refer to the specific time-current curve to ensure coordination with upstream protections and drive protection schemes.
Yes. With an 8 A rating and 600 V capability, along with a high 200 kAIC interrupt rating, the KTK-R-8 suits lighting feeders, capacitors, and distribution paths in street and general lighting apps. Its dual-element design provides reliability against transient surges common in outdoor environments, while the ferrule-end connections support robust outdoor cabinet installations.
The KTK-R-8 is UL Listed, CSA Certified, CE Marked, and RoHS compliant. These certifications support global deployment by meeting safety, performance, and environmental standards across North America, Europe, and other regions. This reduces the regulatory burden during procurement and installation in multinational facilities.
The KTK-R-8 contributes to ROI through minimized downtime from fewer nuisance trips, reduced replacement costs due to higher fault tolerance, and easier maintenance thanks to non-indicating, rejection-style design. Its compact form and standard packaging also streamline procurement and assembly, lowering labor and inventory carrying costs over the asset life.
