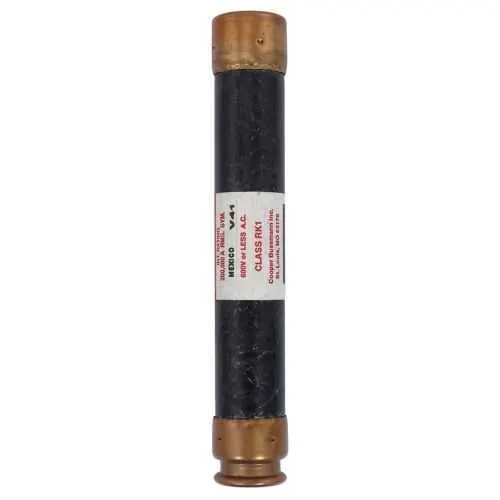

Eaton KTS-R-1 Fuse - Class RK1, 200 kAIC, 600V
Part Number: KTS-R-1
Quick Summary
The Eaton KTS-R fuse provides fast-acting overcurrent protection for industrial control panels and power distribution systems. Engineers often confront nuisance trips, crowded enclosures, and the challenge of selecting protection that won’t compromise uptime. Key compliance elements include CE marking and the Class RK1 designation, backed by a 200 kAIC interrupt rating at 600 Vac for demanding fault conditions. With a 1 A rating and a compact 5 in length, it fits neatly into standard holders while delivering reliable, low-energy protection that supports regulatory and OEM requirements.
Product Information
Extended Description
KTS-R-1 Eaton: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 1 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series KTS-R fuse
Catalog Number
KTS-R-1
UPC
051712417006
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Number of elements
1
Packaging type
Standard
Class
Class RK1
Fuse indicator
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTS-R 600 V Class RK1 fuse data sheet no. 1044
Feature: Fast-acting current-limiting protection for 600 V circuits → Business Impact: Reduces fault energy, minimizes arcing damage, and protects downstream devices; Application: Control panels, motor drives, and power supplies. Feature: Class RK1 designation and standard form factor → Business Impact: Simplifies procurement and replacement across legacy RK1 installations; Application: Retrofit and new panel builds in manufacturing lines. Feature: 200 kAIC interrupt rating at 600 Vac → Business Impact: Handles high fault currents, enhancing system reliability and safety; Application: Main feeders and high-energy distribution points. Feature: Rejection-style construction → Business Impact: Reduces installation errors and mis-wiring in dense enclosures; Application: Rejection-style holders in control cabinets. Feature: 1 A rating with compact 5 in length and 0.81 in diameter → Business Impact: Protects small circuits without overburdening panel space; Application: Sensing circuits, PLC I/O, and low-power circuitry. Additional: CE marked compliance supports European installations and broad market use, aligning with OEM requirements and helping streamline compliance documentation.
Get a Quick Quote for a Eaton KTS-R-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTS-R-1?
Enquire Now
FAQs
The KTS-R-1 is a 5 inch long, 0.81 inch diameter Class RK1 fuse with a rejection-style design that fits standard fuse holders used in industrial control panels and power distribution enclosures. It pairs well with RK1-compatible holders and common European and North American panel architectures.
A 200 kAIC interrupt rating at 600 Vac means the fuse can safely interrupt very high fault currents without excessive arcing or device damage. This reduces the risk of collateral damage to downstream components, improves system reliability, and supports protection coordination in feeders and main distribution points.
Yes. The KTS-R-1 is CE marked and designated as Class RK1, ensuring alignment with European safety requirements and standard protection class expectations in industrial installations. This combination helps streamline compliance documentation and OEM approvals.
The rejection-style design ensures the fuse can only insert in the correct orientation, reducing mis-wiring risk in crowded panels. During installation, verify the holder matches RK1 rejection features, and ensure space for the 5 in length fits within your enclosure layout to avoid clearance issues.
Using the KTS-R-1 can reduce downtime due to fewer nuisance trips thanks to reliable fast-acting protection, and its compact size supports higher enclosure density, lowering space and replacement part costs. Long-term maintenance benefits include streamlined stocking with a standardized RK1 family and fewer customer service interruptions from protection failures.
