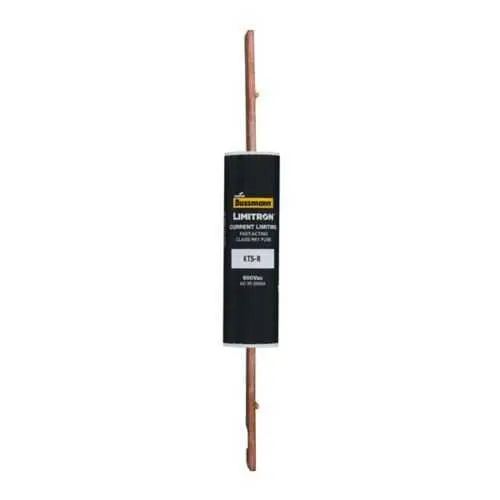

Eaton KTS-R-200 Fuse - Class RK1, 200A, 600V
Part Number: KTS-R-200
Quick Summary
The Eaton KTS-R-200 fuse is a fast-acting current-limiting device designed for industrial power circuits. Users often wrestle with nuisance fuse trips and limited selectivity that disrupt production and drive maintenance costs. This Class RK1, CE-marked fuse delivers a 200 A rating with a robust 200 kAIC interrupt rating at 600 Vac, enabling precise coordination in modern control panels. Its blade-end connections and knife blade design simplify field installation and enhance mechanical reliability. Built for low voltage branch circuits, it integrates with Bussmann series components, supports standard catalogs, and helps reduce spare-part inventories—driving lower total cost of ownership in high-demand manufacturing environments.
Product Information
Extended Description
KTS-R-200 Eaton: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 200 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series KTS-R fuse
Catalog Number
KTS-R-200
UPC
051712417204
Product Length/Depth
9.63 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
1.23 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
200 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Material
Melamine glass tube
Number of elements
1
Packaging type
Standard
Class
Class RK1
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Special features
Knife blade
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTS-R 600 V Class RK1 fuse data sheet no. 1044
Feature: Fast-acting current-limiting design. Business impact: minimizes energy let-through during faults, reducing arc-flash exposure and protecting downstream equipment. Application: protection of control panels, motor starters, and machine controls. Feature: High interrupt rating of 200 kAIC at 600 Vac. Business impact: strengthens feeder protection and enables safer shutdowns under fault conditions. Application: distribution blocks and heavy-duty industrial feeders. Feature: Class RK1 compatibility with blade-end connections. Business impact: easy, secure installation reduces downtime and spare-parts complexity. Application: retrofit and new-panel builds in manufacturing lines. Feature: Knife blade design and single-element construction. Business impact: improved reliability, consistent performance, and straightforward field replacement. Application: rugged factory environments with frequent maintenance cycles. Feature: CE compliance and standard data resources. Business impact: regulatory alignment and faster procurement with accessible datasheets and catalogs. Application: global supply chains and multi-site deployments.
Get a Quick Quote for a Eaton KTS-R-200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTS-R-200?
Enquire Now
FAQs
The KTS-R-200 uses blade-end x blade-end connections designed for straightforward terminal fitment in Bussmann series panels and standard low-voltage enclosures. Its 9.63 in length and 1.5 in width/height fit common control-safety footprints, minimizing layout changes and enabling quick swaps during maintenance.
The KTS-R-200 is rated 200 A with an interrupt rating of 200 kAIC at 600 Vac, and a voltage rating of 600 V. This combination supports robust short-circuit protection for high-demand industrial feeders while maintaining safe, code-compliant performance.
Yes, the KTS-R-200 is CE marked, aligning with European conformity requirements. It is built as a Class RK1 fuse suitable for low-voltage circuits, and its 600 V rating supports common European industrial applications where CE compliance matters.
Ideal for control panels, motor control centers, and power distribution blocks in manufacturing and process industries, the KTS-R-200 provides reliable, fast-acting protection with high interrupt capability, helping to prevent equipment damage and reduce unplanned downtime.
Technical data sheets and catalogs are available through Eaton's Bussmann resources, including the Bussmann series data sheet no. 1044 and Low Voltage Branch Circuit Fuse Chapter catalogs. These documents provide wiring, mounting, and specification details to support proper selection and installation.
