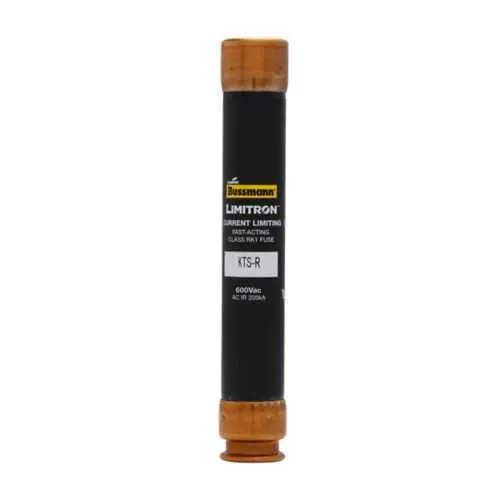

Eaton KTS-R-3 Fuse - Class RK1, 200 kAIC @ 600V
Part Number: KTS-R-3
Quick Summary
The Eaton Bussmann KTS-R-3 fuse provides fast-acting overcurrent protection for industrial control panels and motor circuits. Engineers often struggle with nuisance tripping, limited selectivity, and compatibility when sizing fuses for high-energy systems. CE Marked and designed as a Class RK1 current-limiting fuse, it delivers reliable protection with a 600 V rating and a 200 kAIC interrupt capability. With ferrule-end connections and a compact 0.8 in depth, this 3 A device fits standard industrial enclosures while minimizing space impact and installation time. For panel builders and machine integrators, the KTS-R-3 reduces total cost of ownership through predictable performance and easy sourcing from Eaton Bussmann catalogs and compatible Bussmann series components.
Product Information
Extended Description
KTS-R-3 Eaton: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 3 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series KTS-R fuse
Catalog Number
KTS-R-3
UPC
051712417013
EAN
5027590446419
Product Length/Depth
0.8 in
Product Height
5 in
Product Width
0.8 in
Product Weight
0.13 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
3 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Material
Melamine glass tube
Number of elements
1
Packaging type
Standard
Class
Class RK1
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Knife blade
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTS-R 600 V Class RK1 fuse data sheet no. 1044
Feature → Business Impact → Application: Fast-acting, current-limiting Class RK1 fuse minimizes arc energy during faults, protecting conductors and downstream electronics while enabling faster downstream troubleshooting in control panels and motor circuits. This translates to reduced downtime and lower replacement costs in manufacturing lines and packaging machines. Feature → Business Impact → Application: An interrupt rating of 200 kAIC at 600 V allows safe interruption of high fault currents common in industrial feeders, increasing system reliability and improving workflow continuity in OEM assemblies and distribution panels. Feature → Business Impact → Application: Ferrule end x ferrule end connections provide quick, secure wiring terminations, simplifying field installation, improving contact integrity, and reducing commissioning time in new builds or retrofits. Feature → Business Impact → Application: Melamine glass tube construction offers robust thermal and chemical resistance, delivering longer fuse life in harsh environments such as washdown areas or dusty industrial spaces, supporting a lower total cost of ownership. Feature → Business Impact → Application: CE marking and compliance with RK1 standards offer confidence for global projects and route-to-market; users can rely on standardization across Eaton Bussmann products, easing procurement and maintenance. Feature → Business Impact → Application: Compact dimensions—0.8 in width/depth and 5 in height—facilitate installation in tight panels and compact control enclosures, enabling more efficient panel layouts and better space utilization in machine builds.
Get a Quick Quote for a Eaton KTS-R-3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTS-R-3?
Enquire Now
FAQs
The KTS-R-3 is a 3 A, fast-acting Class RK1 current-limiting fuse rated for 600 V and 200 kAIC, ideal for electrical protection in control panels, motor drives, and power distribution circuits. Its compact size and ferrule-end connections simplify panel installation and improve selective coordination in machine controls.
Yes. The KTS-R-3 uses ferrule-end x ferrule-end connections and is designed to integrate seamlessly with Eaton Bussmann series components, enabling straightforward sourcing, consistent specifications, and reliable field terminations in OEM assemblies.
The KTS-R-3 offers a 200 kAIC interrupt rating at 600 Vac, with a voltage rating of 600 V, providing robust protection against high-energy faults while maintaining safe operation in common industrial voltage levels.
Yes. The KTS-R-3 is CE marked and classified as Class RK1, aligning with industry standards for fast-acting, current-limiting fuses used in general purpose electrical protection across European and international panels.
Ensure proper fuse sizing for the load and fault currents, use compatible Bussmann components, and follow enclosure guidelines to minimize heat buildup. The KTS-R-3’s ferrule-terminals and compact footprint simplify wiring, reduce commissioning time, and contribute to lower lifecycle costs through fewer replacements and easier maintenance.
