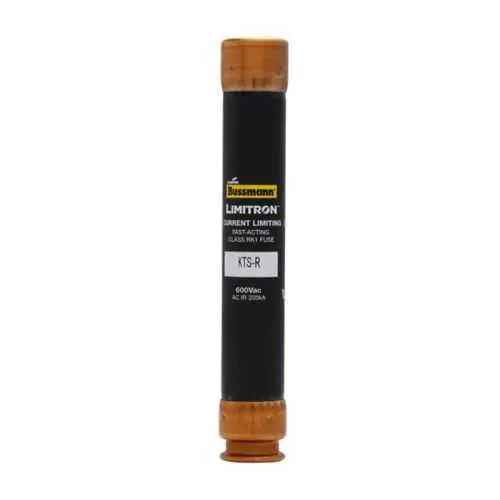

Eaton KTS-R-30 Fuse - Class RK1, 200 kAIC at 600V
Part Number: KTS-R-30
Quick Summary
Eaton KTS-R-30 fuse is a fast-acting, current-limiting protection device designed for industrial control panels and power circuits. It helps engineers avoid nuisance outages by delivering reliable interruption during faults while minimizing let-through energy. The fuse is CE marked and supports RoHS verification resources, reinforcing compliance with global safety standards. This solution integrates smoothly with Bussmann RK1 holders, offering a compact footprint and straightforward field retrofits. By pairing robust protection with easy installation, the KTS-R-30 delivers measurable reductions in downtime and maintenance costs for panel builders and machine developers.
Product Information
Extended Description
KTS-R-30 Eaton: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 30 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series KTS-R fuse
Catalog Number
KTS-R-30
UPC
051712417075
EAN
5027590446426
Product Length/Depth
0.8 in
Product Height
5 in
Product Width
0.8 in
Product Weight
0.13 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
30 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Material
Melamine glass tube
Number of elements
1
Packaging type
Standard
Class
Class RK1
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Knife blade
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTS-R 600 V Class RK1 fuse data sheet no. 1044
Feature: Fast-acting current-limiting Class RK1 fuse. Business Impact: Rapid fault interruption reduces collateral damage to wiring and equipment, lowering repair costs and downtime. Application: Ideal for motor starters and control circuits in industrial panels. Feature: 30 A amperage rating with a 200 kAIC interrupt rating at 600 Vac. Business Impact: High fault-current resilience protects feeders and contactors, supporting safer, more reliable operations in high-energy environments. Application: Main distribution and branch circuits in harsh industrial settings. Feature: Ferrule end x ferrule end connections. Business Impact: Simple, secure installation with minimal risk of loose connections, improving reliability during maintenance and rework. Application: Retrofit in RK1 fuse clips and standard bussing assemblies. Feature: Knife blade design. Business Impact: Clean break under fault conditions reduces arcing and improves breaker coordination, enhancing device longevity. Application: Heavy-duty industrial applications where quick fault isolation is critical. Feature: Non-indicating fuse. Business Impact: Cost-efficient protection that integrates with separate status-monitoring strategies, enabling lean panel design. Application: Control cabinets where remote or automated monitoring is used. Feature: Melamine glass tube construction. Business Impact: Durable insulation and flame resistance support long service life in demanding environments. Application: Electrical protection in manufacturing and process environments. Feature: 1-element construction with CE Marked compliance. Business Impact: Simplifies sourcing and standardization while meeting regulatory expectations for industrial equipment. Application: Global manufacturing facilities requiring reliable RK1 protection.
Get a Quick Quote for a Eaton KTS-R-30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTS-R-30?
Enquire Now
FAQs
To install the KTS-R-30, align the ferrule-end leads with the RK1 fuse clips, press firmly until seated, and verify the fuse is correctly oriented for the circuit. Use standard safety procedures and ensure the panel is de-energized before replacement. The ferrule-end design helps achieve a secure, repeatable connection with minimal risk of loosening over time.
The KTS-R-30 is a 30 A, fast-acting, current-limiting Class RK1 fuse with an interrupt rating of 200 kAIC at 600 Vac. It features a ferrule-end connection and a melamine glass tube construction, offering robust protection for industrial panels and feeders while maintaining compatibility with standard RK1 holders.
Yes. The fuse is rated for 600 V and provides a high interrupt rating of 200 kAIC, making it suitable for motor control centers and other high-energy applications where rapid fault isolation and reliable protection are essential. Its Class RK1 design ensures compatibility with common RK1 fuse clips in motor drive architectures.
The KTS-R-30 carries CE marking, confirming compliance with essential European safety requirements. Eaton also provides resources for RoHS verification through their RoHS search tools, helping confirm environmental compliance for global deployments and regulated markets.
By combining fast-acting, current-limiting protection with a robust 200 kAIC rating at 600 Vac, the KTS-R-30 minimizes damage during faults, reduces downtime, and supports reliable panel performance. Its ferrule-end design enables quick, error-free installation in RK1 clips, resulting in faster builds and lower maintenance costs over the equipment life cycle.
