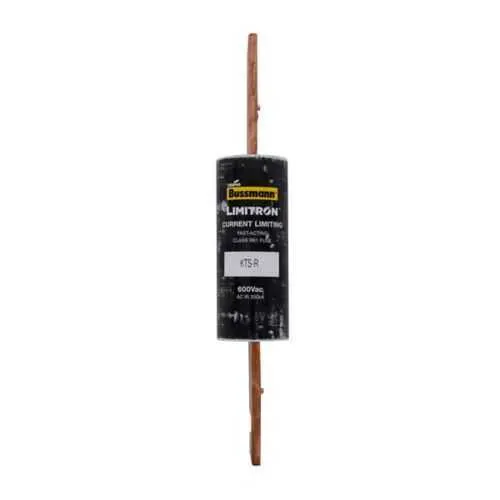

Eaton KTS-R-350 Fuse - 200 kAIC at 600 Vac
Part Number: KTS-R-350
Quick Summary
Eaton KTS-R-350 fuse provides fast-acting overcurrent protection for industrial power distribution panels and switchgear. This design helps minimize unplanned downtime by reliably interrupting fault currents while preventing nuisance tripping in high-energy environments. The device carries CE marking and RoHS compliance, aligning with global safety and environmental standards, and fits within the Eaton Bussmann protection family for streamlined procurement. By leveraging a Class RK1, current-limiting profile, and a robust 350 A rating, it enables easier coordination with upstream protections and supports efficient maintenance workflows across manufacturing facilities and data centers.
Product Information
Extended Description
KTS-R-350 Eaton: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 350 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series KTS-R fuse
Catalog Number
KTS-R-350
UPC
051712417242
Product Length/Depth
11.63 in
Product Height
2 in
Product Width
2 in
Product Weight
2.4 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
350 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Number of elements
1
Packaging type
Standard
Class
Class RK1
Fuse indicator
Non-indicating
Special features
Knife blade
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTS-R 600 V Class RK1 fuse data sheet no. 1044
Feature: Fast-acting current-limiting RK1 fuse design. Benefit: Reduces fault energy and protects downstream equipment, enabling precise coordination in distribution panels and switchgear. Application: Industrial power distribution and control gear where short-circuit events must be capped quickly without unnecessary outages. Feature: 350 A ampacity with 200 kAIC at 600 V interrupt rating. Benefit: Supports high fault-current scenarios typical of motor feeders and large-capacity circuits, minimizing damage and downtime. Application: Large industrial feeders and motor control centers requiring high protection margins. Feature: Rejection-style, non-indicating knife blade fuse. Benefit: Safe, unambiguous insertion and replacement in busy panels, reducing maintenance time and human error. Application: Retrofit installations and new builds in high-availability facilities. Feature: 11.63 in length, 2 in width and height, 2.4 lb weight with single element construction. Benefit: Predictable footprint fits standard enclosures and simplifies cabinet design, enabling straightforward retrofits. Application: Equipment racks and distribution boards with limited space. Feature: CE Marked and RoHS compliant. Benefit: Supports global compliance programs and cross-border manufacturing strategies, easing sourcing and regulatory reporting. Application: Global manufacturing lines and multi-site projects seeking regulatory certainty.
Get a Quick Quote for a Eaton KTS-R-350
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTS-R-350?
Enquire Now
FAQs
Install the KTS-R-350 in standard RK1-compliant fuse blocks within electrical panels. Verify the panel enclosure supports a 11.63 in long, 2 in by 2 in footprint and that the single-element fuse aligns with the conductor size. Use proper lockout/tagout procedures and ensure the upstream protective device is coordinated to avoid nuisance trips.
Key specs include a 350 A amperage rating, 200 kAIC interrupt rating at 600 V, and a 600 V voltage rating. This fast-acting, current-limiting RK1 fuse is designed to protect power distribution feeders and switchgear while limiting fault energy to downstream equipment.
Yes. The 350 A rating and 200 kAIC interrupt capacity make the KTS-R-350 suitable for protecting high-inertia motor feeders and large distribution feeders. Its RK1 class and current-limiting characteristics help minimize mechanical and electrical stress during fault events, improving motor life and system reliability.
The KTS-R-350 is CE marked and RoHS compliant, supporting global regulatory requirements. For verification, users can consult Eaton’s RoHS tool and the Bussmann full-line catalogs to confirm compliance details for specific markets and product revisions.
The KTS-R-350’s current-limiting, high interrupt ratings, and knife blade design reduce fault energy and simplify replacement, lowering downtime and maintenance costs. Its compatibility with standard RK1 fuse blocks supports quick swaps and inventory consolidation, contributing to lower total cost of ownership in high-availability facilities.
