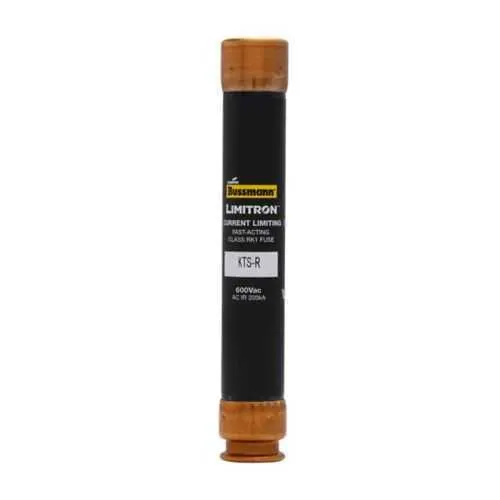

Eaton KTS-R-5 Fuse - Class RK1, 600 V, 5 A, Rejection Style
Part Number: KTS-R-5
Quick Summary
Eaton KTS-R-5 fuse provides fast-acting, current-limiting protection for industrial control panels and motor circuits. Nuisance trips and miscoordination in crowded enclosures drive maintenance costs and reduce uptime. This CE-marked device belongs to the RK1 class and delivers a high 200 kAIC interrupt rating at 600 V, ensuring safe disconnections under fault conditions. With a 5 A rating and a knife-blade design, it combines reliable performance with easy replacement in service cabinets. In practice, it supports selective coordination in complex electrical distributions and helps engineers meet safety standards while reducing spare parts expenditure.
Product Information
Extended Description
KTS-R-5 Eaton: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 5 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series KTS-R fuse
Catalog Number
KTS-R-5
UPC
051712416993
EAN
5027590446495
Product Length/Depth
5 in
Product Height
0.8 in
Product Width
0.8 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
5 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Number of elements
1
Packaging type
Standard
Class
Class RK1
Fuse indicator
Non-indicating
Special features
Knife blade
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTS-R 600 V Class RK1 fuse data sheet no. 1044
Feature → Business Impact → Application: The KTS-R-5 is a fast-acting, current-limiting Class RK1 fuse designed to minimize fault energy. This reduces arc flash risk and protects wiring, drivers, and control devices, lowering maintenance costs in industrial panels and machinery. Application-wise, it fits motor starters, control panels, and power distribution setups where rapid fault clearing is essential. Feature → Business Impact → Application: Its 200 kAIC interrupt rating at 600 Vac provides robust fault handling for high-energy events in manufacturing lines, feeders, and automation racks, enabling safer start-up sequences and improving system reliability. Feature → Business Impact → Application: A 5 A amperage rating supports precise coordination with upstream protection devices, reducing nuisance trips in partitioned circuits and preserving uptime. Feature → Business Impact → Application: The knife-blade, rejection-style design simplifies field replacement and minimizes installation errors, delivering faster maintenance cycles and lower downtime in busy electrical rooms. Feature → Business Impact → Application: CE marking demonstrates European safety compliance, while the RK1 class aligns with common industrial standards; together they streamline procurement, auditing, and cross-site standardization for global plants.
Get a Quick Quote for a Eaton KTS-R-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTS-R-5?
Enquire Now
FAQs
The KTS-R-5 is a 5 A, Class RK1, current-limiting fuse with a 5 inch length and 0.8 inch width/height profile. It uses a knife-blade, rejection-style design that simplifies correct orientation and replacement. Ensure adequate clearance and mounting in standard fuse holders, and confirm the panel’s 600 V maximum rating aligns with your system. Always verify that the enclosure supports the 0.15 lb weight and the preferred mounting method to avoid misalignment or contact with adjacent components.
Key specs include a 5 A amperage rating, 600 V voltage rating, and a 200 kAIC interrupt rating at 600 Vac. This combination provides fast fault clearing and high-energy fault tolerance, reducing probability of downstream damage. These figures support selective coordination in motor starter circuits and power distribution within industrial equipment, helping prevent unnecessary shutdowns during transient faults.
Yes. The KTS-R-5 is designed for 600 V systems, offering a high interrupt rating of 200 kAIC and a 5 A current rating. Its Class RK1 designation means it’s part of a robust family intended for fast-acting protection in industrial control panels, motor drives, and power distribution applications where quick fault clearance is essential.
The KTS-R-5 is CE marked, signaling compliance with European safety standards. It belongs to the RK1 fuse family, which is a widely adopted standard in industrial protection. Always check for site-specific regulatory requirements and ensure the overall panel design complies with applicable UL/CSA guidance where required.
The knife-blade, rejection-style design reduces installation errors and speeds field replacements, cutting downtime during fuse changes. Its high interrupt rating allows selective coordination, protecting critical upstream equipment while minimizing unnecessary outages. Over time, this translates to lower maintenance costs, improved uptime, and more predictable operating expenses for manufacturing lines and automation systems.
