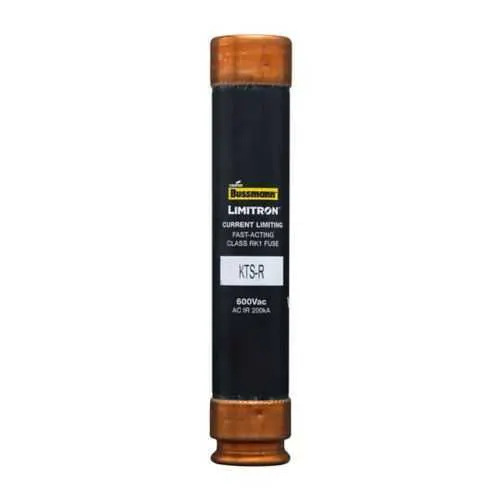

Eaton KTS-R-50 Fuse - 200 kAIC at 600 Vac RK1 Class
Part Number: KTS-R-50
Quick Summary
The KTS-R-50 fuse by Eaton is a fast-acting Class RK1 current-limiting device for protecting motor drives and distribution panels. Engineers often face nuisance tripping and unplanned downtime when protection devices aren’t fast or selective enough. CE Marked compliance and a Class RK1 designation support standardization across global plants, while the 200 kAIC interrupt rating at 600 Vac enables robust protection in high fault-current environments. This solution delivers reliable protection with ferrule-end terminations and a compact form factor, translating to easier procurement, faster installation, and improved total cost of ownership for industrial facilities.
Product Information
Extended Description
KTS-R-50 Eaton: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 50 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series KTS-R fuse
Catalog Number
KTS-R-50
UPC
051712417112
EAN
5027590446501
Product Length/Depth
5.5 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.35 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
50 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Material
Melamine glass tube
Number of elements
1
Packaging type
Standard
Class
Class RK1
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Ferrule design
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTS-R 600 V Class RK1 fuse data sheet no. 1044
Feature: Fast-acting, current-limiting design. Business Impact: Reduces fault energy, minimizes arc exposure, and protects downstream equipment, leading to higher system uptime. Application: Motor drives and power distribution panels in manufacturing environments. Feature: Class RK1 fuse with 50 A rating and 200 kAIC at 600 Vac. Business Impact: Supports safe operation under high fault currents, enabling selective protection and reduced collateral damage. Application: Industrial control circuits and MCCs where high fault currents are likely. Feature: Ferrule end x ferrule end connections. Business Impact: Easy, secure terminations that speed installation and improve vibration resistance. Application: Panel boards and field replacements in harsh environments. Feature: Melamine glass tube construction. Business Impact: Strong insulation and heat resistance extend service life in hot, dusty factory floors. Application: Environments with elevated ambient temperatures and mechanical stress. Feature: Compact 5.5 in length, 1.5 in width, 1.5 in height; 0.35 lb weight. Business Impact: Space-efficient form factor supports dense panel layouts and lower logistics costs. Application: Modern switchgear and compact control cabinets. Feature: CE Marked compliance and RK1 classification. Business Impact: Facilitates regulatory adherence and global procurement without requalification. Application: Global manufacturing sites needing standardized protection devices.
Get a Quick Quote for a Eaton KTS-R-50
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTS-R-50?
Enquire Now
FAQs
The KTS-R-50 is ideal for motor drives, control panels, and power distribution setups in industrial environments. With a 50 A rating and 200 kAIC interrupt capability at 600 Vac, it provides fast protection for high-current circuits and helps minimize downtime by preventing damage to upstream components.
The 200 kAIC interrupt rating means the fuse can safely interrupt extremely high fault currents, limiting energy and arc duration. This reduces collateral damage, protects downstream equipment, and improves overall system reliability in applications such as MCCs and heavy industrial feeders.
Yes. The KTS-R-50 uses ferrule-end x ferrule-end connections and is rated for 600 V systems. This combination simplifies installation, ensures secure terminations, and supports quick field replacements in panels and control cabinets.
The KTS-R-50 is CE Marked, aligning with essential safety and performance standards. This certification facilitates global deployment and regulatory acceptance, enabling engineers to meet compliance requirements across multiple sites without redesigns or additional approvals.
When replacing fuses, verify the 50 A rating and 200 kAIC interrupt capacity match system fault currents. Use ferrule-end terminations for reliable connections, ensure the device fits within the 5.5 in length and 1.5 in width space, and confirm the enclosure supports 600 Vac operation and Class RK1 protection.
