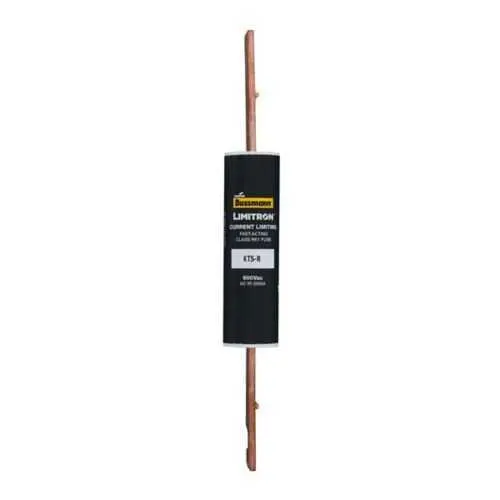

Eaton KTS-R-500 Fuse - 200 kAIC at 600 Vac
Part Number: KTS-R-500
Quick Summary
The Eaton KTS-R-500 fuse is a fast-acting, current-limiting protection device designed for power distribution and control panels. In many facilities, nuisance outages and equipment damage stem from short circuits and inrush events; this fuse mitigates those risks by quickly interrupting faults. CE marking and the Class RK1 fuse family provide reliable compliance and standardized interchangeability across industrial cabinets. Designed for scalable protection, it supports uptime and maintenance efficiency in high-demand electrical systems through proven performance and straightforward installation.
Product Information
Extended Description
KTS-R-500 Eaton: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 500 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series KTS-R fuse
Catalog Number
KTS-R-500
UPC
051712417273
Product Length/Depth
13.38 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
4.133 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
500 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Number of elements
1
Packaging type
Standard
Class
Class RK1
Fuse indicator
Non-indicating
Special features
Knife blade
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTS-R 600 V Class RK1 fuse data sheet no. 1044
Feature: 500 A amperage rating with a 200 kAIC interrupt rating at 600 Vac. Business Impact: High fault-current scenarios are quickly cleared, protecting downstream equipment and reducing fault energy that can damage motors, drives, and switchgear. Application: Ideal for motor control centers, large panelboards, and power distribution assemblies where heavy fault currents are possible. Feature: Class RK1, fast-acting design. Business Impact: Rapid fault clearance improves selective coordination with upstream devices, minimizes arc energy, and helps prevent collateral damage in critical lines. Application: Suitable for distribution panels and MCCs in manufacturing and process facilities. Feature: Rejection style with knife blade. Business Impact: Safer handling during installation and maintenance, with easier field replacement and reduced risk of mis-insertion. Application: Retrofit projects and service workloads in enclosed cabinets. Feature: Physical footprint and weight. Business Impact: The 13.38 in length and 2.5 in square footprint fit standard Bussmann holders and 19 in rack enclosures, simplifying panel layout and reducing installation time. Application: Enclosures and switchgear assemblies with limited space. Feature: Compliance and packaging. Business Impact: CE marking confirms regulatory alignment; standard packaging and a single-element design streamline inventory and ordering. Application: New builds and spare-stock programs across industrial plants.
Get a Quick Quote for a Eaton KTS-R-500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTS-R-500?
Enquire Now
FAQs
The KTS-R-500 is a single-element, knife-blade style fuse with a 13.38 inch length and a 2.5 by 2.5 inch footprint, weighing 4.133 lb. It is designed for standard Bussmann fuse holders and enclosure slots, enabling straightforward installation in 19 inch racks and similar power distribution cabinets. Ensure proper alignment with compatible fuse holders before service.
The KTS-R-500 provides a 500 A amperage rating with a 200 kAIC interrupt rating at 600 Vac. It is rated for 600 V systems and features a fast-acting, current-limiting design. These specs enable rapid fault clearing in high-current applications, reducing downtime and protecting downstream equipment in MCCs and panelboards.
Yes. With a 500 A rating and 200 kAIC interrupt capacity at 600 Vac, the KTS-R-500 is well-suited for motor control centers and power distribution panels where high fault currents may occur. Its Class RK1 classification and rapid fault clearance support reliable coordination and minimized arc energy in heavy electrical assemblies.
The KTS-R-500 is CE marked, indicating compliance with applicable European safety and performance standards. It is part of the Bussmann series Class RK1 family, offering standardized interchangeability across industrial cabinets. When confirming compliance for a specific project, reference the CE marking and relevant enclosure and panel requirements.
By providing fast-acting, current-limiting protection, the KTS-R-500 reduces fault energy and downstream damage, translating to less downtime and lower maintenance costs. Its sturdy, knife-blade design simplifies field replacement and service, improving maintenance efficiency and lifecycle cost in high-demand industrial environments.
