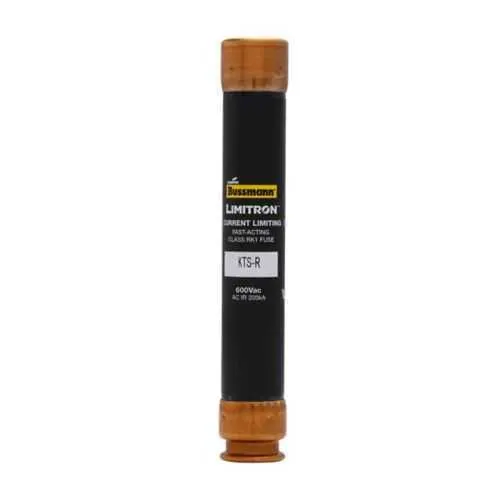

Eaton KTS-R-6 Fuse - Class RK1, 600V, 200 kAIC
Part Number: KTS-R-6
Quick Summary
The Eaton KTS-R-6 fuse provides fast-acting protection for control circuits in industrial equipment. It helps prevent downtime and equipment damage caused by short circuits and overloads in demanding environments. This device is CE marked and built as a Class RK1, with a 600 V rating and a 200 kAIC interrupt capacity to support safe, compliant installations. The ferrule-end design and Bussmann Series lineage deliver reliable installation, traceable performance data, and easier stocking for maintenance teams. For engineers and procurement, the KTS-R-6 pairs with standard low-voltage fuses to streamline panels, reduce spares, and meet both local and international specs.
Product Information
Extended Description
KTS-R-6 Eaton: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 6 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series KTS-R fuse
Catalog Number
KTS-R-6
UPC
051712417020
EAN
5027590446518
Product Length/Depth
5 in
Product Height
0.8 in
Product Width
0.8 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
6 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Material
Melamine glass tube
Number of elements
1
Packaging type
Standard
Class
Class RK1
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Ferrule design
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTS-R 600 V Class RK1 fuse data sheet no. 1044
Feature: Fast-acting, current-limiting protection in a Class RK1 fuse → Business Impact: Quickly clears faults to minimize arc flash risk and circuit damage, reducing unplanned downtime. Application: Ideal for control panels and machine interfaces requiring precise short-circuit clearing. Long-tail keywords: fast-acting fuse, RK1 protection, control panel safety.Feature: 6 A amperage rating with 600 V rating and 200 kAIC interrupt capacity → Business Impact: Sustains high fault currents without compromising upstream equipment, improving system reliability. Application: Safe for power-distribution in automated machinery and process gear. Long-tail keywords: 600 V fuse, high interrupt rating, current-limiting fuse.Feature: Ferrule end x ferrule end connection with ferrule design → Business Impact: Enables straightforward, robust mounting and secure connections, reducing install time and contact issues. Application: Stocked as a compatible component in panels using ferrule-end fuses. Long-tail keywords: ferrule-end fuse, reliable connections, panel wiring.Feature: Melamine glass tube construction and single-element design → Business Impact: Provides durable, reliable operation in industrial environments with stable performance over time. Application: Environments demanding robust fuse media and predictable characteristics. Long-tail keywords: melamine glass tube, single-element fuse, rugged fuse media.Feature: Rejection style design and CE compliance → Business Impact: Prevents incorrect fuse installation and supports regulatory adherence across EU facilities. Application: Critical safety and compliance in European and international plants. Long-tail keywords: rejection style fuse, CE marked fuse, regulatory compliance.Feature: Data sheet and catalog references from Bussmann series → Business Impact: Simplifies selection, ordering, and engineering validation through trusted documentation. Application: Engineers consult Bussmann data sheet no. 1044 for exact specifications. Long-tail keywords: Bussmann KTS-R data sheet, catalog KTS-R-6, technical documentation.
Get a Quick Quote for a Eaton KTS-R-6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTS-R-6?
Enquire Now
FAQs
Install the KTS-R-6 with ferrule-end connections matching the panel fuse holders. Verify compatibility with RK1-class fuses, confirm the 6 A rating and 600 V maximum voltage, and ensure the panel supports a ferrule-end design. Double-check the 5 in length and 0.8 in by 0.8 in cross-section for proper clearance and correct insertion without forcing the fuse.
Key specs include a 6 A amperage rating, 600 V voltage rating, and a 200 kAIC interrupt rating at 600 Vac. It is a Class RK1, fast-acting, current-limiting fuse with ferrule-end connections. These values determine suitable applications, fault-handling capability, and the protective coordination within control circuits.
Yes. The KTS-R-6 is designed for low-voltage control circuits in industrial equipment and is compatible with machine tools and control panels requiring reliable short-circuit protection. Its fast-acting, current-limiting characteristics help protect motors and drives, while the 200 kAIC interrupt rating supports high fault-current environments common in MCCs.
The KTS-R-6 carries CE marking, reflecting compliance with European safety directives applicable to electrical protection devices. The Class RK1 fuse designation indicates adherence to recognized standards for fuse class and performance. This supports regulatory requirements in many global facilities and helps ensure safe integration with other certified components.
The KTS-R-6 offers robust fault protection with high interrupt capability, reducing unplanned downtime and extending equipment life. Its ferrule-end design simplifies installation and maintenance, while standardization with Bussmann series data sheets streamlines procurement and spares management. Over time, these factors lower maintenance costs and improve overall system uptime.
