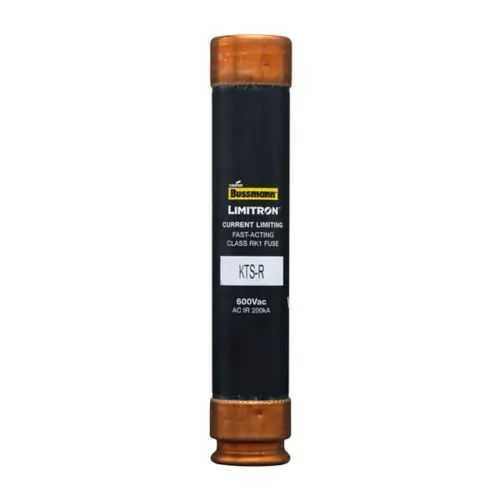

Eaton KTS-R-60 Fuse - 60 A, 200 kAIC Class RK1
Part Number: KTS-R-60
Quick Summary
The Eaton KTS-R-60 fuse is a fast-acting, current-limiting device designed for 60 A circuits in industrial control panels and motor-control applications. Engineers often struggle with nuisance tripping and limited panel space when selecting fuses for compact enclosures. This part is CE marked and built to the Class RK1 protection standard, offering a 200 kAIC interrupt rating at 600 V to safely withstand high fault currents. Its ferrule end connections and slim 5.5 inch length simplify installation in tight control cabinets while maintaining reliable protection. Consult the Bussmann series KTS-R data sheet no. 1044 to verify ratings, ferrule-end compatibility, and installation guidance, helping optimize panel uptime and regulatory compliance.
Product Information
Extended Description
KTS-R-60 Eaton: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 60 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series KTS-R fuse
Catalog Number
KTS-R-60
UPC
051712417129
Product Length/Depth
5.5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.33 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
60 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Material
Melamine glass tube
Number of elements
1
Packaging type
Standard
Class
Class RK1
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Ferrule design
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTS-R 600 V Class RK1 fuse data sheet no. 1044
60 A amperage rating enables precise overcurrent protection for standard control circuits, reducing nuisance trips and extending motor life. This directly improves machine uptime in motor-control panels and automated lines. 200 kAIC interrupt rating at 600 V ensures robust fault current handling, reducing arc energy and minimizing damage to upstream components. This is critical for power distribution in manufacturing lines, helping maintain safety margins and regulatory compliance. Class RK1, fast-acting, current-limiting protection minimizes fault duration, protecting conductors and devices in machine tools, conveyors, and presses where quick disconnection prevents collateral damage. Ferrule end x ferrule end construction simplifies wiring and secure terminations, reducing field labor and termination errors in control panels with standard ferrule terminals. Melamine glass tube construction provides rugged performance in harsh environments, while its compact 5.5 inch length enables dense panel layouts without compromising protection. CE marking and standard compatibility support straightforward BOM integration and global compliance in EU and non-EU markets.
Get a Quick Quote for a Eaton KTS-R-60
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTS-R-60?
Enquire Now
FAQs
The KTS-R-60 uses ferrule end x ferrule end connections, which match standard ferrule terminals used in many control panels. This design simplifies wire termination, reduces crimping errors, and speeds up installation in compact enclosures. Ensure conductor sizing aligns with the 60 A rating and verify data sheet guidance for torque specs and bus bar clearance.
Key specs include a 60 A amperage rating, 200 kAIC interrupt rating at 600 V, and a 5.5 in length with a 0.81 in width and height. The Class RK1 designation indicates fast-acting, current-limiting behavior. The device uses a melamine glass tube and ferrule terminations, and it is CE marked for compliance in EU markets.
Yes, the KTS-R-60 is designed for motor-control applications at 600 V with a 60 A rating and high interrupt capability, which helps protect motors and downstream circuits from shorts. Its robust ferrule terminations and compact form factor support reliable installation in space-constrained panels characteristic of automated manufacturing lines.
Comprehensive documentation includes the Bussmann series KTS-R data sheet no. 1044 and the Low Voltage Branch Circuit Fuse Chapter catalogs. These resources provide detailed electrical ratings, wiring guidelines, and installation recommendations. Additional compliance tools, such as the RoHS search tool, help verify regulatory alignment for EU markets.
The KTS-R-60 delivers reliable, fast protection reducing downtime from nuisance trips and catastrophic faults. Its current-limiting behavior minimizes arc energy, potentially extending insulation life and downstream component life. The ferrule-end design speeds field maintenance and replacements, contributing to lower labor costs and faster maintenance windows in high-throughput production lines.
