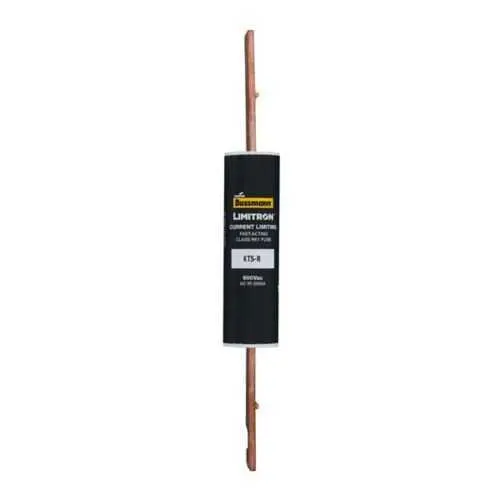

Eaton KTS-R-80 Fuse - Class RK1, 80A, 600V
Part Number: KTS-R-80
Quick Summary
Eaton KTS-R-80 Fuse protects electrical circuits with fast-acting, current-limiting protection for motor drives and switchgear. Industrial downtime from nuisance fuse trips is costly; this device offers dependable coordination and quick interruption to keep lines running. CE marked with a Class RK1 design and a 600 V rating supports reliable protection in industrial panels. Businesses gain uptime, predictable maintenance costs, and compliance confidence through proven performance and seamless integration. The 80 A rating and 200 kAIC interrupt rating ensure strong fault clearance for feeders and motor starters. Its compact 7.88 inch form and blade-end connections simplify retrofits and new panel builds alike, reducing install time.
Product Information
Extended Description
KTS-R-80 Eaton: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 80 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series KTS-R fuse
Catalog Number
KTS-R-80
UPC
051712417143
Product Length/Depth
7.88 in
Product Height
1 in
Product Width
1 in
Product Weight
0.5 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
80 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Material
Melamine glass tube
Number of elements
1
Packaging type
Standard
Class
Class RK1
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Special features
Ferrule design
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTS-R 600 V Class RK1 fuse data sheet no. 1044
Class RK1, fast-acting fuse design delivers targeted protection for motor controllers, reducing arc energy and enabling selective coordination. This directly lowers downstream damage and minimizes unplanned downtime in manufacturing lines and packaging facilities, while maintaining safety margins needed for critical drives. The current-limiting characteristic with a 200 kAIC interrupt rating at 600 Vac enhances equipment protection during short-circuit events and supports compliant protection schemes in switchgear and control panels. An 80 A rating paired with a single melamine glass tube provides predictable performance and simplifies fuse sizing for common motor-control circuits. Ferrule design with blade-end x blade-end connections offers robust terminations, enabling faster, more reliable installations in both retrofits and new builds. The fuse’s compact footprint and 0.5 lb weight maximize panel density while preserving ease of maintenance and serviceability. Non-indicating indicators reduce panel visual clutter, suitable for control rooms and automated environments, with CE Marking confirming international safety compliance and broad procurement acceptance.
Get a Quick Quote for a Eaton KTS-R-80
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTS-R-80?
Enquire Now
FAQs
The KTS-R-80 is designed for motor drives, feeders, and switchgear in industrial panels. It utilizes blade end x blade end connections and a ferrule design for reliable terminations, making it suitable for retrofits and new panel builds alike.
Key specs include an 80 A amperage rating, 600 V voltage rating, and a 200 kAIC interrupt rating at 600 Vac, all within the Class RK1 fast-acting fuse framework.
Yes, the KTS-R-80 is CE marked, aligning with European safety standards and facilitating procurement for regulated markets.
It features blade-end x blade-end connections and a ferrule design, with a compact 7.88 inch length and 1 inch by 1 inch cross-section to fit standard protection panels and streamline upgrades.
Its current-limiting action minimizes arc energy, improving fault clearance and protecting downstream equipment, which supports uptime, predictable maintenance, and lower service costs over the life of the installation.
