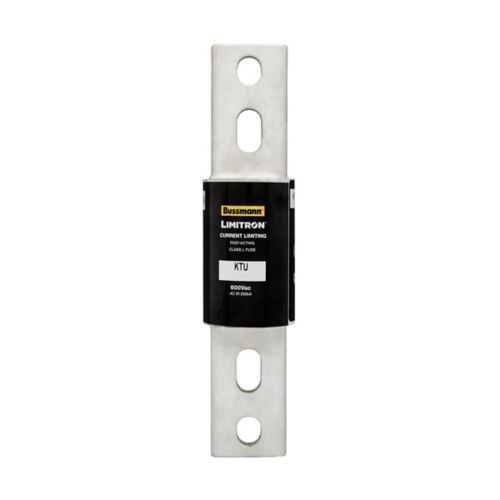

Eaton KTU-1200 fuse - Class L, 200 kAIC at 600 Vac
Part Number: KTU-1200
Quick Summary
KTU-1200 fuse by Eaton provides fast-acting branch-circuit protection for industrial electrical systems. Engineers often contend with nuisance trips and poor selectivity in feeders and motor circuits. It carries CE marking and RoHS compliance, aligning with global safety and environmental standards while following the Bussmann Series Class L protection guidelines. For panel builders and maintenance teams, this means reliable protection, easier bolt-in installation, and predictable lifecycle costs thanks to a robust current-limiting design and a high interruption rating. With a 1200 A rating and 200 kAIC interrupt capability at 600 Vac, it protects feeders against high fault currents while preserving uptime. Its bolted blade end connections and knife blade features simplify wiring and improve reliability. The device is compatible with standard Bussmann Series components for scalable panel design.
Product Information
Extended Description
KTU-1200 Eaton: Eaton Bussmann Series Class L fuse, KTU, fast-acting, current limiting fuse, 1200 A, bladable fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series KTU fuse
Catalog Number
KTU-1200
UPC
051712613125
Product Length/Depth
10.75 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
4.25 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
1200 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Material
Melamine glass tube Silver-plated end bells
Packaging type
Standard
Class
Class L
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Mounting method
Bolt
Special features
Knife blade
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTU Class L fuse data sheet No. 1010
Feature → Business Impact → Application: The KTU-1200 is a fast-acting, Class L current-limiting fuse designed to cleave faults quickly, reducing energy that can damage conductors and equipment. Business impact: minimized downtime and extended component life, enabling safer and more stable electrical systems in demanding environments. Application: ideal for branch circuits feeding motors and controllers in manufacturing lines where space is limited and reliability is critical.Feature → Business Impact → Application: It offers a high interrupt rating of 200 kAIC at 600 Vac, delivering robust fault handling even in systems with high fault currents. Business impact: improved system resilience, lower arc energy, and enhanced panel safety. Application: suitable for switchgear, feeders, and large motor protections in process and automation environments.Feature → Business Impact → Application: Amperage rating of 1200 A with bolted blade end x bolted blade end connections plus knife blade features for secure, durable mounting. Business impact: easier installation, reduced field wiring errors, and long-lived connections in harsh plants. Application: control panels and distribution blocks requiring dependable bolt-on protection devices.Feature → Business Impact → Application: CE Marking and RoHS compliance ensure regulatory alignment and environmental responsibility. Business impact: smoother procurement, fewer compliance risks, and alignment with corporate sustainability goals. Application: industrial panels deployed globally where standards adherence is essential and sourcing simplification matters.Feature → Business Impact → Application: Compatibility with standard Bussmann Series components supports scalable panel design and streamlined sourcing. Business impact: faster project timelines, lower total cost of ownership, and consistent performance across devices. Application: modular protection schemes in OEM equipment, cabinets, and line-start facilities.
Get a Quick Quote for a Eaton KTU-1200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTU-1200?
Enquire Now
FAQs
The KTU-1200 uses bolted blade end x bolted blade end connections and a bolt mounting method, which simplifies field wiring and ensures secure, vibration-resistant installation in industrial panels. Ensure compatible Bussmann Series components and verify panel clearance for the 2.5 in width and 10.75 in length dimensions. Use appropriate torque on blade endpoints to maintain reliable contact over time.
Key ratings include 1200 A amperage, 600 V voltage rating, and 200 kAIC interrupt rating at 600 Vac. The device is a Class L, current-limiting fuse with a melamine glass tube and silver-plated end bells. These specs enable selective protection for feeders and motors, while limiting fault energy to protect conductors and reduce downtime.
Yes. The fast-acting Class L design offers current-limiting protection for motor feeders, reducing arc flash energy and conductor damage during faults. Its 1200 A rating supports high-current motor circuits, and the bolted blade ends simplify mounting in standard control panels, ensuring reliable protection with straightforward maintenance.
The KTU-1200 is CE marked and RoHS compliant, aligning with European safety and environmental standards. These certifications help ensure regulatory compliance in many markets and facilitate procurement within multinational projects while supporting sustainable manufacturing practices.
The current-limiting design minimizes fault energy, potentially reducing conductor sizing and arc-related damage, which lowers long-term maintenance costs. Its compatibility with the Bussmann Series simplifies sourcing and spare parts, reducing downtime during replacements. The robust construction supports longer service life in rugged industrial environments.
