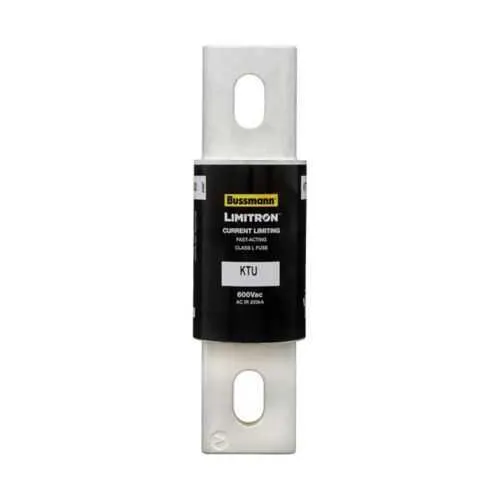

Eaton KTU-700 Fuse - Class L Fast-Acting 600V, 200 kAIC
Part Number: KTU-700
Quick Summary
The Eaton KTU-700 fuse provides fast-acting, current-limiting protection for electrical distribution panels. Engineers seek reliable protection that delivers high interrupt ratings without occupying excessive space or complicating maintenance. This Class L device is CE marked, RoHS compliant, and rated for 600 V with a 200 kAIC interrupt rating, supporting global compliance and robust safety margins. Its bolted blade end connections and bolt mounting simplify installation and future retrofits. Leveraging the Bussmann series ecosystem, it enables scalable protection across panel boards and machine controls, reducing spare part variety while ensuring interchangeability with standardized Bussmann KTU components.
Product Information
Extended Description
KTU-700 Eaton: Eaton Bussmann Series Class L fuse, KTU, fast-acting, current limiting fuse, 750 A, bladable fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series KTU fuse
Catalog Number
KTU-700
UPC
051712613033
EAN
5704057045605
Product Length/Depth
8.63 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
3.8 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
700 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Material
Melamine glass tube Silver-plated end bells
Packaging type
Standard
Class
Class L
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Mounting method
Bolt
Special features
Knife blade
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTU Class L fuse data sheet No. 1010
Feature: Class L fast-acting fuse provides precise fault energy control for power circuits. Business Impact: Lower arc energy and reduced insulation stress protect motors, transformers, and conductors, improving equipment uptime. Application: Best suited to electrical distribution panels and machine control circuits in manufacturing environments where reliable protection and safe shut-off are essential. Feature: 700 A amperage rating with a 200 kAIC interrupt rating at 600 V. Business Impact: Enables safe interruption of large feeders and motor loads, minimising system-wide fault energy and downtime. Application: Ideal for motor control centers, large panel boards, and feeders in industrial facilities. Feature: Bolted blade end x bolted blade end with bolt mounting for secure, vibration-resistant installation. Business Impact: Simplifies panel assembly, reduces field modification, and speeds commissioning. Application: OEM control cabinets and service panels where rapid, repeatable fuse insertion is required. Feature: Melamine glass tube with silver-plated end bells delivers durability and temperature resilience. Business Impact: Extends fuse life in harsh environments and maintains performance under load surges. Application: Industrial environments with elevated ambient temperatures and frequent fault events. Feature: CE Marked and RoHS compliant as standard attributes. Business Impact: Supports global regulatory compliance, supplier qualification, and easy cross-border deployment. Application: Multinational manufacturing lines and service centers. Feature: Standard packaging and blade-end geometry aligned with Bussmann series. Business Impact: Reduces spare parts variety, streamlines stocking, and improves interchangeability across sites. Application: Global maintenance programs and new-build projects using Eaton Bussmann KTU fuses.
Get a Quick Quote for a Eaton KTU-700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTU-700?
Enquire Now
FAQs
Install the KTU-700 by aligning the bolt mounting holes and securing the bolted blade ends with appropriate torque on the mounting hardware. Use the standard Bussmann family layout and ensure adequate clearance for expansion and cooling. Confirm proper orientation and holder fit within the panel, then perform a continuity check before energizing.
KTU-700 is rated for 700 A continuous, 600 V nominal, with a 200 kAIC short-circuit interrupt rating at 600 V. It’s a Class L, fast-acting, current-limiting fuse with bolted blade ends and non-indicating status. This combination provides robust fault protection and short-circuit energy control for large feeders, while simplifying coordination with upstream protection devices.
Yes. With a 700 A rating and 200 kAIC interrupt rating, the KTU-700 supports motor feeders and distribution circuits. The Class L design minimizes fault energy, enhancing protection for motors and drive systems. It is well-suited for OEM panel builds and machine control cabinets requiring reliable, scalable protection.
The KTU-700 is CE marked and RoHS compliant, ensuring global regulatory alignment for installations in European and RoHS-restricted markets. These certifications assist with audits, product approvals, and ongoing compliance across multinational manufacturing sites.
Using the KTU-700 within the Bussmann family provides interchangeability with other KTU fuses, standard packaging, and common end-blade geometry. This simplifies stocking, reduces spare parts variety, and accelerates commissioning across multiple panels and facilities while maintaining consistent protection performance.
