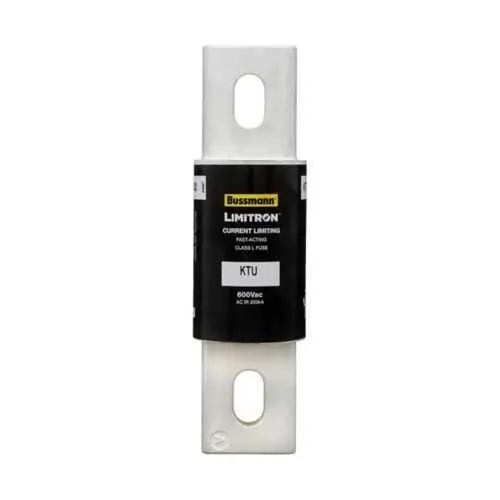

Eaton KTU-800 Fuse - Class L, 800A, 200 kAIC
Part Number: KTU-800
Quick Summary
Eaton KTU-800 fuse protects high-current industrial power circuits with fast-acting, current-limiting protection. Design engineers often struggle with nuisance trips and under- or over-protection when sizing fuses for drives and feeders. The device carries CE marking and RoHS compliance, supporting EU safety and environmental requirements, while offering a robust 600 V rating and a 200 kAIC interrupt capability. With bolted blade ends and bolt mounting, installation is straightforward in control panels and switchgear, reducing commissioning time and field errors. By selecting the KTU-800, facilities gain reliable protection, improved equipment longevity, and predictable maintenance intervals, aligning with reliability targets and total-cost-of-ownership goals.
Product Information
Extended Description
KTU-800 Eaton: Eaton Bussmann Series Class L fuse, KTU, fast-acting, current limiting fuse, 801 A, bladable fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series KTU fuse
Catalog Number
KTU-800
UPC
051712613088
Product Length/Depth
8.63 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
3.75 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
800 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Material
Silver-plated end bells Melamine glass tube
Packaging type
Standard
Class
Class L
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Mounting method
Bolt
Special features
Knife blade
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series KTU Class L fuse data sheet No. 1010
Class L design delivers fast current-limiting protection for high-current circuits. This reduces arc energy and collateral damage during faults, keeping essential equipment online longer. It’s well suited for drives, feeders, and motor control centers in manufacturing environments. 800 A rating with a 200 kAIC interrupt rating at 600 Vac ensures capable fault handling in heavy-load applications, minimizing equipment damage and downtime. The fuse’s robust construction—silver-plated end bells and a melamine glass tube—supports long service life in challenging environments and simplifies replacement. Bolt mounting and bolted blade end connections enable secure, vibration-resistant installation in control panels and switchgear with minimal field adjustments. CE marking and RoHS compliance help meet EU regulatory expectations while supporting environmental stewardship. The knife blade feature provides predictable opening characteristics for fast isolation of faults in critical power paths.
Get a Quick Quote for a Eaton KTU-800
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KTU-800?
Enquire Now
FAQs
Yes. The KTU-800 uses bolted blade end connections and a bolt mounting method, designed for secure installation in control panels and switchgear. Its dimensions (8.63 in x 2.5 in x 2.5 in) fit common enclosures while delivering 800 A protection and reliable fault isolation in 600 V systems.
The fuse provides an amperage rating of 800 A and an interrupt rating of 200 kAIC at 600 Vac, with a voltage rating of 600 V. It is a Class L, fast-acting current-limiting device suitable for high-current protection where quick fault clearance matters.
The KTU-800 is CE marked and RoHS compliant, ensuring EU safety certification and environmental compliance for assemblies in regulated markets.
It is ideal for industrial power distribution, motor control centers, and feeder protection in facilities requiring reliable high-current protection, reduced downtime, and predictable maintenance intervals.
As a non-indicating fuse with knife-blade features, routine electrical inspection and periodic replacement upon fault occurrence are recommended. Its robust build and standard packaging support straightforward field replacement, minimizing downtime during service windows.
