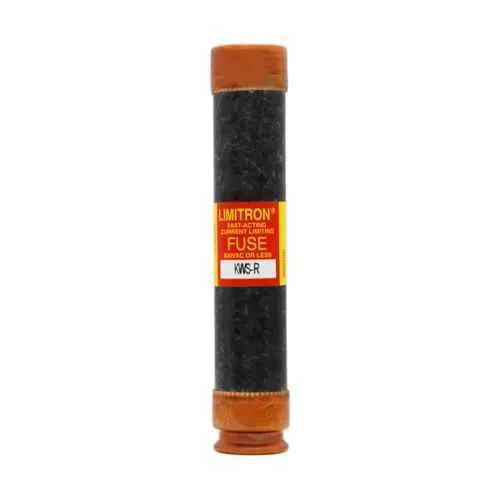

Eaton KWS-R-60 Fuse - Class RK1, 60 A, 600VAC/600VDC
Part Number: KWS-R-60
Quick Summary
The Eaton KWS-R-60 fuse is a 60 A protection device designed for solar PV systems, inverters, and panelboards. Engineers often grapple with selecting fuses that satisfy both DC and AC fault currents while fitting compact enclosures and budgets. This fuse meets CE Marked compliance and uses the RK1 class to deliver predictable response in mixed voltage environments, supporting reliable system protection. With a 100 kAIC at 600 Vdc and 200 kAIC at 600 Vac rating, it provides robust fault-current handling. The result is safer, more maintainable protection that aligns with PV system design goals, while integration with Bussmann series components enhances installation efficiency and long-term cost of ownership.
Product Information
Extended Description
KWS-R-60 Eaton: Eaton Bussmann series KWS-R fuse, Photovoltaic systems, Inverters, Panelboards, 60 A, Class RK1, Non-indicating, Blade end x blade end, 100 kAIC at 600 Vdc, 200 kAIC at 600 Vac, Standard
Product Name
Eaton Bussmann series KWS-R fuse
Catalog Number
KWS-R-60
UPC
051712658843
EAN
5027590243636
Product Length/Depth
0.81 in
Product Height
5.5 in
Product Width
0.81 in
Product Weight
0.33 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
60 A
Interrupt rating
100 kAIC at 600 Vdc 200 kAIC at 600 Vac
Voltage rating
600 Vac, 600 Vdc
Packaging type
Standard
Class
Class RK1
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KWS-R-60
Bussmann series 250Vac/dc KWN-R and 600Vac/dc KWS-R Data Sheet No. 10413
Bussmann series 250Vac/dc KWN-R and 600Vac/dc KWS-R Data Sheet No. 10413
Datasheet - FNQ-30
Feature: High interrupt rating across DC and AC circuits → Business Impact: Protects equipment and reduces downtime by quickly interrupting fault currents in photovoltaic and grid-tied applications → Application: PV systems, inverters, and panelboards that require reliable 600 V ratings. Feature: 60 A amperage rating → Business Impact: Prevents nuisance opening in normal operation while sustaining surge protection, lowering maintenance and replacement costs → Application: Commercial and industrial protection schemes for DC and AC feeders. Feature: Class RK1 fuse design → Business Impact: Standardized protection with compatibility across Bussmann catalog, simplifying procurement and stocking for service teams → Application: Retrofit projects and new installations using RK1-class protection. Feature: Blade end x blade end connection → Business Impact: Fast, tool-free installation improves service time and reduces installation errors → Application: Modular protection assemblies in compact enclosures. Feature: Non-indicating fuse indicator → Business Impact: Reduces false positives in indicator boards while relying on system diagnostics to detect faults, enhancing reliability → Application: Systems with integrated monitoring or periodic fault checks. Feature: 600 VAC / 600 VDC voltage ratings → Business Impact: Dual-voltage protection supports mixed technology deployments (inverters, DC buses, AC distribution) with a single fuse solution → Application: PV inverters, DC string protections, and AC distribution panels. Feature: 100 kAIC at 600 Vdc, 200 kAIC at 600 Vac → Business Impact: High fault-current withstand minimizes electrical stress and arc-flash risk during faults → Application: High-demand energy systems and utility-grade protection scenarios. Feature: CE Marked compliance → Business Impact: Simplifies regulatory acceptance across European installations, accelerating project sign-off → Application: International deployments and compliance-driven procurement.
Get a Quick Quote for a Eaton KWS-R-60
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KWS-R-60?
Enquire Now
FAQs
When deploying the KWS-R-60 in a solar PV setup, ensure blade end x blade end connections fit the bus or terminal blocks used by your panelboards. Verify the 600 Vdc and 600 Vac ratings align with your inverter and DC string voltages. Use CE-marked compliance as a baseline for European installations and pair with compatible Bussmann series components to simplify procurement and maintenance.
The KWS-R-60 is rated for 60 A with voltage ratings of 600 VAC and 600 Vdc. Its interrupt ratings are 100 kAIC at 600 Vdc and 200 kAIC at 600 Vac, enabling robust fault-current handling in mixed DC/AC environments typical of PV systems and auxiliary panels.
Yes. The KWS-R-60 is designed for photovoltaic inverters and panelboards, offering a Class RK1 design and blade-end connections that align with Bussmann series protection schemes. Its dual voltage capability and high interrupt ratings support both DC side protection and AC distribution, reducing the need for multiple fuse types in mixed-voltage installations.
The KWS-R-60 carries CE Marked compliance, indicating conformity with applicable European safety standards. While the product’s primary classification is RK1, the CE mark facilitates regulatory acceptance in EU markets and supports broader international procurement when paired with standard Bussmann series components.
The KWS-R-60’s high interrupt ratings and blade-end design streamline maintenance by allowing quick, predictable operation during faults and faster replacements. Its non-indicating status reduces false indicators in some configurations, while CE compliance supports faster project sign-off. Over time, this translates to reduced downtime, lower labor costs, and a lower total cost of ownership for PV protection schemes.
