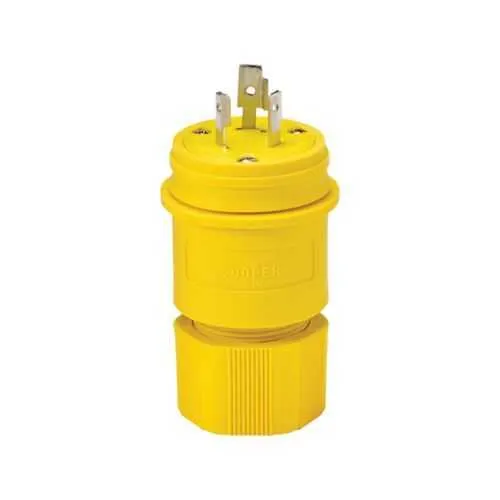

Eaton L1020PW Watertight locking plug - IP67 rated
Part Number: L1020PW
Quick Summary
The Eaton L1020PW watertight locking plug provides secure, back-wired connections for industrial equipment in wet environments, delivering reliable power in washdown and outdoor settings. Historically, moisture ingress and conduit moisture damage cause unexpected downtime; this receptacle is designed to resist water exposure and harsh cleaning cycles. It carries RoHS compliance, cULus listing, and IP67 protection, with industrial-grade materials to meet demanding electrical codes and operator safety expectations. For procurement and installation, its 125/250V rating, back-wiring method, and 0.43–1.15 in cord diameter compatibility simplify field wiring while reducing labor time. This combination supports lower total cost of ownership through longer service life and fewer callouts in demanding industrial environments.
Product Information
Extended Description
L1020PW Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 20A, Industrial, 125/250V, Back wiring, Yellow, Steel, Watertight, L10-20, Three-pole, Three-wire, non-grounding, Santoprene thermoplastic elastomeric, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L1020PW
UPC
040893641911
Product Length/Depth
5.42 in
Product Height
2.49 in
Product Width
2.49 in
Product Weight
0.25 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Amperage Rating
20A
Degree of protection
IP67
NEMA configuration
L10-20
Number Of Poles
Three-pole
Number of wires
Non-grounding 3
Torque rating
14-16 lbf-inch
Voltage rating
125/250 V
Environmental resistance
NEMA 6P NEMA 6 IP67 NEMA 4 NEMA 4X
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking plug
Feature: Watertight locking plug construction delivers moisture-resistant power connections that resist ingress in washdown and outdoor settings, reducing unplanned downtime. Business Impact: Improves equipment uptime and lowers maintenance costs by protecting critical connections. Application: Industrial power delivery for 20A circuits at 125/250V in harsh environments. Feature: Back wiring accepts #18-10 AWG conductors, enabling faster, more secure terminations. Business Impact: Shortens installation time and standardizes torque across teams. Application: Control panels, receptacle housings, and field terminations in manufacturing lines. Feature: Nickel-plated brass contacts and Santoprene elastomeric seal provide reliable contact and durable sealing. Business Impact: Extends service life and reduces corrosion-related failures under chemical exposure. Application: Wet environments, outdoor equipment, and food processing facilities. Feature: Nylon body with yellow color improves visibility and identification while meeting regulatory needs. Business Impact: Enhances safety checks and compliance during inspections. Application: New installations and retrofit projects in industrial facilities. Feature: Environmental and regulatory readiness including IP67, NEMA 4/4X/6/6P compatibility, RoHS, and cULus. Business Impact: Simplifies compliance workflows and mitigates risk across global sites. Application: Utilities, water treatment, and heavy industry environments.
Get a Quick Quote for a Eaton L1020PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1020PW?
Enquire Now
FAQs
The L1020PW provides dependable power delivery for industrial equipment in harsh, moisture-prone environments. It supports 20A circuits at 125/250V, uses a three-pole, three-wire non-grounding configuration (L10-20), and features IP67 protection with a durable yellow nylon housing and Santoprene seal. This makes it ideal for washdown areas, outdoor installations, and control panels requiring reliable mating and sealing.
Back wiring accepts #18-10 AWG conductors; remove terminal access, insert conductors into the appropriate poles, and tighten to the specified torque of 14–16 lbf-in. The nickel-plated brass contacts ensure reliable termination, while the Santoprene seal maintains IP67 protection. Verify polarity and secure seating before mating with a corresponding receptacle.
Yes. The L1020PW carries IP67 protection and RoHS compliance, along with cULus listing (NOM). It is designed for environmental resistance including NEMA 4, 4X, 6, and 6P scenarios, making it suitable for outdoor, washdown, and heavy industry installations. These certifications help meet regulatory requirements and reduce risk for systems exposed to moisture, dust, and chemical exposure.
Key installation considerations include wiring size (#18-10 AWG), back-wiring method, cord diameter compatibility (0.43–1.15 in), and a compact footprint (2.49 in width and height). The unit weighs about 0.25 lb, which simplifies handling in tight panels. Torque spec is 14–16 lbf-in for secure mating, and the yellow nylon housing with Santoprene seal supports reliable operation in wet environments.
Investing in the L1020PW yields measurable ROI through reduced maintenance labor, fewer moisture-related outages, and longer service life in harsh facilities. The rugged locking mechanism minimizes accidental disconnection, while back wiring simplifies field terminations for faster commissioning. With RoHS and cULus compliance, users can confidently meet safety codes and environmental requirements across manufacturing, food and beverage, and water-treatment applications.
