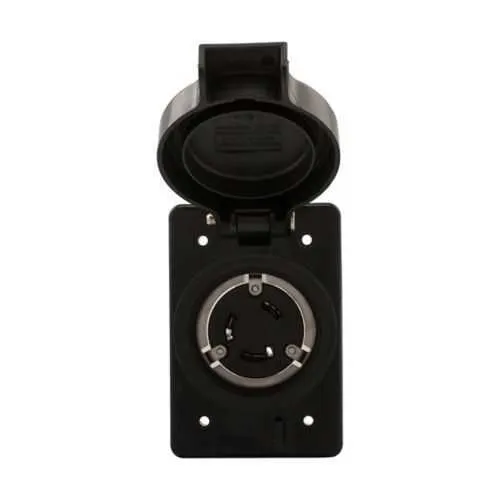

Eaton L1030RW Locking Receptacle - Watertight L10-30
Part Number: L1030RW
Quick Summary
The Eaton L1030RW watertight locking receptacle delivers secure 125/250 V power for industrial equipment. End users struggle with moisture intrusion and loose connections that cause downtime. RoHS compliant and cULus listed, with NEMA 4X/IP66 rated protection for outdoor and washdown environments. The locking mechanism provides vibration resistance, while back wiring simplifies field terminations for faster installation. This combination reduces maintenance, minimizes safety risks, and supports code-compliant, efficient power distribution across industrial facilities. With 30A current rating and 125/250V capability, it suits heavy equipment circuits and portable tools. Its NEMA L10-30 configuration ensures compatible matching receptacles in backup power, generator, and industrial panel setups.
Product Information
Extended Description
L1030RW Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 30A, Industrial, 125/250V, Back wiring, Yellow, Single, Watertight, L10-30, Three-pole, Three-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L1030RW
UPC
040893687728
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
0.86 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Amperage Rating
30A
NEMA configuration
L10-30
Number Of Poles
Three-pole
Number of wires
Non-grounding 3
Receptacle type
Locking
Voltage rating
125/250 V
Environmental resistance
NEMA 4X NEMA 3R IP66 NEMA 3 NEMA 4 NEMA 12
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Feature: Watertight locking receptacle design; Business Impact: Prevents moisture intrusion and accidental disconnections in harsh environments, reducing downtime and repair costs; Application: Outdoor enclosures, washdown areas, and vibrating industrial setups. The watertight seal combined with a locking mechanism delivers reliable power continuity in chemical and moisture-prone facilities.Feature: NEMA L10-30 three-pole three-wire configuration; Business Impact: Ensures proper phase alignment and safe, code-compliant connections for 30A circuits; Application: Generator hookups, portable power carts, and industrial feeders that require a dedicated 125/250 V supply. This compatibility minimizes miswired upgrades and project rework.Feature: Back wiring method supporting #14-8 AWG; Business Impact: Faster terminations, reduced field labor, and cleaner terminations with fewer loose strands; Application: On-site installs where time-to-power-up is critical, such as shift changes or maintenance outages. Accelerates commissioning without sacrificing reliability.Feature: Thermoplastic body with glass-filled nylon face and nickel-plated bronze contacts; Business Impact: Rugged, heat- and impact-resistant construction that maintains conductivity over time; Application: Harsh environments, including temperature variation and exposure to industrial chemicals. Lower replacement frequency reduces ownership costs.Feature: RoHS compliant and cULus listed; Environmental ratings include NEMA 4X and IP66; Business Impact: Ensures regulatory compliance and safe operation in outdoor or washdown locations; Application: Food & beverage, manufacturing floors, and outdoor equipment housings where durable, compliant components are required.Feature: Color-coded yellow housing; Business Impact: Quick identification in multi-circuit panels, reducing wiring errors and training time; Application: High-density electrical assemblies and modular plant layouts where visual cues speed up installation and maintenance.
Get a Quick Quote for a Eaton L1030RW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1030RW?
Enquire Now
FAQs
For installation, use back wiring with #14-8 AWG conductors and ensure the enclosure supports NEMA 4X/IP66 protection for water and dust resistance. The device is a three-pole, three-wire non-grounding receptacle rated for 30A at 125/250V, so plan wiring routes and enclosure sealing accordingly to maintain watertight integrity and code compliance.
The L1030RW features a watertight sealing design, a thermoplastic body, and nickel-plated bronze contacts for durability. It is RoHS compliant and cULus listed, with NEMA 4X and IP66 ratings, ensuring reliable operation in outdoor, washdown, and dusty environments while meeting regulatory requirements for industrial equipment.
Yes. The L1030RW uses the NEMA L10-30 configuration, a common three-pole, three-wire locking arrangement. It pairs with compatible L10-30 receptacles and generator connections, providing a secure, code-compliant interface for backup power or mobile generator applications in industrial facilities.
The receptacle is RoHS compliant and cULus listed, with NEMA 4X and IP66 environmental protection. These certifications matter because they verify chemical safety, electrical safety, and suitability for harsh environments, helping you meet regulatory requirements and reduce risk in plant installations or outdoor applications.
Investing in the L1030RW reduces downtime through reliable moisture protection and secure connections, lowers maintenance labor due to back-wiring simplicity, and minimizes field rework thanks to robust, pre-engineered compliance. Over a typical equipment lifecycle, those gains translate to faster commissioning, fewer outage incidents, and lower total cost of ownership.
