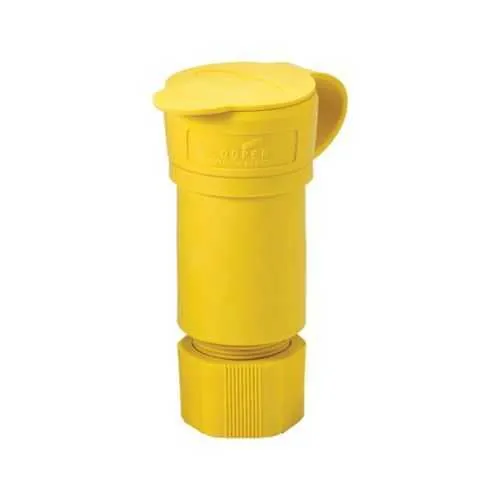

Eaton L1120CW Watertight Locking Connector - IP67
Part Number: L1120CW
Quick Summary
The Eaton L1120CW watertight locking connector is a rugged industrial power solution designed for reliable outdoor and harsh-environment applications. When field wiring is exposed to moisture, dust, or vibration, traditional connectors can fail, leading to downtime and maintenance costs. This model leverages an IP67 watertight seal and RoHS compliance to protect critical connections, while its L11-20 NEMA configuration and three-pole design ensure safe, standardized power delivery. Built for industrial environments, the L1120CW supports back wiring with #18-10 AWG, delivering robust performance with visibility (yellow) and quick-locking reliability, making it a strong fit for motors, conveyors, and other heavy equipment. For procurement teams, this translates to lower lifecycle costs and faster installation with existing equipment.
Product Information
Extended Description
L1120CW Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 20A, Industrial, 250V, Back, Yellow, Steel, Watertight, L11-20, Three-pole, Three-wire, Santoprene thermoplastic elastomeric, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
L1120CW
UPC
040893641959
Product Length/Depth
5.42 in
Product Height
2.49 in
Product Width
2.49 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Amperage Rating
20A
Degree of protection
IP67
NEMA configuration
L11-20
Number Of Poles
Three-pole
Number of wires
3
Voltage rating
250 V
Environmental resistance
Watertight
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Steel
Application
Industrial
Cord diameter
0.43-1.15 in
Material
Santoprene thermoplastic elastomeric
Special features
Watertight locking connector
Feature: IP67 watertight protection keeps moisture and dust out of critical power connections. Business Impact: Reduces corrosion and failure risk, extending equipment life and lowering maintenance costs. Application: Outdoor machines, wet environments, and dusty plants benefit from dependable power delivery. Feature: Three-pole, three-wire L11-20 configuration rated at 250 V and 20 A. Business Impact: Standardized, safe wiring for industrial power distribution, minimizing wiring errors and ensuring compatibility with common motor loads. Application: Industrial drives, pumps, and fans that require robust 250 V power.Feature: Back-wiring with #18-10 AWG conductors. Business Impact: Faster, secure terminations with proven insulation and strain relief, reducing on-site install time by engineers and technicians. Application: Field wiring on large installations where ease of termination matters.Feature: Santoprene elastomeric seal and steel contact construction. Business Impact: Superior chemical resistance and durability in vibration-heavy environments, lowering replacement costs. Application: Heavy equipment in manufacturing floors, mining, and processing plants.Feature: RoHS compliant with visible yellow housing for quick identification. Business Impact: Supports sustainability goals and reduces compliance risk while aiding quick visual verification during inspections. Application: any industrial installation needing clear, compliant connectivity and easy maintenance.Note: Each feature aligns with long-tail keywords such as watertight locking connector, industrial power connectivity, L11-20 configuration, back-wire terminals, and Arrow Hart locking devices to support search relevance without compromising technical accuracy.
Get a Quick Quote for a Eaton L1120CW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1120CW?
Enquire Now
FAQs
Yes. The L1120CW uses the L11-20 NEMA configuration and supports back wiring for #18-10 AWG conductors, enabling secure terminations with a straightforward installation flow. Its three-pole, 3-wire design matches common industrial power circuits, simplifying replacement and upgrades in equipment such as conveyors and motors.
The connector is rated for 250 V and 20 A, with IP67 protection for watertight reliability. RoHS compliant, it supports durable operation in dusty or wet environments. The three-pole configuration and steel contacts ensure robust current handling and mechanical integrity in industrial applications.
Ideal for outdoor installations, wet processing plants, and environments with heavy moisture exposure or vibration. Its yellow, high-visibility housing aids quick identification, while the watertight design minimizes ingress during exposure to rain, washdowns, or splashing fluids.
The L1120CW is RoHS compliant and features IP67 protection, aligning with industrial environmental and safety expectations. It uses a NEMA L11-20 configuration for standardized power connections and is suited for equipment requiring rugged, field-terminating connectors in harsh settings.
The watertight seal and rugged Santoprene elastomeric components reduce ingress and wear, lowering maintenance frequency and downtime. Back-wiring with secure terminations speeds field servicing, while robust materials (steel contacts, durable housing) translate into longer service life and lower replacement costs over the device’s operational life.
