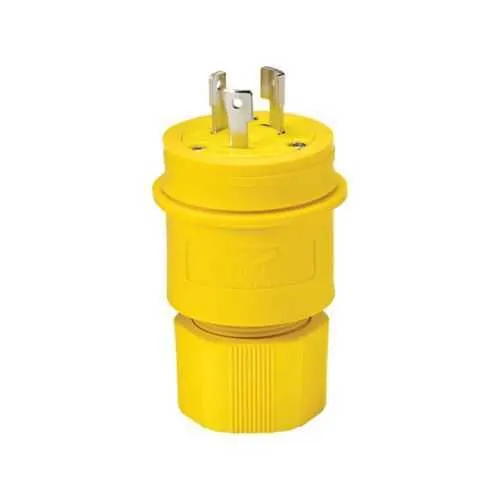

Eaton L1130PW Watertight Locking Plug Industrial IP67
Part Number: L1130PW
Quick Summary
The Eaton L1130PW watertight locking plug provides secure, IP67-rated connections for industrial equipment. In harsh facilities, back-wiring connectors must resist moisture, dust, and vibration while maintaining dependable power delivery. It is RoHS compliant, cULus listed NOM, and designed for NEMA L11-30 configurations to meet rigorous safety and performance standards in demanding environments. This combination reduces downtime by ensuring reliable terminations and longer service life, while supporting compliance reporting for maintenance audits. By leveraging a robust Santoprene seal and nickel-plated brass contacts, the L1130PW delivers durable electrical performance in motors, pumps, and other three-phase equipment, improving uptime and overall equipment effectiveness. For installers seeking a proven, field-friendly locking plug, this Eaton solution aligns with industrial back-wiring workflows and future upgrades.
Product Information
Extended Description
L1130PW Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 250V, Back wiring, Yellow, Steel, Watertight, L11-30, Three-pole, Three-wire, Santoprene, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L1130PW
UPC
040893642000
Product Length/Depth
5.42 in
Product Height
2.49 in
Product Width
2.49 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L11-30
Number Of Poles
Three-pole
Number of wires
Non-grounding 3
Voltage rating
3Ø 250 V
Environmental resistance
NEMA 4X NEMA 4 NEMA 6 IP67 NEMA 6P
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Feature → Business Impact → Application: The watertight locking design minimizes moisture ingress and vibration, directly reducing failure rates and maintenance costs for equipment exposed to washdowns and dust. This translates to longer mean time between failures (MTBF) and safer, more reliable motors and pumps in continuous-operation environments. Feature → Business Impact → Application: The 30A, 250V, three-pole L11-30 configuration enables clean, code-compliant power distribution for industrial controls, improving panel density and wiring clarity in manufacturing lines. Feature → Business Impact → Application: Nickel-plated brass contacts with a Santoprene seal deliver consistent conductivity and corrosion resistance across temperature swings, supporting uptime in harsh environments such as chemical processing or outdoor installations. Feature → Business Impact → Application: Back wiring compatibility with #18-10 AWG conductors simplifies field terminations, reduces installation time, and eases future upgrades, making it ideal for retrofits and new-builds in industrial facilities. Feature → Business Impact → Application: RoHS compliance and cULus NOM certification provide regulatory assurance and audit-ready documentation, reducing risk and accelerating procurement for global projects. Feature → Business Impact → Application: The rugged Nylon body and extra-heavy-duty industrial specification grade design withstands daily wear, vibration, and impact in demanding networks like material handling, pumping systems, and large motors, ensuring long service life.
Get a Quick Quote for a Eaton L1130PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1130PW?
Enquire Now
FAQs
The L1130PW is a three-pole, three-wire L11-30 configuration designed for 250 V systems and back wiring using #18-10 AWG conductors. It supports industrial equipment such as motors, pumps, and generators in environments requiring IP67 protection and rugged sealing. Ensure matching receptacles and compliance with NEMA L11-30 standards for proper mating.
Key specs include a 30A amperage rating, 250V voltage rating, and IP67 environmental protection. It uses a three-pole, three-wire non-grounding configuration and is intended for industrial applications with Santoprene sealing and nickel-plated brass contacts to ensure reliable conductivity in harsh conditions. The device supports back wiring with #18-10 AWG conductors.
Yes. The L1130PW features IP67 protection and is listed under cULus NOM with RoHS compliance, ensuring regulatory alignment for North American and global projects. Its NEMA L11-30 configuration plus NEMA 4X/4/6 compatibility makes it appropriate for wash-down areas, outdoor installations, and equipment exposed to dust, moisture, and mechanical vibration.
Back wiring simplifies field terminations by allowing conductors to enter from the rear, reducing wiring complexity and improving termination quality. With a cage-friendly #18-10 AWG range, installers gain faster, cleaner connections, easier inspection, and better strain-relief management, which translates to shorter commissioning times and lower likelihood of post-installation faults in industrial panels.
The L1130PW carries RoHS compliance and cULus listed NOM certification, providing regulatory confidence for global procurement. Its IP67 rating and L11-30/NEMA configuration support safe operation in harsh environments, meeting industrial safety standards and reducing risk during audits, conversions, and multi-site deployments.
