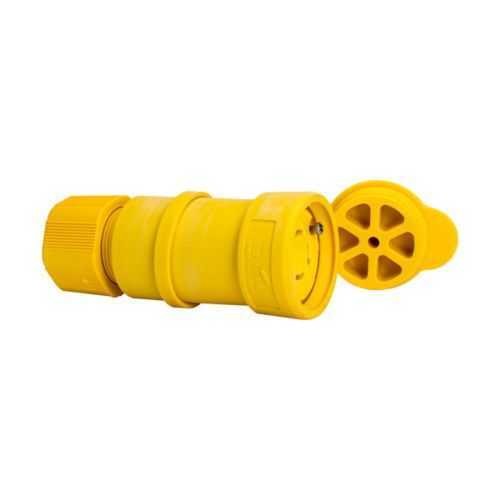

Eaton L1420CW Watertight locking connector - IP67
Part Number: L1420CW
Quick Summary
Eaton L1420CW watertight locking connector delivers secure, weatherproof power connections for industrial equipment and portable motors. In harsh facilities with moisture, dust, or outdoor exposure, field wiring mistakes and moisture intrusion can cause costly downtime. With CSA certified, UL Listed, NOM cULus Listed construction and IP67/NEMA-rated protection, this connector meets rigorous safety and reliability standards. The design emphasizes rugged industrial connectivity with a back-wiring capability and a 125/250 V, 20 A rating, making it suitable for demanding automation panels and motors. By combining field-serviceable terminations and a durable yellow nylon body, it reduces installation time and maintenance costs while improving overall equipment uptime and electrical safety in industrial environments.
Product Information
Extended Description
L1420CW Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 20A, Industrial, 125/250V, Back wiring, Yellow, Steel, Watertight, L14-20, Three-pole, Four-wire, Santoprene thermoplastic elastomeric, 0.36 to 0.84 in, IP67
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
L1420CW
UPC
040893642031
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
CSA certified UL Listed NOM cULus Listed
Amperage Rating
20A
Degree of protection
IP67
NEMA configuration
L14-20
Number Of Poles
Three-pole
Number of wires
4 Grounding
Torque rating
14-16 lbf-inch
Voltage rating
125/250 V
Environmental resistance
IP67 NEMA 6P NEMA 4 NEMA 4X NEMA 6
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.36-0.84 in
Design type
Watertight locking connector
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
Feature is watertight IP67 protection with NEMA ratings for harsh environments → Business impact includes reduced moisture ingress, corrosion resistance, and extended uptime in outdoor or washdown areas → Application: outdoor equipment, motors, pumps, and heavy-duty industrial panels. Feature back wiring for #18-10 AWG cables → Business impact is faster terminations, fewer field errors, and lower labor costs during panel wiring and retrofit projects → Application: quick-install electrical connectors for control cabinets and portable power distribution. Feature 20A at 125/250V rating with L14-20 configuration → Business impact: supports standard three-pole four-wire three-phase connections, enabling compliant power distribution in industrial automation. Feature nickel-plated brass contacts and Santoprene elastomeric seal → Business impact: improved contact reliability and long-term sealing against moisture and dust; Application: high-vibration environments. Feature nylon face/body and yellow color for visibility → Business impact: durable housing and easy identification in crowded panels; Application: maintenance and field installations. Feature RoHS compliance and multiple certifications (CSA, UL, NOM) → Business impact: regulatory compliance reduces risk and speeds procurement for engineering projects.
