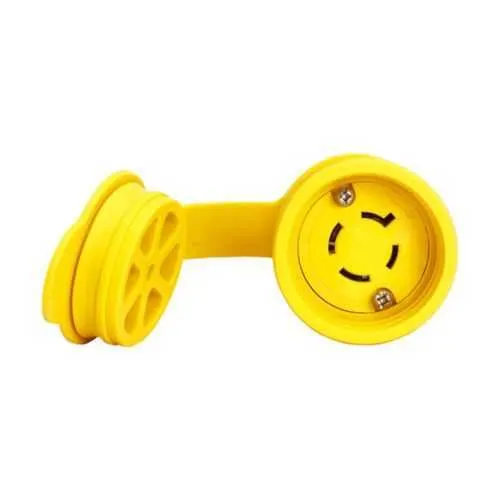

Eaton L1520CW Watertight Locking Connector - IP67
Part Number: L1520CW
Quick Summary
The Eaton Arrow Hart watertight locking connector provides reliable 3-phase power connections for industrial equipment in demanding environments. Engineers often grapple with moisture ingress, corrosion, and unreliable back-wiring in outdoor or washdown settings. With IP67 protection and certifications including UL/cULus, NOM, and CSA, this connector meets harsh environment standards while delivering durable performance. Designed for industrial applications, it supports back-wire installation for #18-10 AWG conductors and offers a secure, maintenance-friendly power interface, helping reduce downtime and total cost of ownership for critical plant equipment.
Product Information
Extended Description
L1520CW Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 20A, Industrial, 250V, Back wiring, Yellow, Steel, Watertight, L15-20, Three-pole, Four-wire, Santoprene thermoplastic elastomeric, 0.36 to 0.84 in, IP67
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
L1520CW
UPC
040893642055
Product Length/Depth
6.61 in
Product Height
3.82 in
Product Width
4.39 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
NOM CSA certified UL Listed cULus Listed
Amperage Rating
20A
Degree of protection
IP67
NEMA configuration
L15-20
Number Of Poles
Three-pole
Number of wires
4 Grounding
Torque rating
14-16 lbf-inch
Voltage rating
3Ø 250 V
Environmental resistance
NEMA 4 NEMA 4X NEMA 6 IP67 NEMA 6P
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.36-0.84 in
Design type
Standard locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
Feature: IP67-rated watertight performance - Business Impact: Protects connections from moisture, dust, and washdown environments, reducing failure risk and maintenance costs. Application: Outdoor motors, conveyors, and outdoor control panels in challenging climates. Feature: Three-pole, four-wire L15-20 configuration - Business Impact: Enables flexible, code-compliant 3Ø power delivery up to 250 V at 20 A, simplifying panel design and field installations. Application: Industrial power distribution across machines requiring robust single-point interconnections. Feature: Back wiring with #18-10 AWG - Business Impact: Streamlines field terminations, speeds installation, and reduces labor time while maintaining secure terminations. Application: Quick-rewire projects and equipment service tasks. Feature: Nylon body with nickel-plated brass contacts - Business Impact: Delivers high-strength, corrosion-resistant connections with long service life, lowering replacement costs. Application: Environments with exposure to moisture and conductive contaminants. Feature: Santoprene elastomeric seal - Business Impact: Provides gasketed, flexible sealing that maintains integrity across temperature cycles. Application: Washdown zones and humid facilities. Feature: RoHS Compliant with UL/CSA/NOM certifications - Business Impact: Ensures regulatory compliance, market acceptance, and safer supply chains. Application: Global industrial deployments requiring certified components. Feature: Torque rating 14-16 lbf-in - Business Impact: Ensures consistent, repeatable terminations, reducing rework and electrical faults. Application: Field installations and service maintaining stringent torque controls.
Get a Quick Quote for a Eaton L1520CW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1520CW?
Enquire Now
FAQs
The L1520CW supports back wiring with conductors in the #18-10 AWG range, enabling straightforward terminations in control panels or equipment enclosures. Ensure the device is de-energized, insert wires into the back-wire terminals to the specified torque (14-16 lbf-in), and verify solid mechanical and electrical contact. Use appropriate strain relief and verify polarity during final assembly.
The L1520CW provides a 20A amperage rating, 250V voltage rating, and a 3Ø configuration (L15-20). It features IP67 protection, suitable for immersion and washdown conditions, and aligns with RoHS, NOM, CSA, UL, and cULus standards. These specifications support reliable performance in harsh environments and improve equipment uptime.
Yes. With IP67 protection, NEMA 4/4X/6/6P compatibility, and watertight sealing, the L1520CW is designed for outdoor and washdown applications. The yellow nylon body and Santoprene elastomeric seal provide robustness against moisture, while nickel-plated brass contacts offer corrosion resistance. This makes it a dependable choice for outdoor motors and rugged process equipment.
The L1520CW is UL Listed, cULus Listed, NOM certified, and CSA certified, with RoHS compliance. These certifications ensure product safety, environmental compliance, and compatibility with regional electrical codes. For manufacturers and integrators, using certified components reduces regulatory risk, simplifies audits, and supports customer qualification in regulated markets.
The locking design provides secure, vibration-resistant connections, reducing intermittent faults. Back-wiring simplifies field terminations, speeding maintenance tasks. The watertight construction minimizes ingress-related failures, lowering downtime and replacement costs. Over the equipment lifecycle, reliability improvements translate to lower maintenance labor, fewer unplanned outages, and a faster return on investment.
