Eaton L1520PW Watertight locking plug - IP67 UL Listed
Part Number: L1520PW
Quick Summary

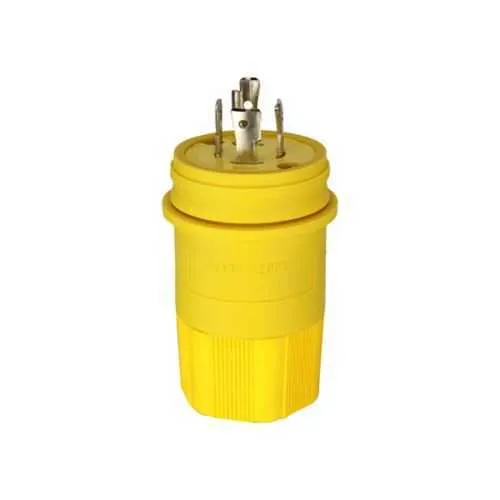

The Eaton L1520PW watertight locking plug provides rugged power connections for industrial equipment in challenging environments. In many projects, users struggle with ingress water, dust, and unreliable back-wiring that lead to costly downtime. UL Listed, cULus Listed, NOM, CSA certified, and RoHS compliant, this plug meets key regulatory requirements while supporting long-term reliability. This locking plug is designed for back wiring and works with #18-10 AWG conductors, delivering a secure connection even under vibration and load. Its IP67 rating and NEMA configuration L15-20 make it a versatile choice for harsh outdoor and industrial installations, while a yellow nylon body offers high visibility and durable service.
Product Information
Extended Description
L1520PW Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 20A, Industrial, 250V, Back wiring, Yellow, Steel, Watertight, L15-20, Three-pole, Four-wire, Santoprene, 0.36 to 0.84 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L1520PW
UPC
040893642048
Product Length/Depth
6 in
Product Height
3.5 in
Product Width
4 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
UL Listed NOM CSA certified cULus Listed
Amperage Rating
20A
Degree of protection
IP67
NEMA configuration
L15-20
Number Of Poles
Three-pole
Number of wires
4 Grounding
Torque rating
14-16 lbf-inch
Voltage rating
3Ø 250 V
Environmental resistance
NEMA 6 IP67 NEMA 6P NEMA 4 NEMA 4X
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.36-0.84 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
IP67 watertight protection minimizes water and dust ingress, lowering corrosion risk and unplanned maintenance. This translates to fewer service interruptions in outdoor or washdown environments, saving downtime and maintenance costs for conveyors, pumps, and processing lines. Three-pole, four-wire configuration (NEMA L15-20) with back wiring for #18-10 AWG simplifies field wiring, accelerating installation and reducing labor time on a busy plant floor. The torque rating of 14-16 lbf-in paired with nickel-plated brass contacts ensures consistent, reliable terminations under vibration and load, improving electrical reliability and reducing contact-resistance concerns. Santoprene sealing and a nylon body deliver durable moisture resistance without adding excessive weight, supporting easy handling in tight panels or elevated installations. RoHS compliance alongside UL Listed, cULus Listed, NOM, and CSA certifications helps with procurement and regulatory alignment while the yellow body enhances visibility for safe, quick identification in busy environments. Overall, these design choices enable longer service intervals, easier maintenance, and safer, compliant power distribution in industrial settings.
Get a Quick Quote for a Eaton L1520PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1520PW?
Enquire Now
FAQs
Begin by wiring the conductors per the device’s back-wire method, ensuring the wires are within the #18-10 AWG range. Insert each conductor into its designated terminal and tighten to the specified torque range of 14-16 lbf-in. Verify insulation integrity and secure the connector housing to prevent movement. Finally, test the connection for proper conductivity and observe IP67 sealing after reassembly to confirm watertight performance in the intended environment.
L1520PW is a 20A, 250V locking plug configured as a 3-pole, four-wire assembly (NEMA L15-20). It supports back wiring with #18-10 AWG conductors and provides IP67 ingress protection. The device uses nickel-plated brass contacts and a Santoprene seal inside a yellow nylon body, optimized for rugged industrial use with reliable torque and electrical performance.
Yes. The L1520PW is explicitly rated for NEMA L15-20 configurations and is designed for IP67 protection, making it suitable for outdoor and washdown environments. The locking mechanism, corrosion-resistant contacts, and robust materials further enhance suitability for rugged industrial applications where reliable locking power connections are required.
The L1520PW carries UL Listed, cULus Listed, NOM, CSA certified, and RoHS compliance. These certifications help ensure electrical safety, cross-border regulatory acceptance, and sustainability requirements. For procurement, these marks simplify supplier qualification and support compliance with industry standards in manufacturing, food processing, and harsh-duty environments.
The IP67 watertight design reduces ingress-related corrosion and failure, lowering maintenance frequency and downtime. Durable nickel-plated contacts, Santoprene seals, and a robust nylon body withstand vibration and environmental exposure, extending service life. While upfront cost may be higher than generic plugs, the reduced maintenance, fewer unplanned outages, and improved reliability contribute to a favorable total cost of ownership in demanding industrial settings.
