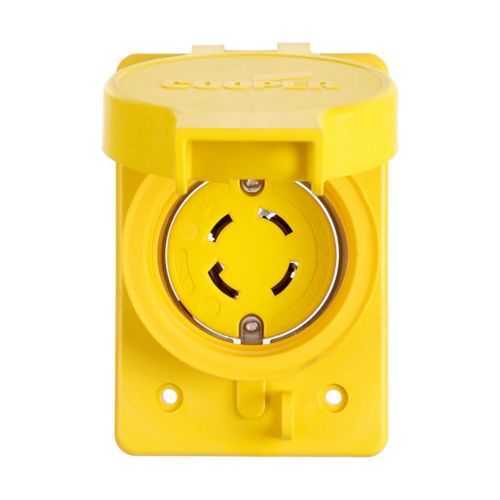

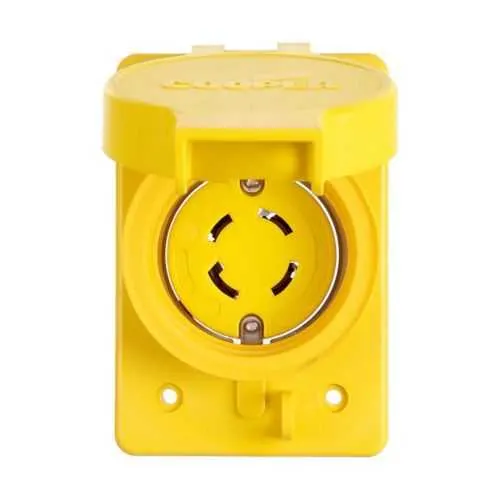

Eaton L1530RW Watertight Receptacle - L15-30 UL Listed
Part Number: L1530RW
Quick Summary
Eaton L1530RW watertight locking receptacle provides secure, weatherproof power connections for industrial equipment and processing lines. In tough environments, moisture, dust, and vibration threaten safety and uptime, so this back-wired, thermoplastic design protects terminations and reduces field wiring errors. Certified cULus Listed, UL Listed, NOM, and CSA, plus Federal Specifications W-C375, support global compliance and smooth audits in critical facilities. With 30A at 250V and a NEMA L15-30 configuration, the compact form factor and yellow housing simplify installation, maintenance, and stocking in automation and electrical distribution projects. Ideal for panel mounts and mobile equipment where quick plug-in connections and reliable actuation speed matter.
Product Information
Extended Description
L1530RW Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 30A, Industrial, 250V, Back wiring, Yellow, Single, Watertight, L15-30, Three-pole, Four-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L1530RW
UPC
040893687797
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
Federal Specifications Classification W-C375
Certifications
cULus Listed NOM CSA certified UL Listed
Amperage Rating
30A
NEMA configuration
L15-30
Number Of Poles
Three-pole
Number of wires
4 Grounding
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
3Ø 250 V
Environmental resistance
NEMA 3 NEMA 12 NEMA 3R NEMA 4 NEMA 4X IP66
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Feature → Business Impact → Application: The L1530RW uses a three-pole, four-wire locking configuration rated at 30A and 250V, enabling reliable three-phase power delivery to motors and distribution gear while ensuring secure connections in crowded panels and harsh environments. This supports reduced downtime and safer hand-offs during maintenance on manufacturing lines and processing equipment. Feature → Business Impact → Application: IP66-rated watertight sealing combined with NEMA 3, 3R, 4 and 4X protection minimizes ingress from washdowns, dust, and outdoor exposure, boosting uptime in food processing, chemical plants, and outdoor facilities. Feature → Business Impact → Application: Back wiring facilitates faster terminations and cleaner panel entries, lowering installation time and field error rates in control panels and enclosure corners. Feature → Business Impact → Application: Glass-filled nylon body with thermoplastic material delivers rugged performance in corrosive or high-impact environments, extending service life in heavy-duty industrial spaces. Feature → Business Impact → Application: Nickel-plated bronze contacts enhance conductivity and durability under vibration and frequent plugging cycles, improving connection reliability in conveyors, crushers, and pumps. Feature → Business Impact → Application: Clear torque guidelines (#10-14 AWG 14-16 lbf-in; #8 AWG 20 lbf-in) ensure proper termination, protecting conductors and reducing rework in panel installations. Certifications and compliance support audits and regulatory requirements, reinforcing confidence for engineers, procurement, and compliance teams during installation planning and inspections.
Get a Quick Quote for a Eaton L1530RW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1530RW?
Enquire Now
FAQs
The L1530RW supports back wiring, enabling simpler termination and a cleaner panel approach. This reduces wiring errors and speeds up installation in control panels and power distribution enclosures, especially when space is limited or multiple conductors are routed in tight channeling.
Yes. The receptacle is rated for 3Ø 250V, 30A and configured as NEMA L15-30 with three poles and four wires (including ground), making it suitable for multi-phase equipment, motors, and distribution circuits in industrial settings.
The L1530RW is cULus Listed, UL Listed, NOM, and CSA certified and meets Federal Specifications W-C375. These certifications support regulatory compliance, reduce audit risk, and provide confidence for global installations in manufacturing plants and facilities infrastructure.
Watertight sealing with IP66/NEMA ratings protects terminations against water, dust, and washdown exposure, minimizing ingress and corrosion. This keeps connections reliable in wash-down areas, outdoor installations, and chemical processing environments, reducing maintenance cycles and unexpected outages.
The receptacle measures about 6.75 in length, 4 in height, and 4.25 in width, weighing approximately 1.025 lb. These compact dimensions, combined with back wiring and locking contact, simplify mounting and service access in crowded panels and equipment cabinets.
