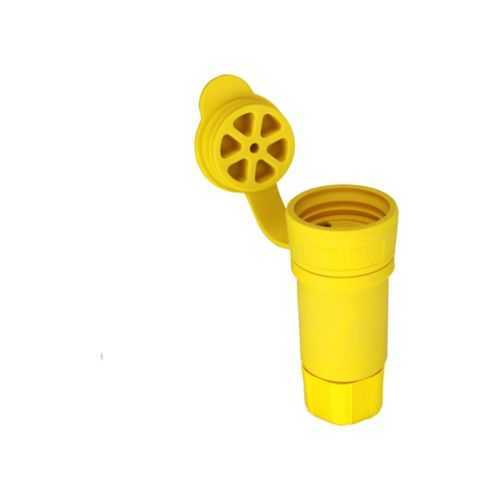

Eaton L1620CW Watertight Locking Connector - IP67
Part Number: L1620CW
Quick Summary
The Eaton L1620CW watertight locking connector delivers reliable, field-ready connections for industrial equipment in harsh environments, including 480V three-pole, four-wire configurations. Moisture, dust, and washdown exposure can cause corrosion, downtime, and expensive maintenance if seals fail. It carries IP67 ingress protection and RoHS compliance, supporting rugged outdoor or factory-floor installations with regulatory confidence and safer long-term operation. Back wiring and a compact, yellow Santoprene body enable quick terminations and clear visibility, reducing installation time and miswiring risk in tight panels. The combination of these features translates to lower lifecycle costs and improved uptime for critical machinery in automation and process facilities.
Product Information
Extended Description
L1620CW Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 20A, Industrial, 480V, Back, Yellow, Steel, Watertight, L16-20, Three-pole, Four-wire, Santoprene thermoplastic elastomeric, 0.36 to 0.84 in, IP67
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
L1620CW
UPC
040893642079
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
0.66 lb
Compliances
RoHS Compliant
Amperage Rating
20A
Degree of protection
IP67
NEMA configuration
L16-20
Number Of Poles
Three-pole
Number of wires
4
Torque rating
14-16 lbf-inch
Voltage rating
480 V
Environmental resistance
Watertight
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Steel
Application
Industrial
Cord diameter
0.36-0.84 in
Material
Santoprene thermoplastic elastomeric
Special features
Watertight locking connector
The watertight locking design ensures a secure, moisture-protected connection. This reduces corrosion risk and unplanned downtime in washdown and outdoor environments. Ideal for industrial equipment like pumps and conveyors operating in harsh environments. Compatibility and wiring are optimized for field installs with back wiring supporting quick terminations; torque specifications of 14-16 lbf-in promote reliable contact pressure and long-term performance. This enables faster terminations with consistent electrical performance, reducing commissioning time on new lines and minimizing rework. Material and durability are enhanced by a Santoprene thermoplastic elastomeric body in yellow, offering chemical resistance and high visibility to operators in cluttered or hazardous industrial spaces. Steel contacts provide robust electrical performance for industrial duty and a longer service life in demanding environments. Electrical ratings of 20A at 480V and the L16-20 NEMA configuration meet standard industrial needs while maintaining a compact footprint for panel mounting and serviceability. Compliance and lifecycle advantages come from RoHS compliance and a proven watertight seal, reducing regulatory risk and maintenance costs. Industry context emphasizes cord diameter range 0.36-0.84 in to accommodate a variety of cable glands, ensuring versatility across multiple machines and lines.
