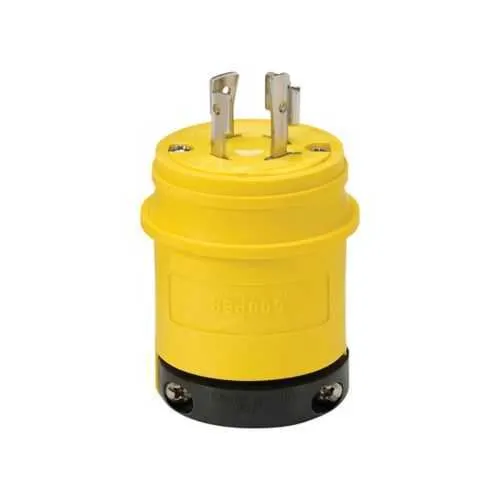

Eaton L1620PW Watertight Locking Plug Industrial - IP67
Part Number: L1620PW
Quick Summary
The Eaton L1620PW watertight locking plug is designed to deliver secure, back-wired connections for industrial equipment in harsh environments. Many facilities struggle with moisture, corrosion, and unplanned downtime when plugs fail to seal or twist loose during operation. This unit meets IP67 for watertight performance, is cULus Listed for electrical safety, and is RoHS compliant for environmental responsibility, giving spec-sensitive buyers the confidence needed for critical installations. Its extra-heavy-duty industrial specification grade and nickel-plated brass contacts deliver reliable conductivity, while the back-wiring method simplifies field wiring and maintenance. By pairing robust material selection with precise torque and IP67 protection, it supports safer, faster installs and long-term cost reduction in demanding manufacturing and process environments.
Product Information
Extended Description
L1620PW Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 20A, Industrial, 480V, Back wiring, Yellow, Steel, Watertight, L16-20, Three-pole, Four-wire, Santoprene, 0.36 to 0.84 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L1620PW
UPC
040893642062
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
20A
Degree of protection
IP67
NEMA configuration
L16-20
Number Of Poles
Three-pole
Number of wires
4 Grounding
Torque rating
14-16 lbf-inch
Voltage rating
3Ø 480 V
Environmental resistance
NEMA 6 NEMA 4 NEMA 6P NEMA 4X IP67
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.36-0.84 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Watertight construction with IP67 sealing reduces moisture ingress and guards against washdown fluids, lengthening service life and reducing unplanned downtime in harsh environments. This translates to fewer service interruptions, lower maintenance costs, and improved equipment availability for continuous production lines in food processing, chemical plants, and water treatment facilities. Back-wiring compatibility enables faster, mistake-free field connections, decreasing installation labor and field error rates while improving reproducibility across panels and enclosures. The three-pole, four-wire L16-20 configuration supports standard three-phase motors and drives on 480 V systems, streamlining compatibility with existing plant infrastructure and spare part inventories. Nickel-plated brass contacts and Santoprene seals deliver strong conductivity with corrosion resistance, supporting reliable performance under high vibration and temperature cycling. The nylon body and yellow color aid identification and durability, while the 14-16 lbf-in torque rating ensures robust mating and retention in demanding environments. Compliance with RoHS and cULus enhances regulatory confidence for global deployments and reduces risk in cross-border projects.
Get a Quick Quote for a Eaton L1620PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1620PW?
Enquire Now
FAQs
The L1620PW is designed for industrial control panels and washdown areas, featuring back-wiring for straightforward field wiring, a three-pole four-wire L16-20 configuration, and a cord diameter range of 0.36 to 0.84 inches. It handles up to 20A at 480V, making it ideal for motors, pumps, and conveyors in harsh environments while maintaining secure, compliant connections.
IP67 protection means the connector can withstand immersion in water up to a depth of one meter for 30 minutes and resist dust ingress. In practice, this seals against moisture and cleaning solvents, reduces corrosion risk, and minimizes unexpected downtime in food processing, chemical plants, and other facilities with frequent washing or high humidity.
Yes. The L1620PW is RoHS compliant and cULus listed, ensuring reduced hazardous substance usage and safety certification for United States and Canadian markets. This supports global deployment strategies, supplier quality programs, and regulatory adherence across multinational projects without sacrificing electrical performance.
The device is built as a three-pole, four-wire locking plug rated for 480 V three-phase systems, aligned with the L16-20 NEMA configuration. This compatibility simplifies motor and drive connections, reduces voltage mismatch risks, and enables seamless integration with existing plant electrical foundations and spare-part inventories.
Maintenance benefits include minimized wiring errors due to back-wiring, reduced seal degradation from robust IP67 protection, and longer service intervals thanks to corrosion-resistant contacts and durable Santoprene sealing. ROI gains arise from lower downtime, faster commissioning, lower maintenance labor, and safer, compliant operation across high-demand motor and conveyor applications.
