Eaton L1620RW Watertight Locking Receptacle - IP66
Part Number: L1620RW
Quick Summary
The Eaton L1620RW watertight locking receptacle is designed to provide secure, moisture-resistant power connections for industrial equipment. In harsh environments, moisture intrusion and dust can cause corrosion and unexpected downtime, while field wiring mistakes add cost. It carries RoHS compliance, cULus listing, and IP66/NEMA protection up to 4X, ensuring global reliability and safety. These features support faster installation and longer service life for automated lines and mobile equipment, with a locking, back-wired design that reduces maintenance overhead. By combining rugged materials with clear specification alignment, it helps engineers meet both performance and compliance goals.
Product Information
Extended Description

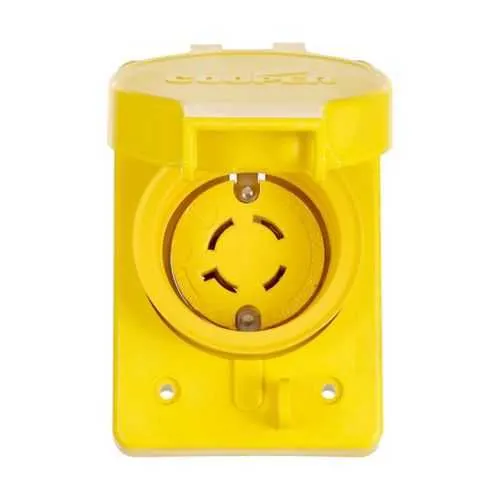

L1620RW Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 20A, Industrial, 480V, Back wiring, Yellow, Single, Watertight, L16-20, Three-pole, Four-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L1620RW
UPC
040893687773
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Amperage Rating
20A
NEMA configuration
L16-20
Number Of Poles
Three-pole
Number of wires
4 Grounding
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
3Ø 480 V
Environmental resistance
IP66 NEMA 3R NEMA 4X NEMA 4 NEMA 3 NEMA 12
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Back wiring and a four-wire configuration streamline field terminations, reducing installation time on crowded control panels and in fixed installations. This translates to lower labor costs and fewer wiring mistakes in high-volume manufacturing and packaging lines where uptime matters. The L1620RW is designed for 3Ø 480V power distribution in industrial facilities, delivering reliable connections for motors, drives, and heavy-duty loads. The locking receptacle design minimizes accidental disconnections in vibration-prone equipment such as conveyors, crushers, and mobile tools. This results in fewer outages, safer startup sequences, and improved mean time between failures (MTBF). The device supports back wiring with #14-8 AWG allowed, including torque specs for #10-14 AWG and #8 AWG to ensure proper clamping. Rugged housing materials—glass-filled nylon body and thermoplastic face—resist impact, moisture, and chemical exposure common in plant floors and outdoor installations. Nickel-plated bronze contacts maintain low contact resistance over temperature swings, delivering consistent performance and reduced energy loss. IP66 environmental resistance along with NEMA 3R, 4X, 4, 3, and 12 ratings provides protection against water, dust, and washdowns while maintaining electrical integrity in demanding applications. RoHS compliance and cULus listing enable global deployment across facilities and supply chains, while the color coding (yellow) enhances visibility during installation and testing. The combination of compact form, back-wiring, and rugged construction supports fast retrofits and scalable integration into existing industrial power distribution networks.
