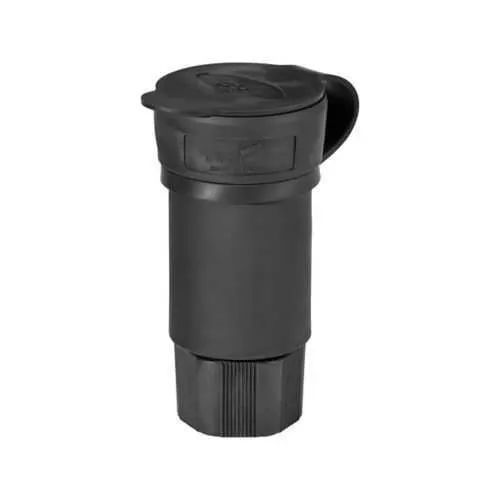

Eaton L1630CWBK Watertight Locking Connector - IP67
Part Number: L1630CWBK
Quick Summary
The Eaton Arrow Hart watertight locking connector provides a rugged, IP67-rated power connection for industrial equipment. Engineers often struggle with moisture ingress and miswiring in harsh environments. This model is RoHS compliant and cULus listed, with IP67 protection and a L16-30 three-pole, four-wire configuration. Back-wiring capability for #18-10 AWG cables simplifies field terminations, while a 480V, 30A rating supports common industrial motors. By combining durable Santoprene elastomeric seals, a nylon face/body, and nickel-plated brass contacts, it delivers reliable performance with reduced field maintenance and downtime.
Product Information
Extended Description
L1630CWBK Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 30A, Industrial, 480V, Back wiring, Black, Steel, Watertight, L16-30, Three-pole, Four-wire, Santoprene thermoplastic elastomeric, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
L1630CWBK
UPC
032664709067
Product Length/Depth
6.38 in
Product Height
3.82 in
Product Width
4.4 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L16-30
Number Of Poles
Three-pole
Number of wires
Grounding 4
Torque rating
20 lbf-inch
Voltage rating
3Ø 480 V
Environmental resistance
NEMA 4 NEMA 4X NEMA 6P IP67 NEMA 6
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking connector
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
Watertight protection and IP67/NEMA-rated construction deliver reliable operation in wet or dusty environments, reducing corrosion risk and unplanned downtime while enabling consistent performance in outdoor or washdown areas. This 30A, 480V L16-30 configuration supports three-pole, four-wire loads, making it suitable for industrial motors and power distribution feeds. Back-wiring for #18-10 AWG wires streamlines installation, minimizes termination points, and speeds commissioning in new builds or retrofits. The locking mechanism provides a secure, vibration-resistant connection that prevents accidental disconnections in high-vibration environments found in manufacturing floors. Nickel-plated brass contacts ensure durable conductivity and corrosion resistance, while Santoprene elastomeric seals extend service life in harsh conditions. The nylon body keeps the assembly lightweight yet robust, ideal for field service and maintenance crews, with a 20 lbf-inch torque rating guiding consistent tightening across crews. Compatibility with standard L16-30 mating configurations supports a wide range of Eaton and third-party accessories, reducing total cost of ownership by simplifying spare parts and training.
Get a Quick Quote for a Eaton L1630CWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1630CWBK?
Enquire Now
FAQs
Power must be disconnected before wiring. Use back-wiring terminals designed for #18-10 AWG. Strip insulation to the appropriate length, insert conductors fully, and tighten to the specified torque of 20 lbf-inch. Verify a secure seal and correct polarity before mating with the corresponding receptacle. This approach speeds field terminations while maintaining reliability.
The L1630CWBK is RoHS compliant and cULus listed, with an IP67 ingress protection rating and a NEMA L16-30 configuration. It supports 30A at 480V and provides a three-pole, four-wire setup, making it suitable for industrial motors and power distribution in harsh environments.
Yes. With IP67 protection and NEMA 4/4X/6P/6 compatibility, the connector resists water ingress and corrosion in outdoor, washdown, and harsh industrial settings. Its watertight sealing and locking mechanism help maintain reliable connections despite vibration, moisture, or dust.
The locking mechanism prevents accidental disconnects in vibration-prone applications, enhancing safety and uptime. Combined with a watertight seal, nickel-plated brass contacts, and a rugged nylon body, it delivers a durable, high-performance connection suitable for demanding industrial environments.
Regularly inspect the locking latch, seals, and contacts for wear or damage. Ensure the torque on the connection remains at about 20 lbf-in and confirm that the cord grip accommodates #18-10 AWG. Periodic cleaning and moisture checks help preserve IP67 integrity and prolong service life in challenging environments.
